Installation Procedure

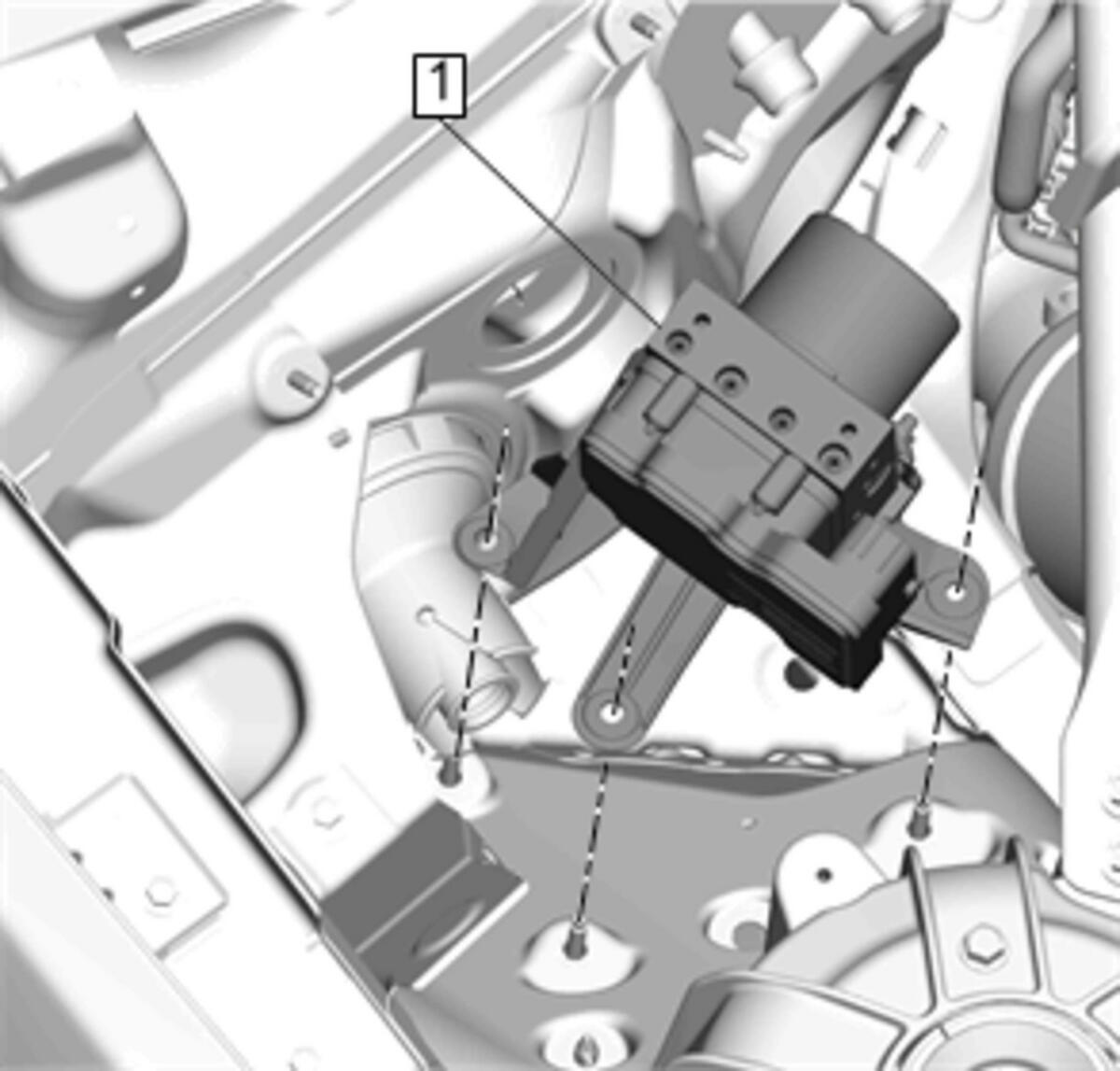

    Fig 1: Brake Pressure Modulator Valve Assembly
    GM4161889Courtesy of GENERAL MOTORS COMPANY
  1. Install Brake Pressure Modulator Valve Assembly (1)

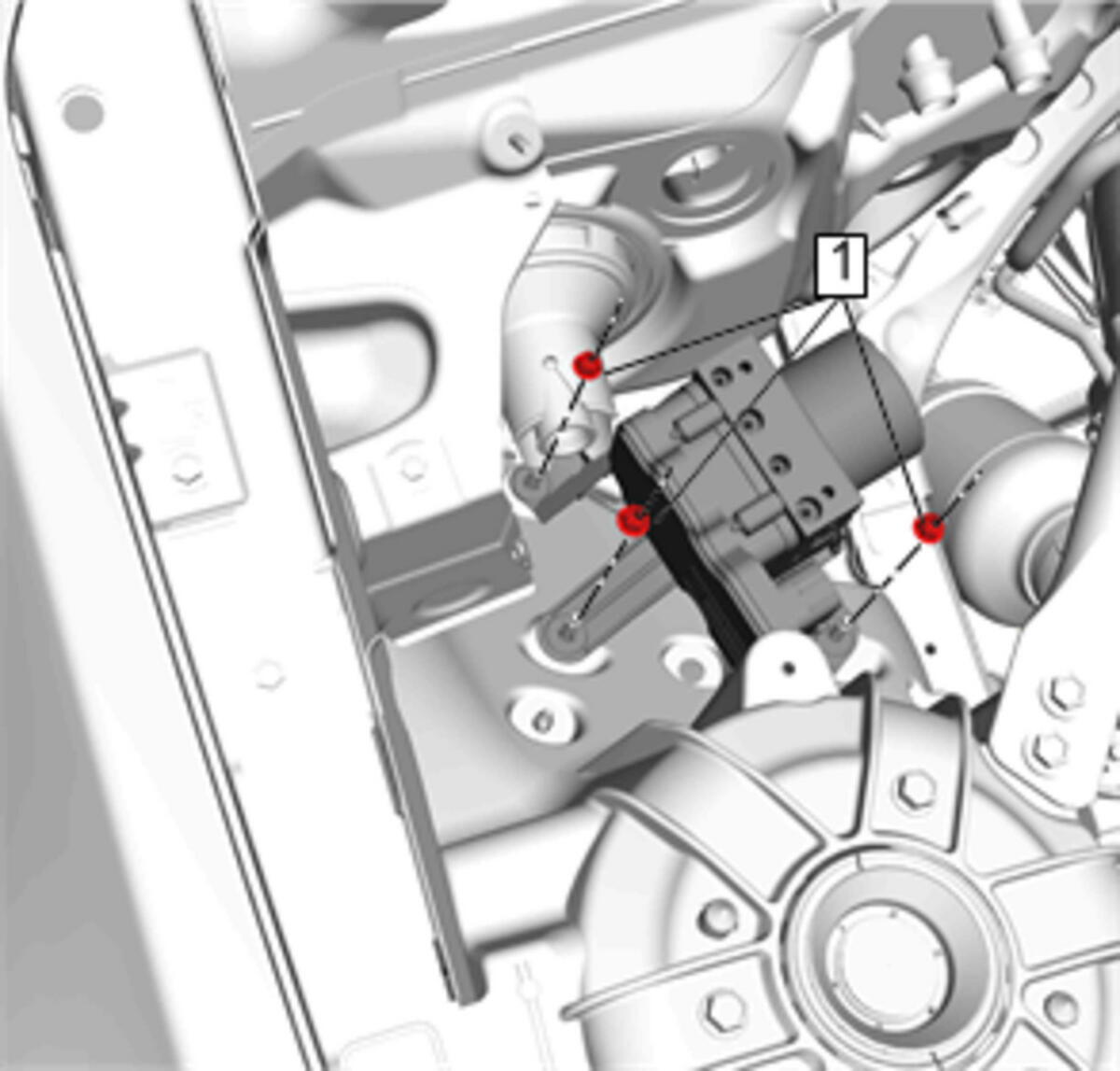

    2. Fig 2: Brake Pressure Modulator Valve Bracket Nuts
    GM4161887Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  2. Install and tighten Brake Pressure Modulator Valve Bracket Nuts (1) (Qty: 3) to 7 N.m (62 lb in)

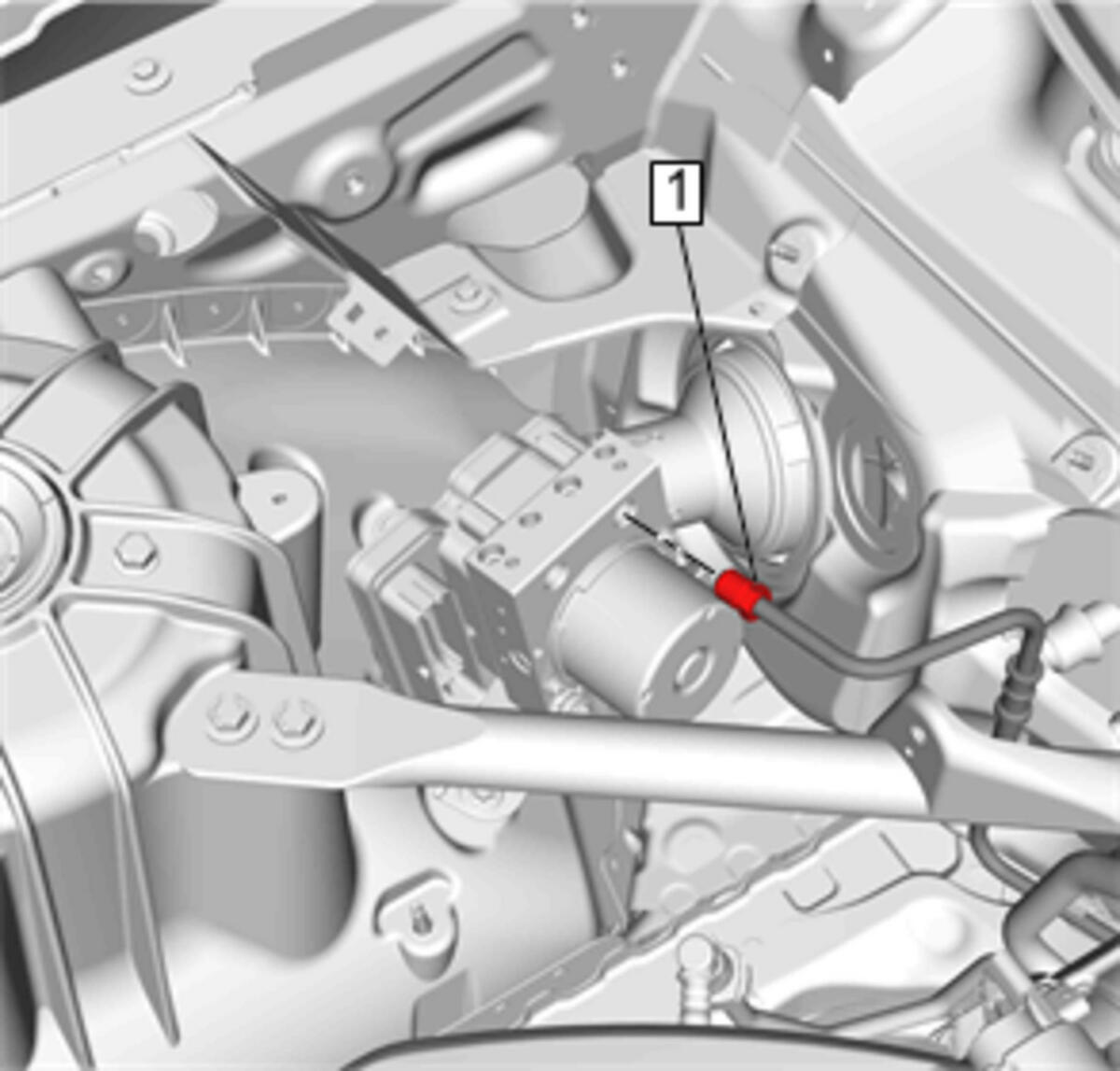

    3. Fig 3: Brake Pressure Modulator Valve Primary Pipe Fitting
    GM4161886Courtesy of GENERAL MOTORS COMPANY
  3. Install and tighten Brake Pressure Modulator Valve Primary Pipe Fitting (1) to 32 N.m (24 lb ft)

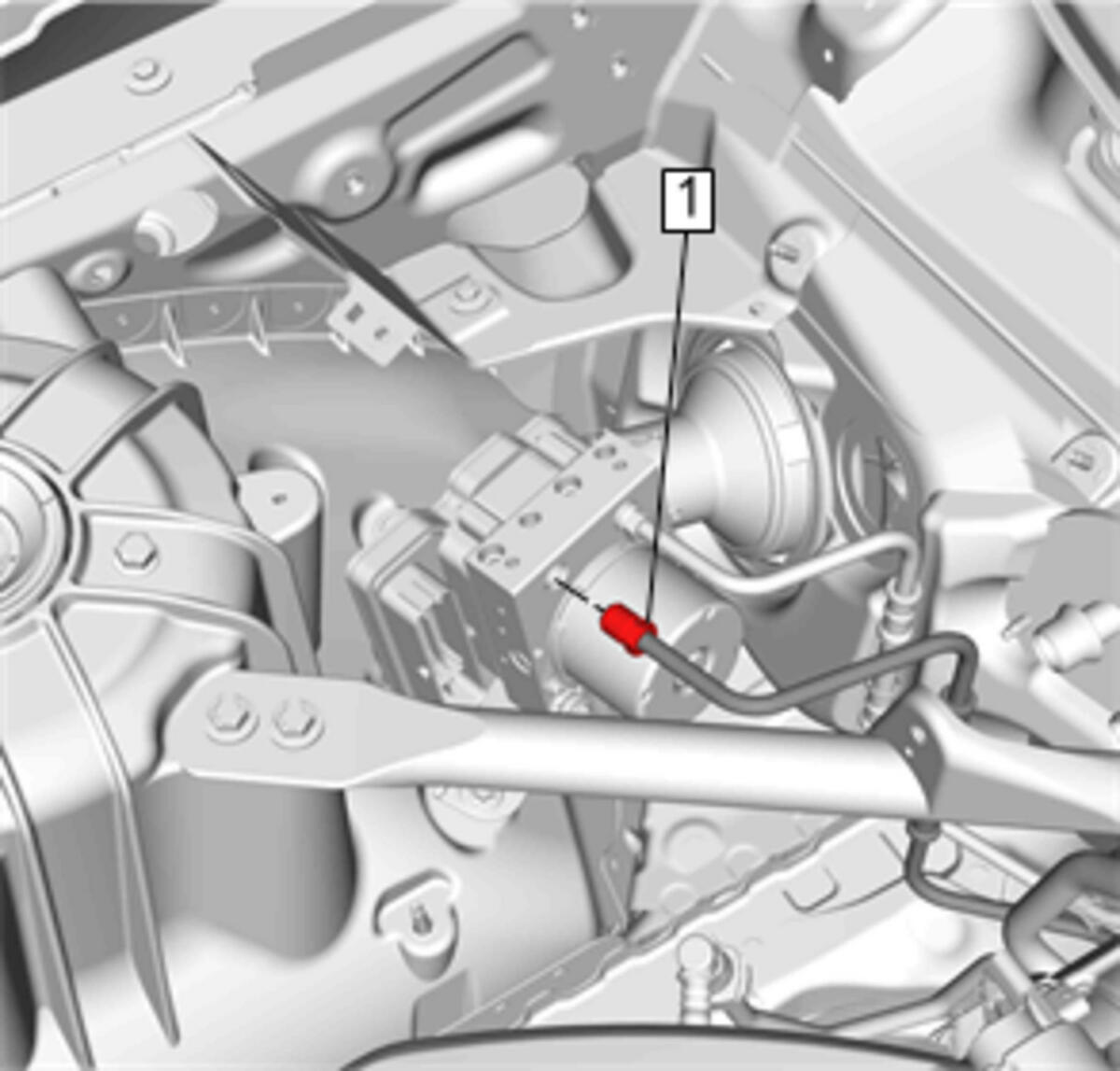

    4. Fig 4: Brake Pressure Modulator Valve Secondary Pipe Fitting
    GM4161884Courtesy of GENERAL MOTORS COMPANY
  4. Install and tighten Brake Pressure Modulator Valve Secondary Pipe Fitting (1) to 32 N.m (24 lb ft)

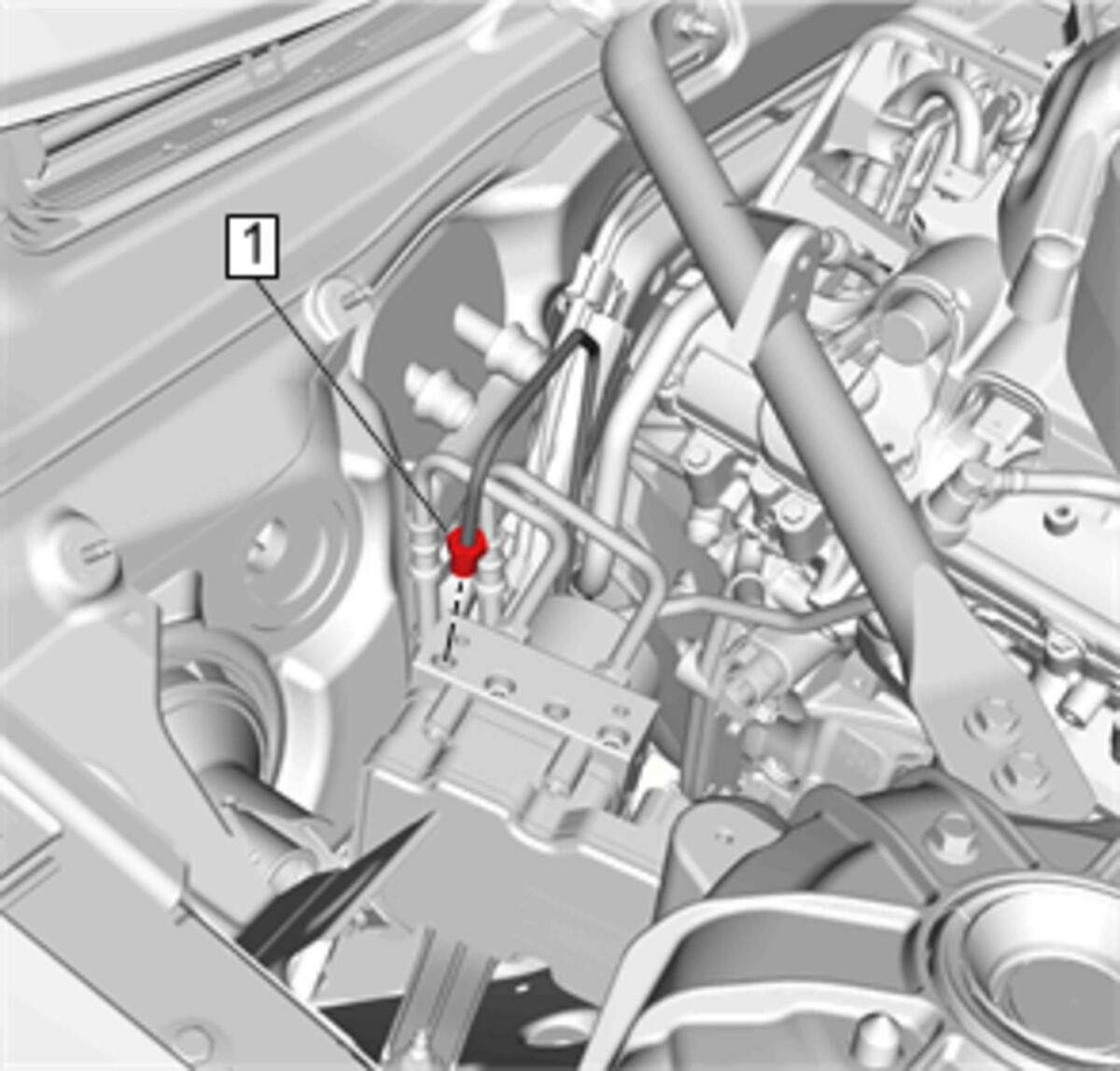

    5. Fig 5: Left Rear Brake Pipe Fitting
    GM4161883Courtesy of GENERAL MOTORS COMPANY
  5. Install and tighten Left Rear Brake Pipe Fitting (1) to 18 N.m (13 lb ft)

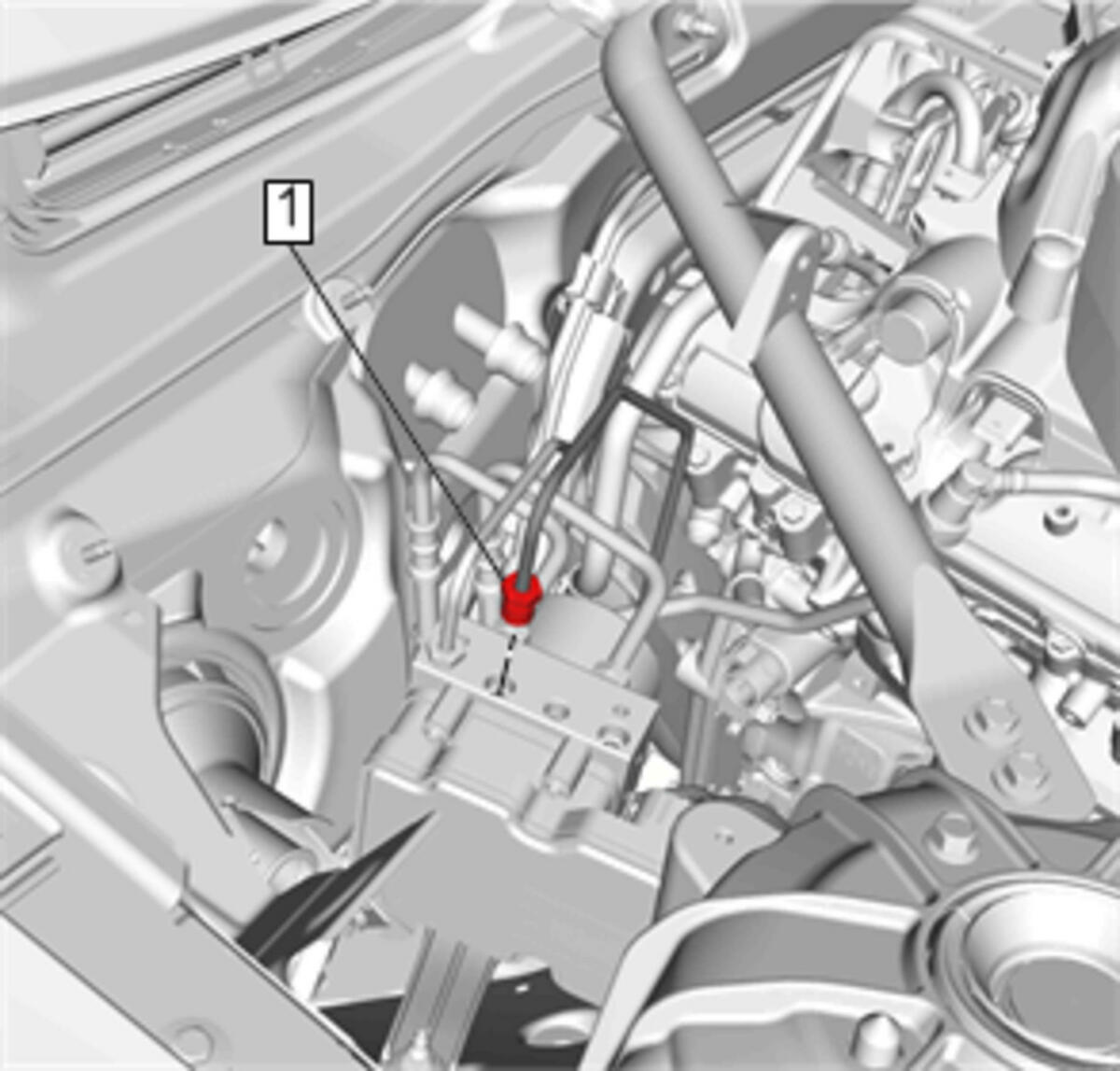

    6. Fig 6: Right Front Brake Pipe Fitting
    GM4161882Courtesy of GENERAL MOTORS COMPANY
  6. Install and tighten Right Front Brake Pipe Fitting (1) to 18 N.m (13 lb ft)

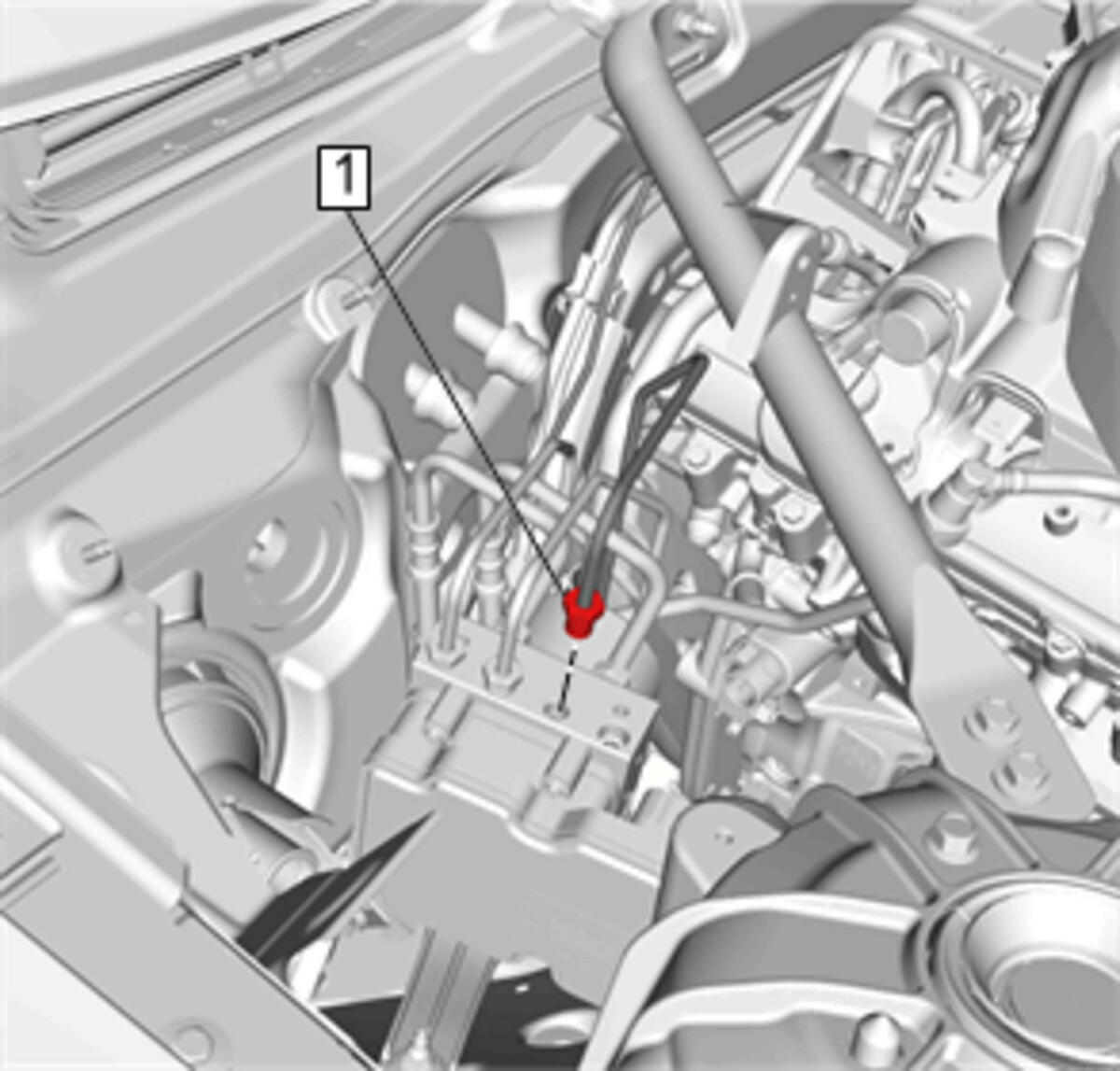

    7. Fig 7: Left Front Brake Pipe Fitting
    GM4161880Courtesy of GENERAL MOTORS COMPANY
  7. Install and tighten Left Front Brake Pipe Fitting (1) to 18 N.m (13 lb ft)

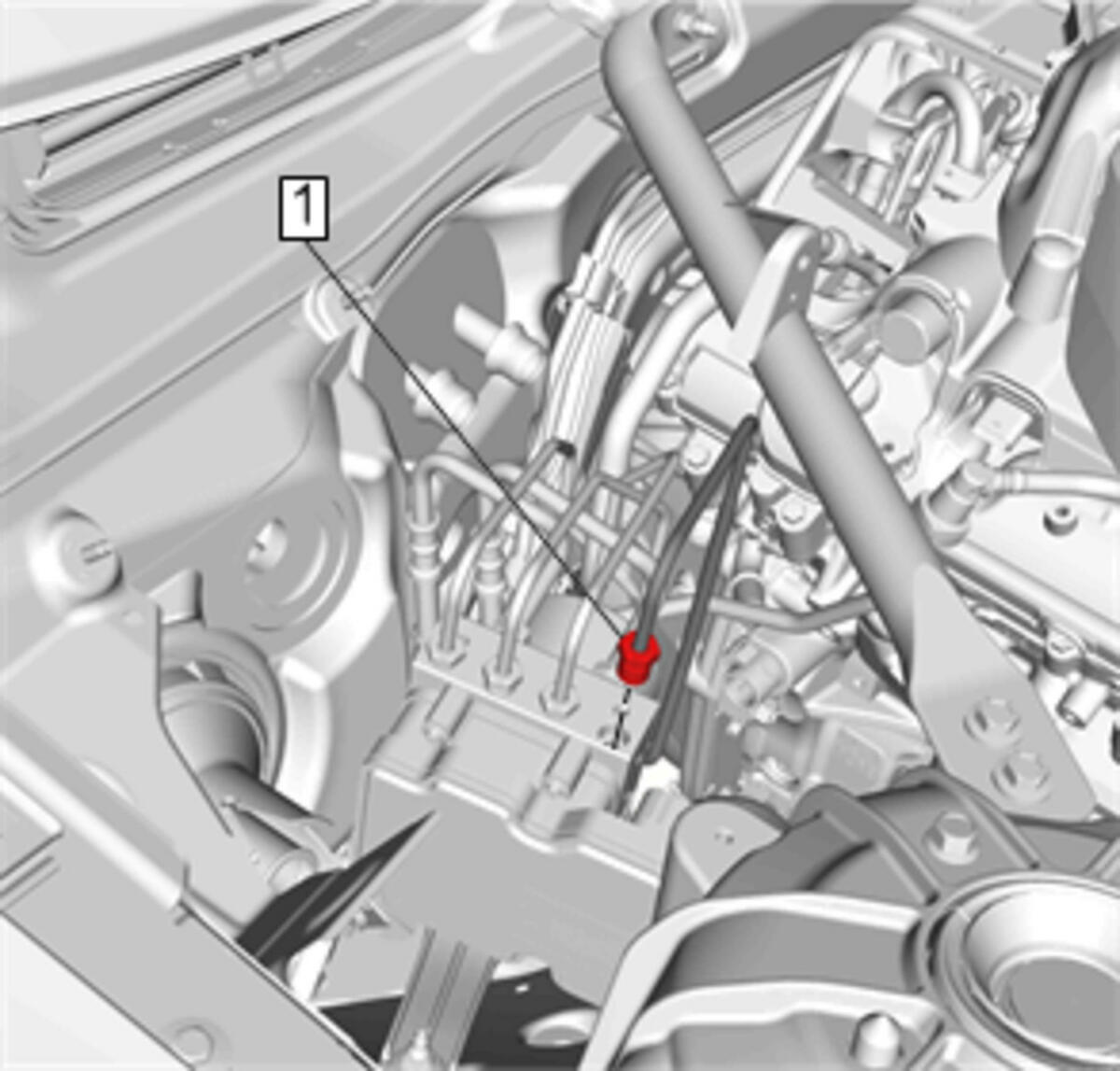

    8. Fig 8: Right Rear Brake Pipe Fitting
    GM4161879Courtesy of GENERAL MOTORS COMPANY
  8. Install and tighten Right Rear Brake Pipe Fitting (1) to 18 N.m (13 lb ft)
  9. Connect the EBCM electrical connector.
  10. Bleed the brake system. Refer to Antilock Brake System Automated Bleed
  11. Install Plenum Front Panel. Refer to Plenum Front Panel Replacement
  12. Program the EBCM. Refer to Control Module References
