Vehicle Stability Control System Switch Replacement

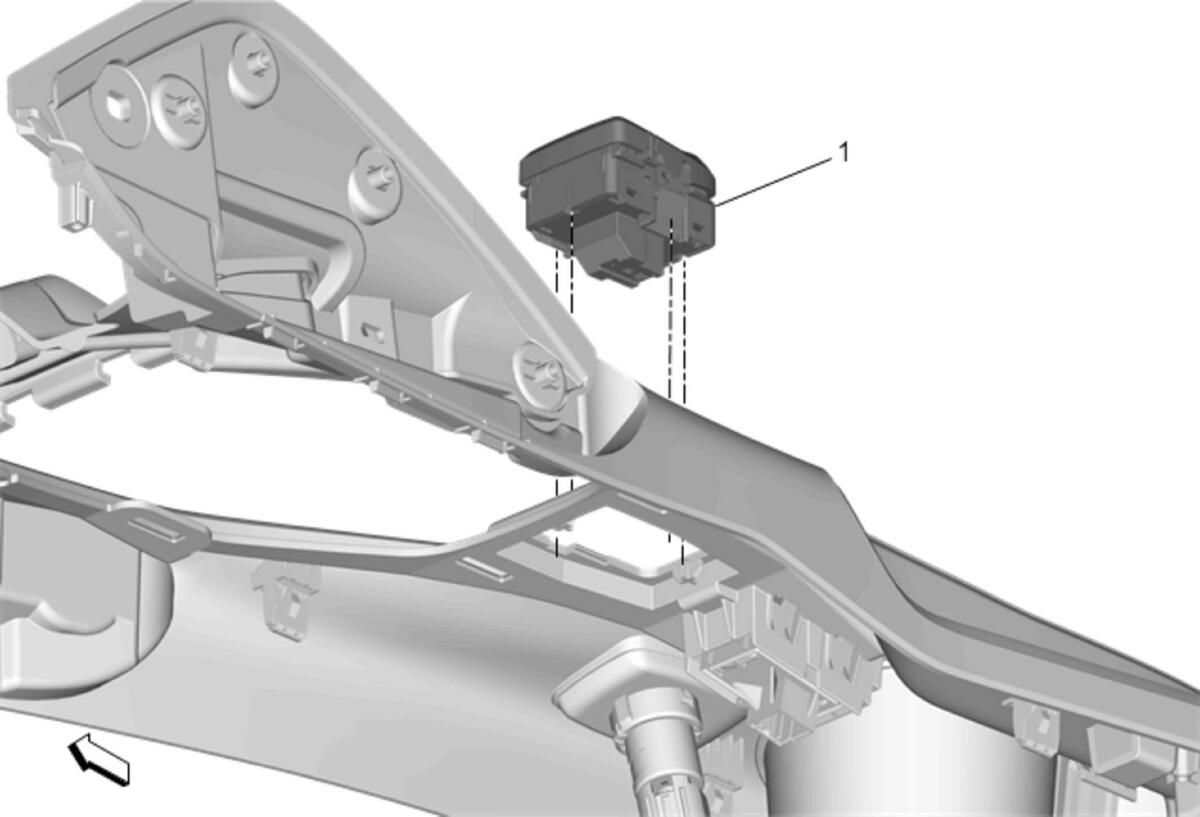

Fig 1: Vehicle Stability Control System Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Front Floor Console Upper Panel. Refer to Front Floor Console Upper Panel Replacement
1	Vehicle Stability Control System Switch Procedure  Release the tabs and remove the switch.
