Rear of Instrument Panel Components

Rear of Instrument Panel Components

Items
1. B81B Park Position Switch B81B Park Position Switch
2. X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel Wire EntryX51A Fuse Block - Instrument Panel X1X51A Fuse Block - Instrument Panel X2

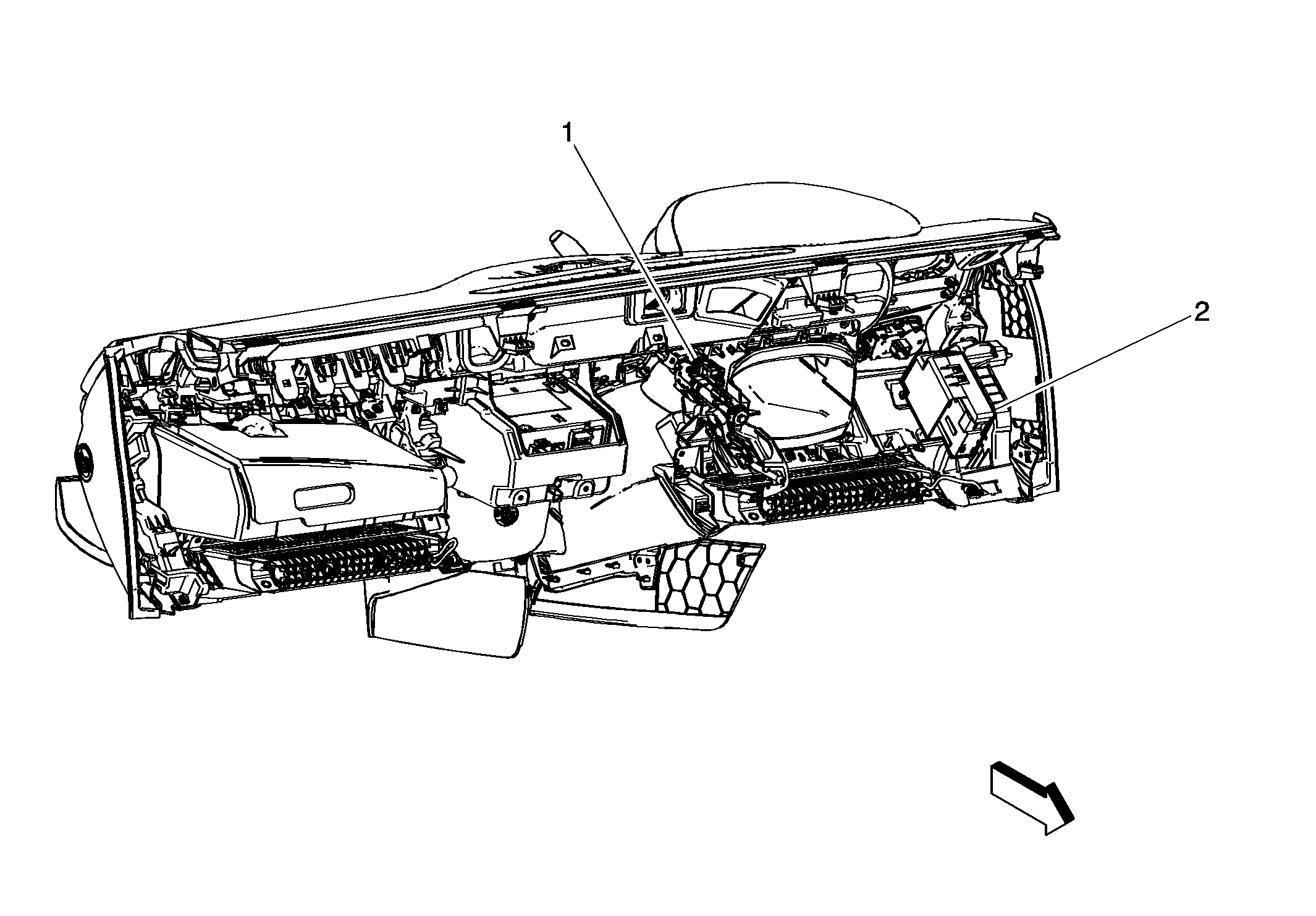

Fig 1: Rear of Instrument Panel Components
GM3462815Courtesy of GENERAL MOTORS COMPANY
