Starter Replacement

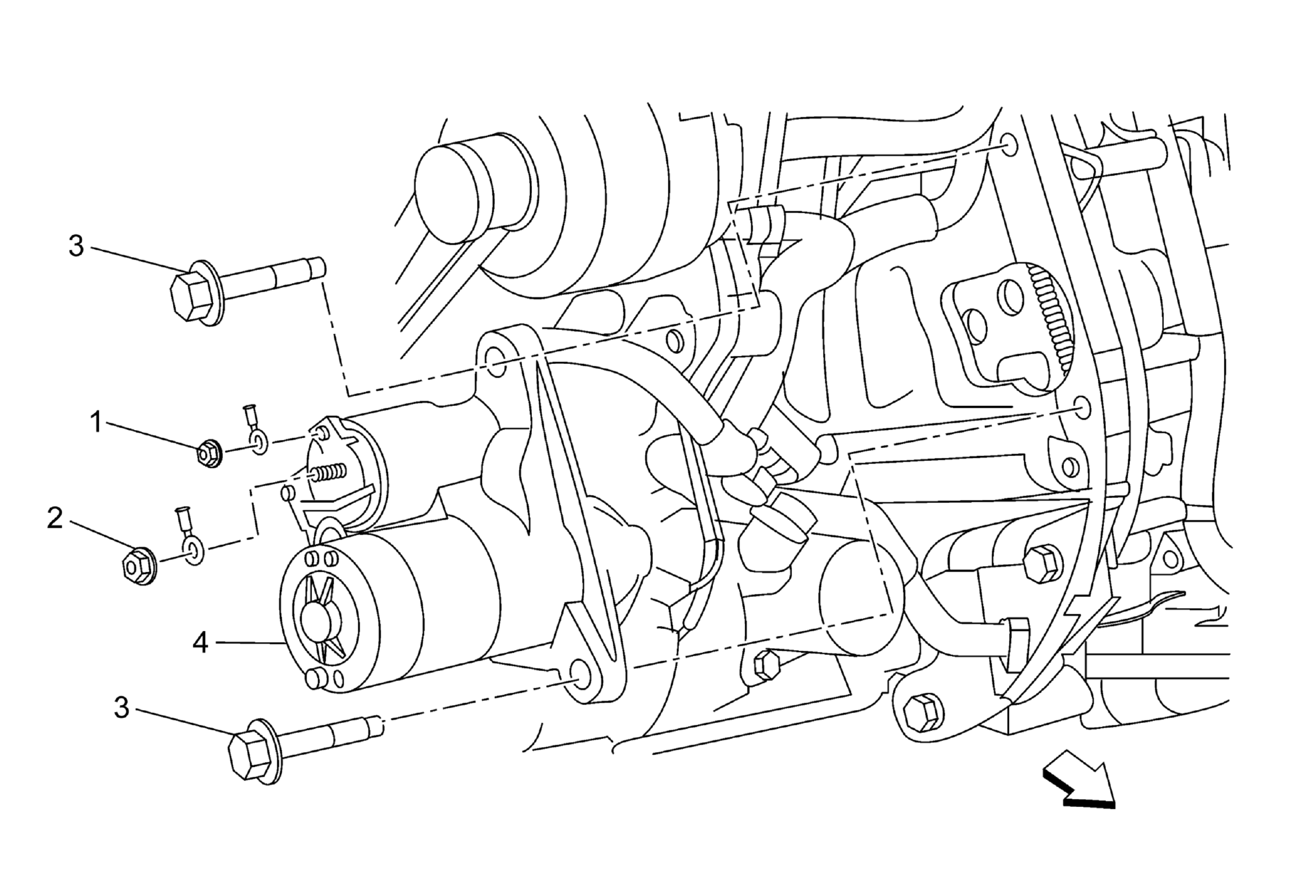

Fig 1: Starter Replacement Components With Torque Specifications

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Battery Negative Cable Disconnection and Connection Raise and support the vehicle. Lifting and Jacking the Vehicle Front Bumper Fascia Lower Deflector Replacement Air Cleaner Assembly Replacement
1	Engine Harness Starter Nut CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Engine Harness Starter Nut Tighten 9 N.m (80 lb in)
3	Starter Bolt [2x] Tighten 62 N.m (46 lb ft)
4	Starter Procedure Remove the starter upwards from the engine.
