Rear Sliding Window Guide Replacement (Lower)

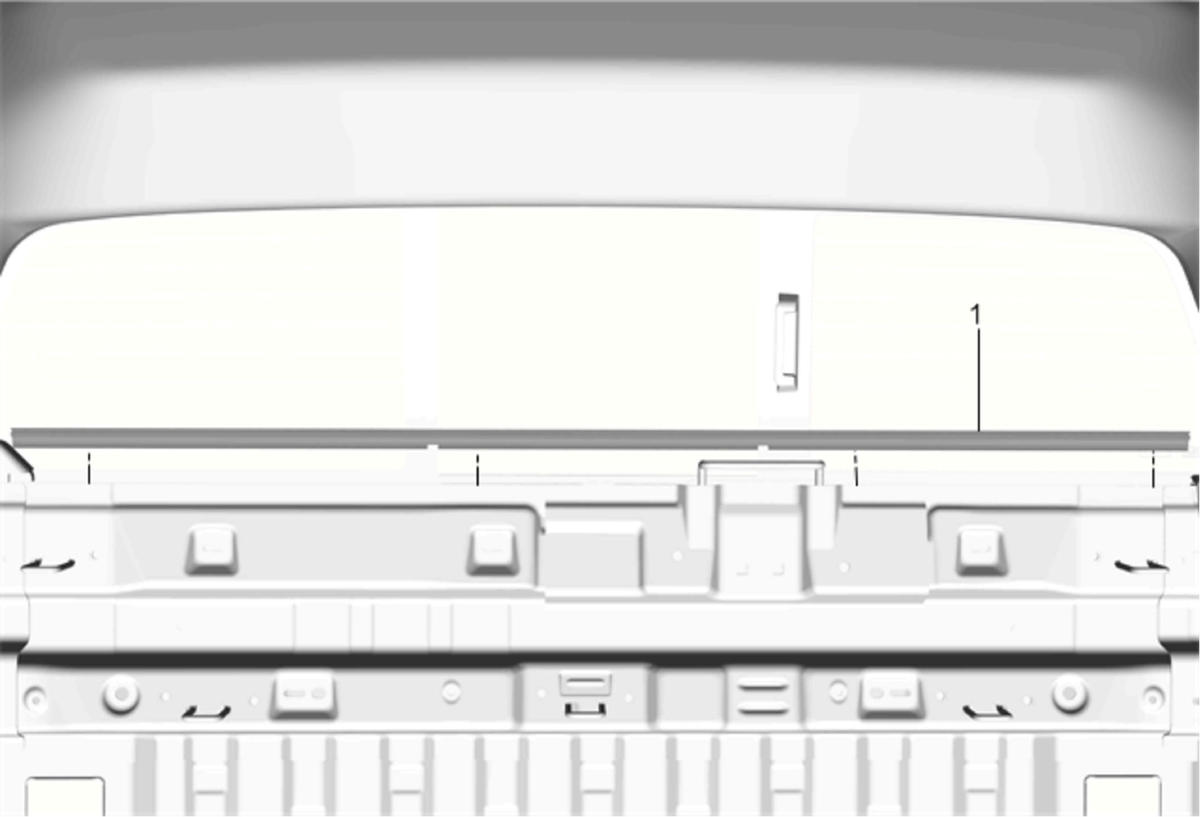

Fig 1: Rear Sliding Window Guide (Lower)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear sliding glass window. Refer to Rear Sliding Window Replacement
1	Rear Sliding Window Guide - Lower Procedure From the passenger side, pull up and slide the rear sliding window lower guide from between the frame and sliding window.
