Oil Pan - Back View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Oil Pan - Back View

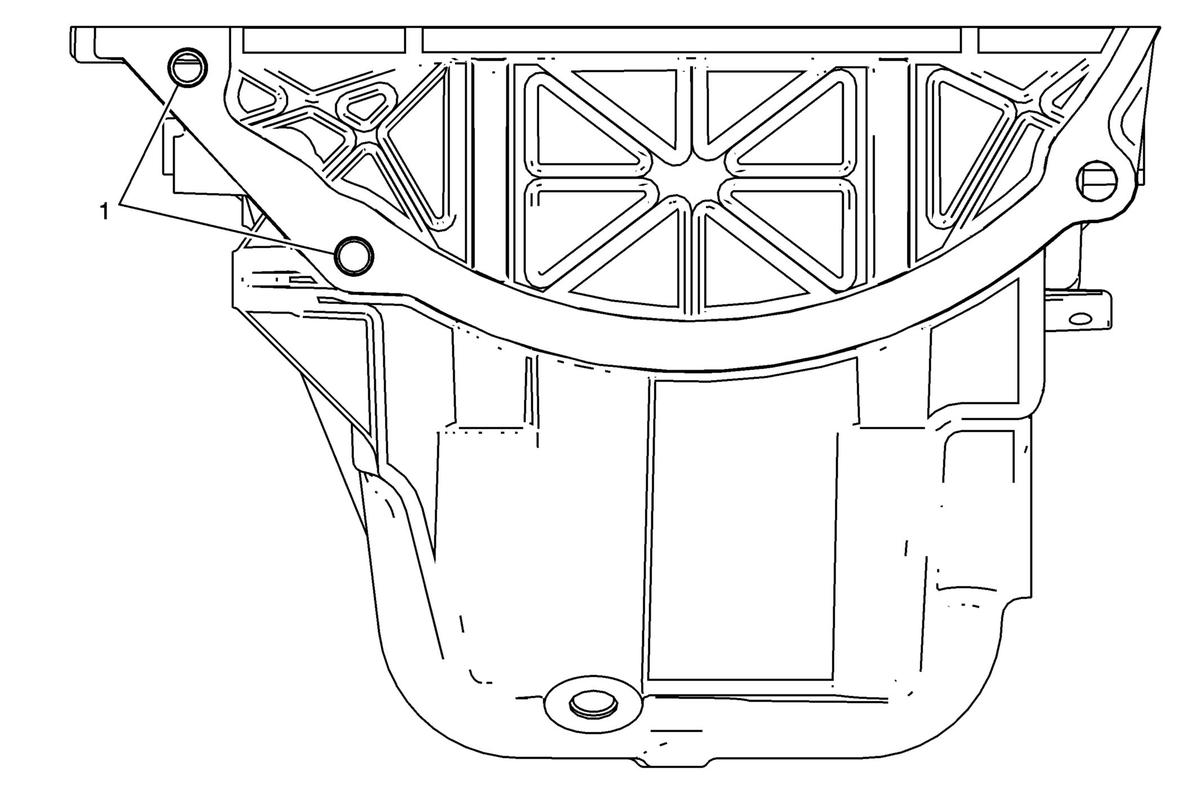

Fig 1: Oil Pan - Back View
Courtesy of GENERAL MOTORS COMPANY
Oil Pan - Back View
Service Call Out
Thread Size
Insert
Drill
Counterbore Tool
Tap
Driver
Drill Depth (Maximum)
Tap Depth (Maximum)
EN 42385
MM
(IN)
MM
(IN)
1
M6x1.0
161031
201
202
203
204
23.0
0.907
23.0
0.907
