Oil Pan - Front View

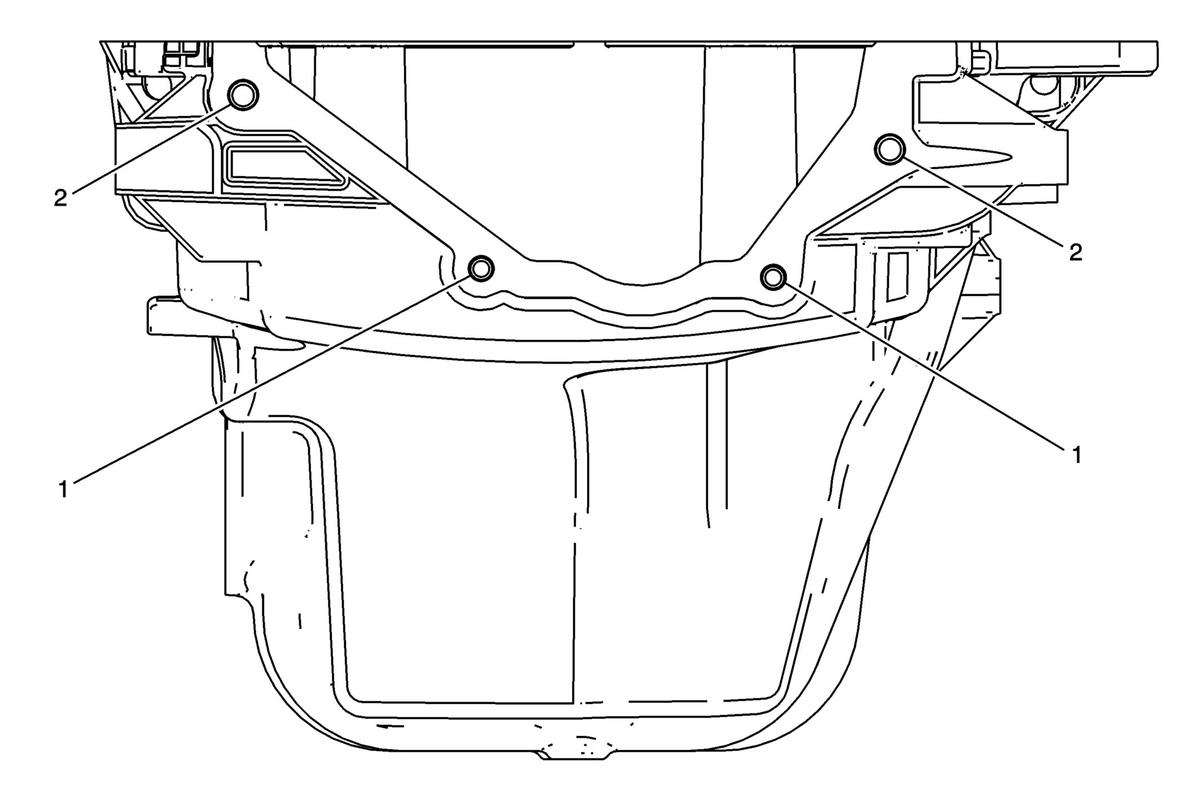

Fig 1: Oil Pan - Front View
GM3818027Courtesy of GENERAL MOTORS COMPANY
Oil Pan - Front View

Service Call Out Thread Size Insert Drill Counterbore Tool Tap Driver Drill Depth (Maximum) Tap Depth (Maximum)
EN 42385 MM (IN) MM (IN)
1 M10x1.5 216 211 212 213 214 34.0 1.35 34.0 1.35
2 M8x1.25 181213 206 207 208 209 29.0 1.14 29.0 1.14
