Removal Procedure

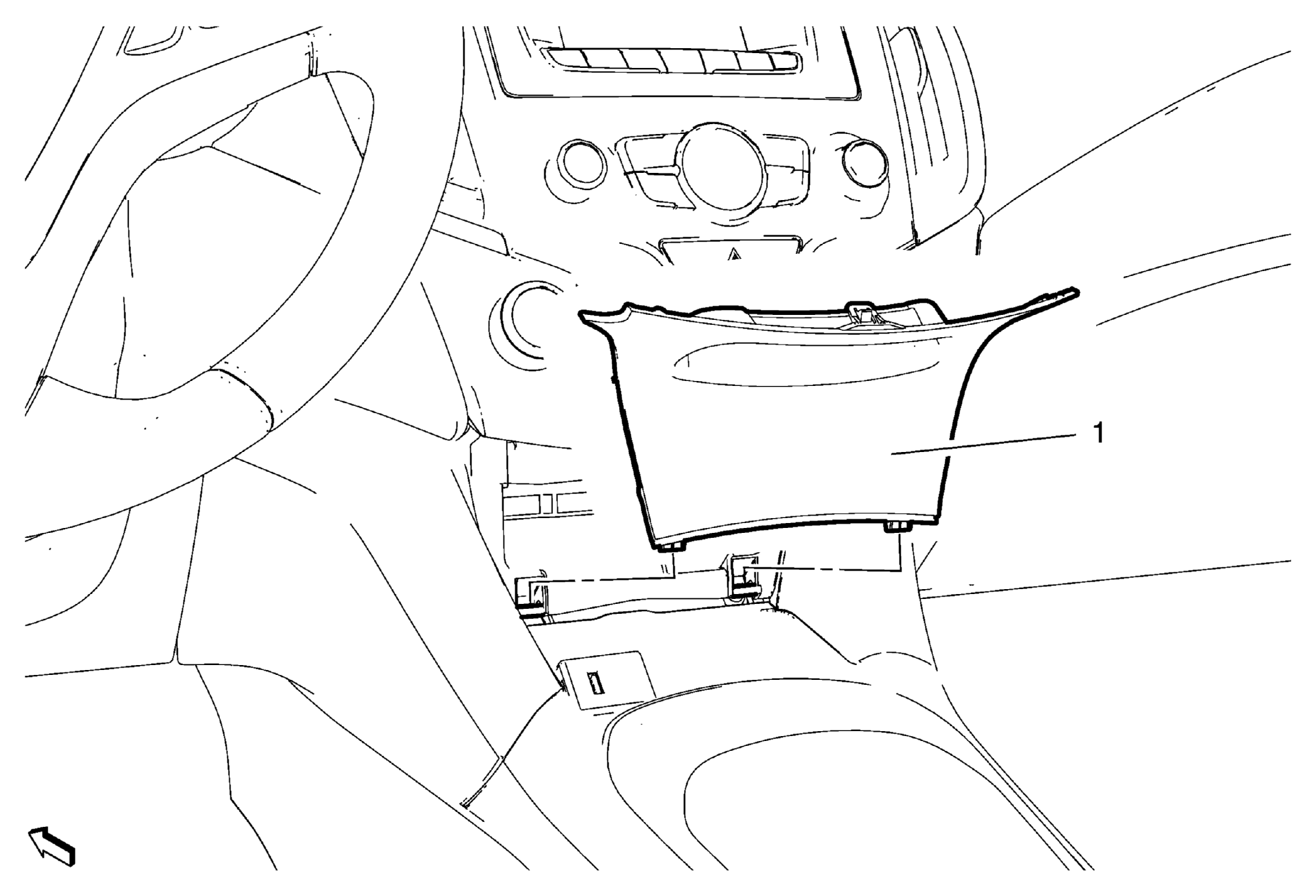

    Fig 1: Instrument Panel Fuse Block Access Hole Cover
    GM3642910Courtesy of GENERAL MOTORS COMPANY
  1. Remove Instrument Panel Fuse Block Access Hole Cover (1)

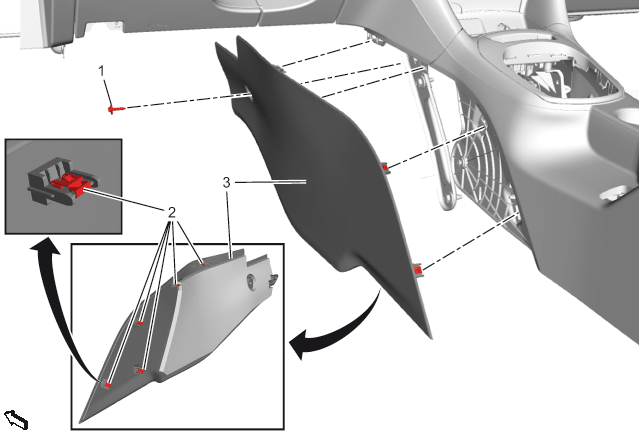

    2. Fig 2: Front Floor Console Extension Panel
    GM4377267Courtesy of GENERAL MOTORS COMPANY
  2. Remove the bolt (1).
  3. Release the 5 retaining tabs (2).
  4. Remove the left and right front floor console extension panel (3).

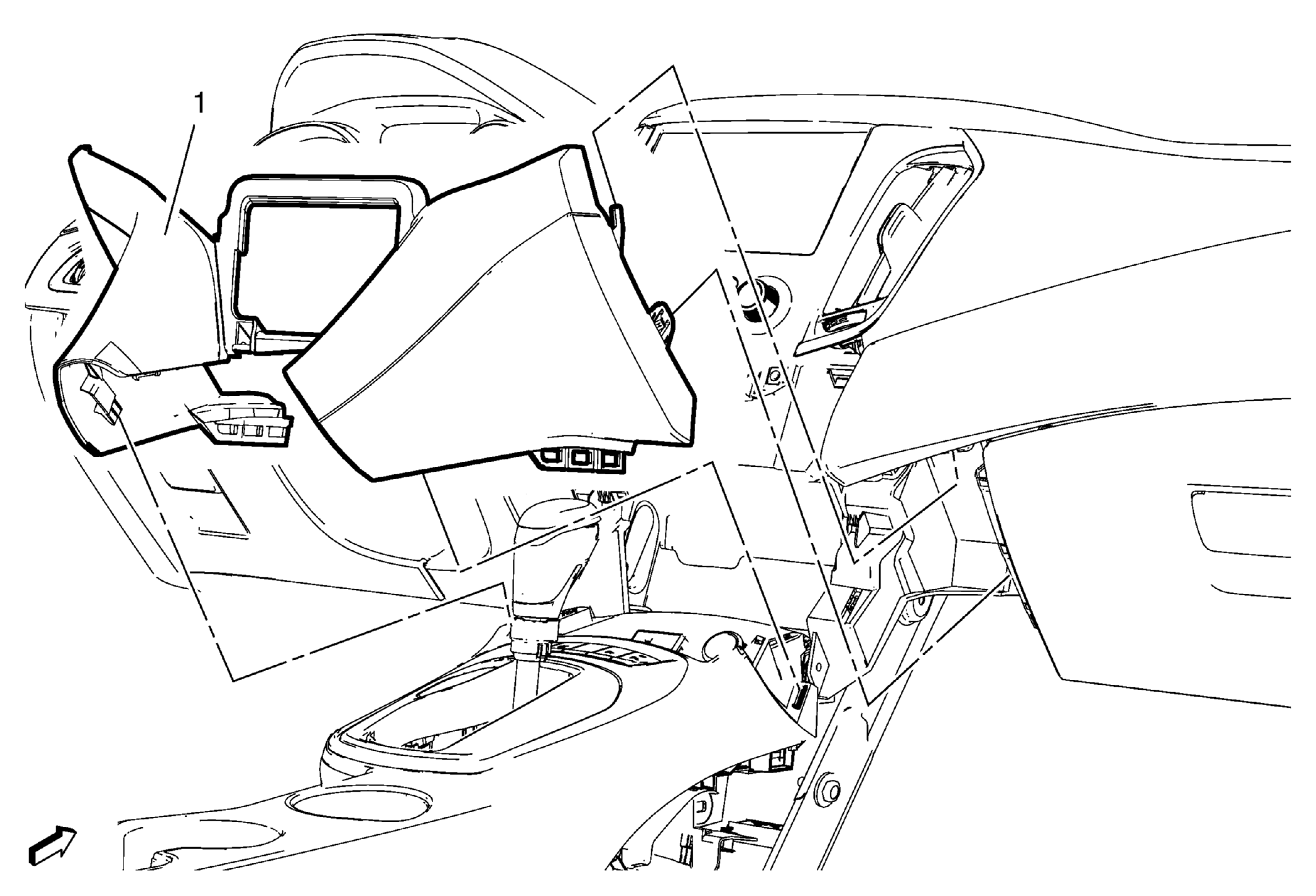

    5. Fig 3: Instrument Panel Fuse Block Access Cover Frame
    GM3682514Courtesy of GENERAL MOTORS COMPANY
  5. Remove the left and right instrument panel fuse block access cover frame (1).

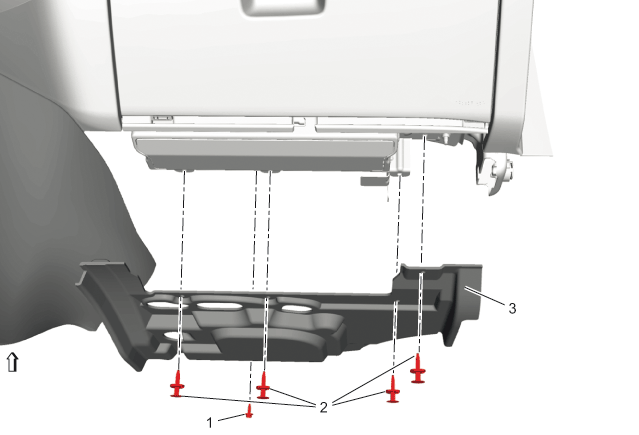

    6. Fig 4: Instrument Panel Lower Trim Panel Insulator
    GM4290319Courtesy of GENERAL MOTORS COMPANY
  6. Remove the bolt (1).
  7. Remove the 4 retaining clips (2).
  8. Remove the instrument panel lower trim panel insulator (3).

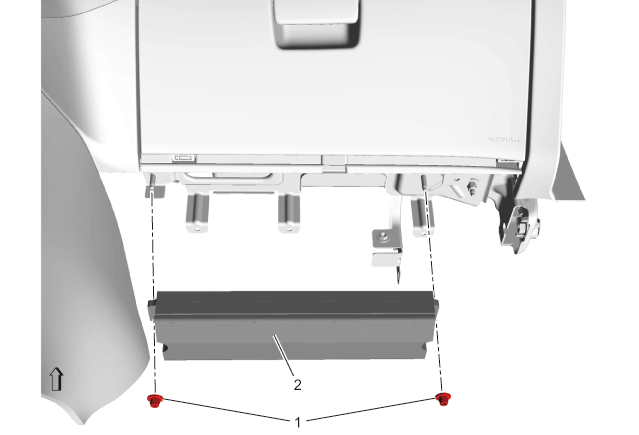

    9. Fig 5: Instrument Panel Lower Airbag And Nuts
    GM4290300Courtesy of GENERAL MOTORS COMPANY
  9. Remove Instrument Panel Lower Airbag Nuts (1)
  10. Remove Instrument Panel Lower Airbag - Passenger Side (2)
  11. Disconnect the electrical connector.

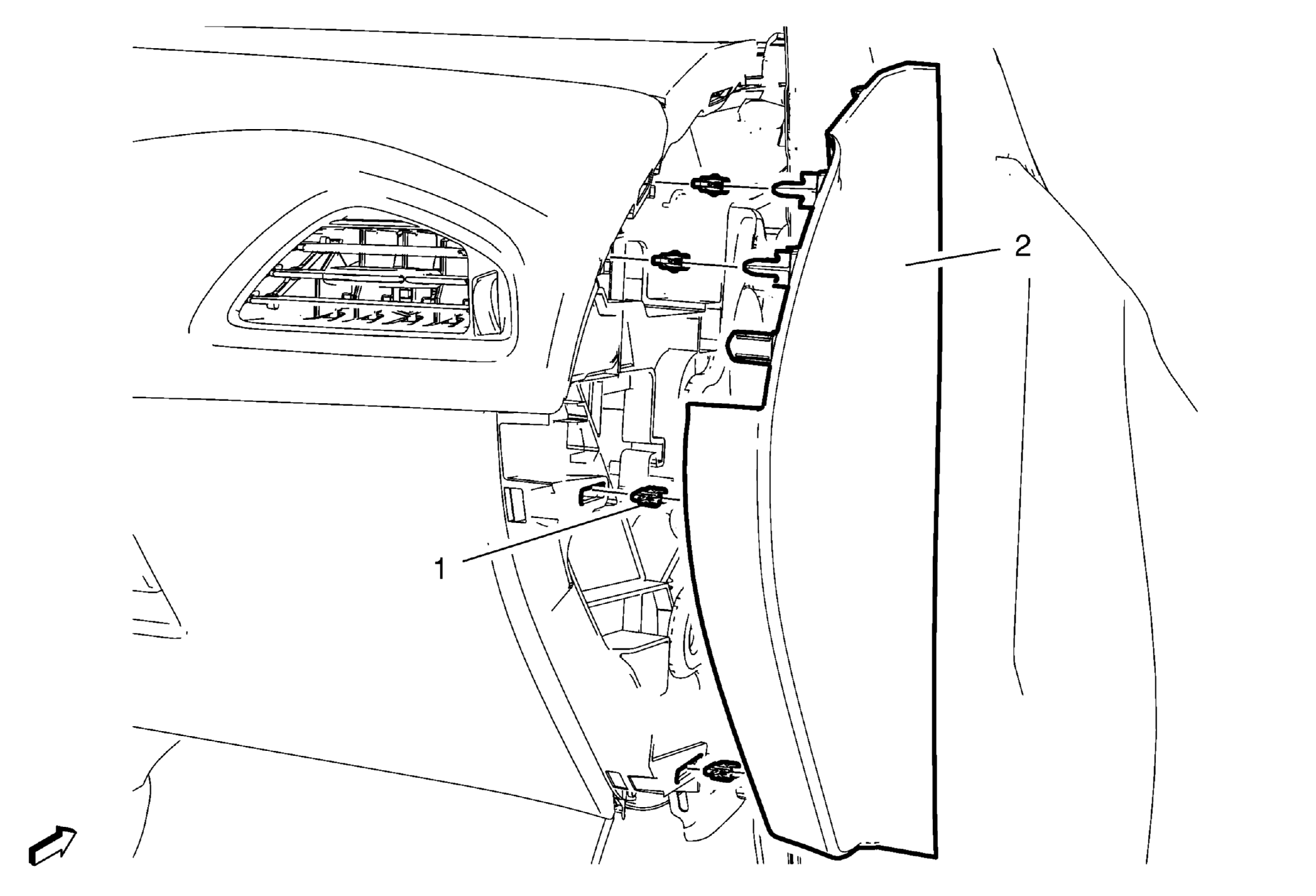

    12. Fig 6: Instrument Panel Outer Trim Cover - Right Side
    GM3686273Courtesy of GENERAL MOTORS COMPANY
  12. Remove Instrument Panel Outer Trim Cover - Right (2)
  13. Unlock the retaining tabs (1).

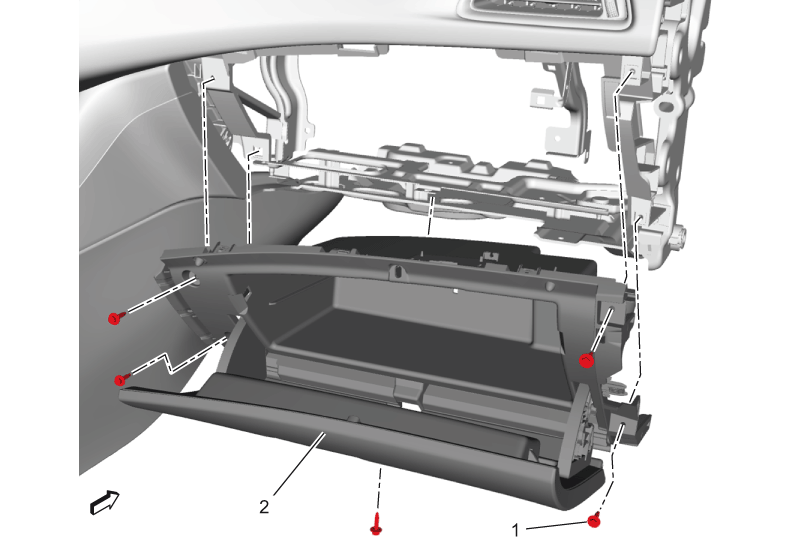

    14. Fig 7: Instrument Panel Compartment And Bolts
    GM4422282Courtesy of GENERAL MOTORS COMPANY
  14. Remove Instrument Panel Compartment Bolts (1) (Qty: 5)
  15. Remove Instrument Panel Compartment (2)
  16. Disconnect the electrical connector.

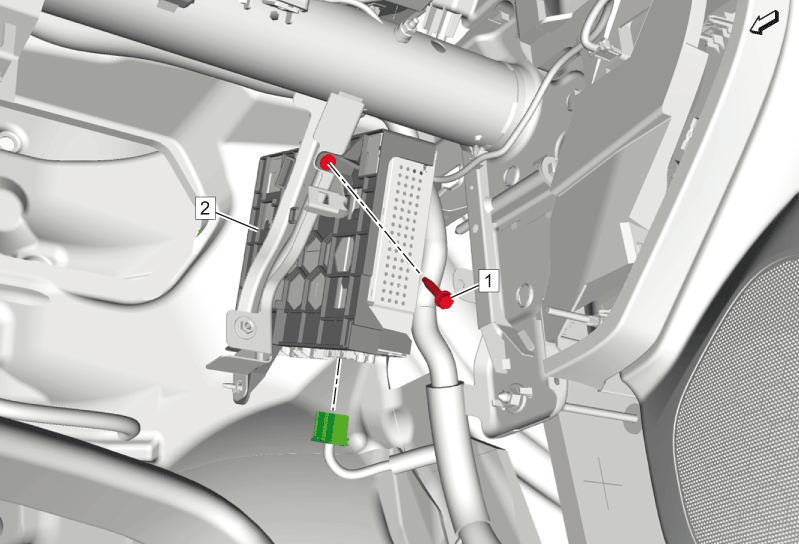

    17. Fig 8: Human Machine Interface Control Module Bracket And Bolt
    GM4421922Courtesy of GENERAL MOTORS COMPANY
  17. Remove Human Machine Interface Control Module Bracket Bolt (1) @ Human Machine Interface Control Module Bracket (2)
  18. Disconnect the electrical connector.

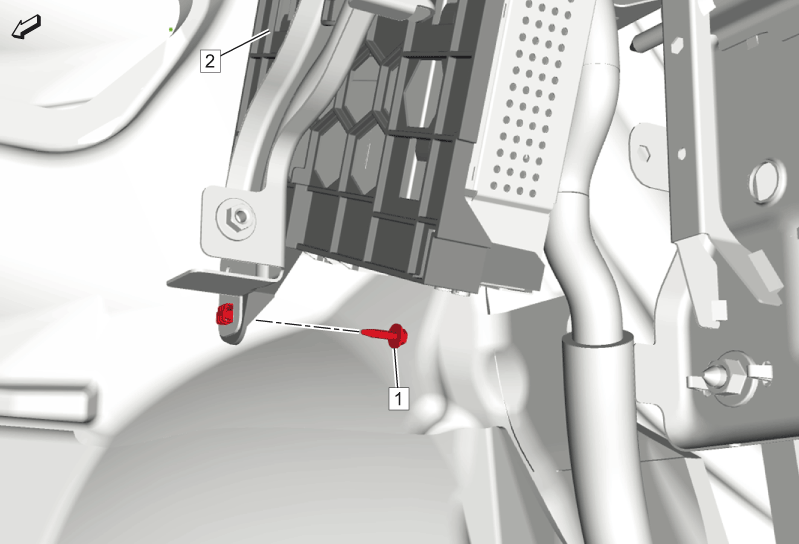

    19. Fig 9: Human Machine Interface Control Module Bracket And Bolt
    GM4421923Courtesy of GENERAL MOTORS COMPANY
  19. Remove Human Machine Interface Control Module Bracket Bolt (1) @ Human Machine Interface Control Module Bracket (2)

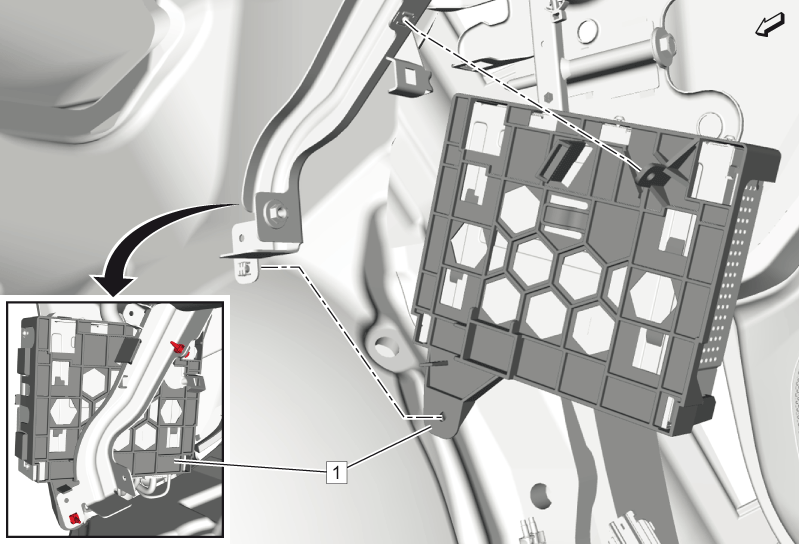

    20. Fig 10: Human Machine Interface Control Module Bracket
    GM4421924Courtesy of GENERAL MOTORS COMPANY
  20. Remove Human Machine Interface Control Module Bracket (1)
  21. Transfer components as necessary.
