Installation Procedure

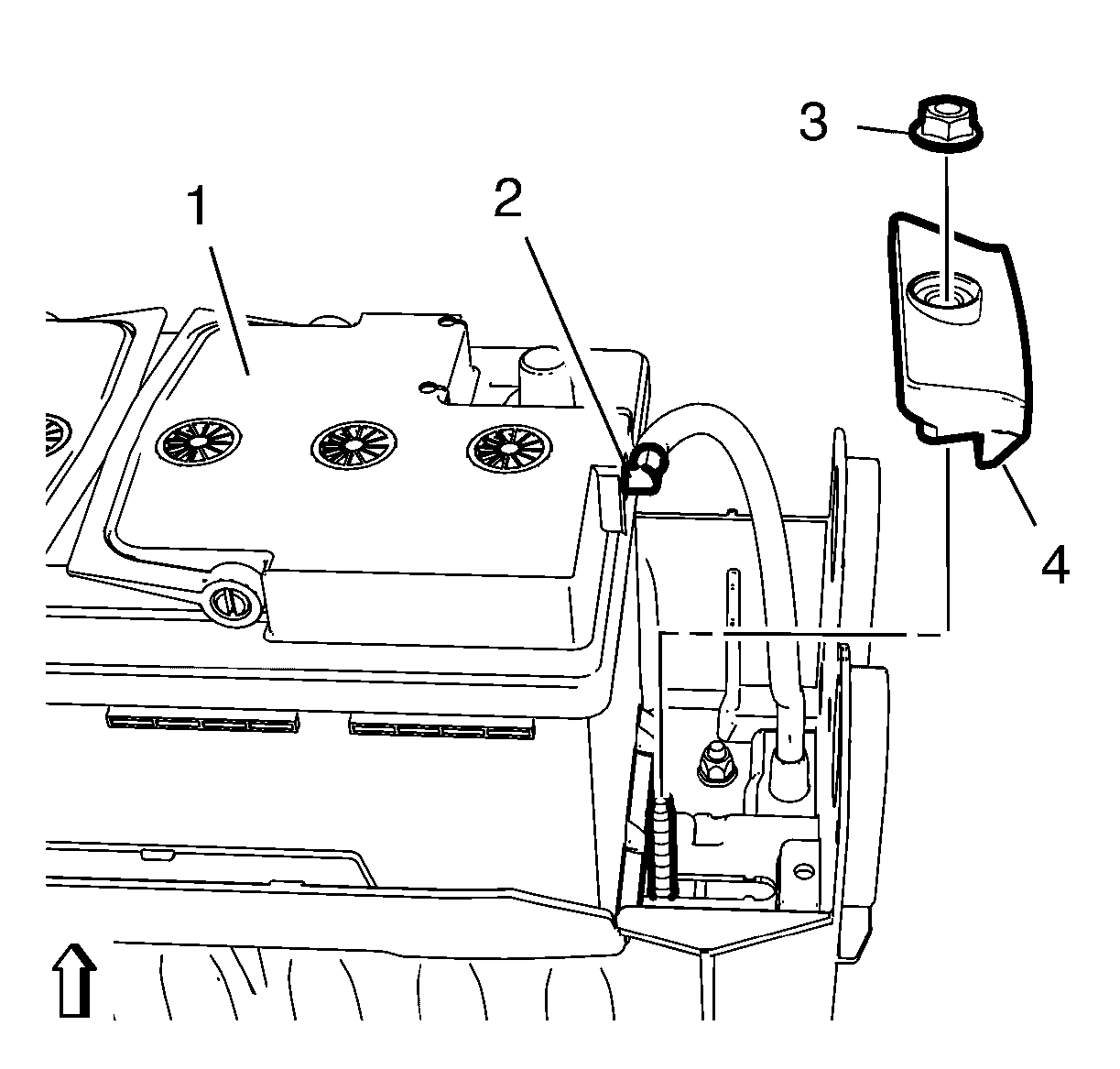

Fig 1: Battery, Battery Vent Tube, Battery Hold Down Retainer And Nut

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Only use a battery with the same part number and the same battery characteristics like nominal capacity and open circuit voltage.

CAUTION:

Install the battery hold down retainer nut (3) and tighten to 10 N.m (89 lb in).
Install the battery vent tube (2) to the battery.

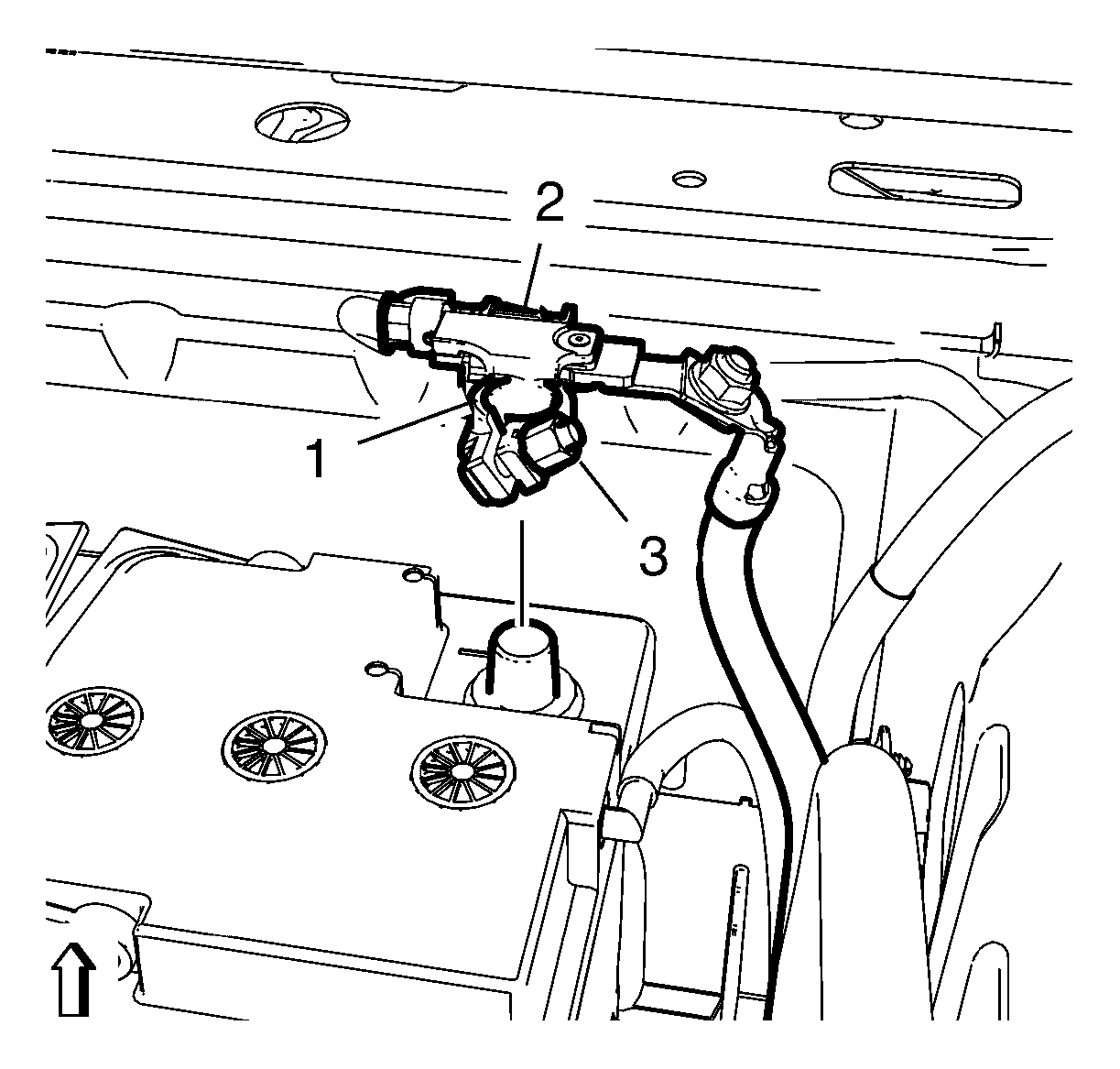

Fig 2: Battery To Fuse Block Cable And Battery Positive Cable Nut

Courtesy of GENERAL MOTORS COMPANY

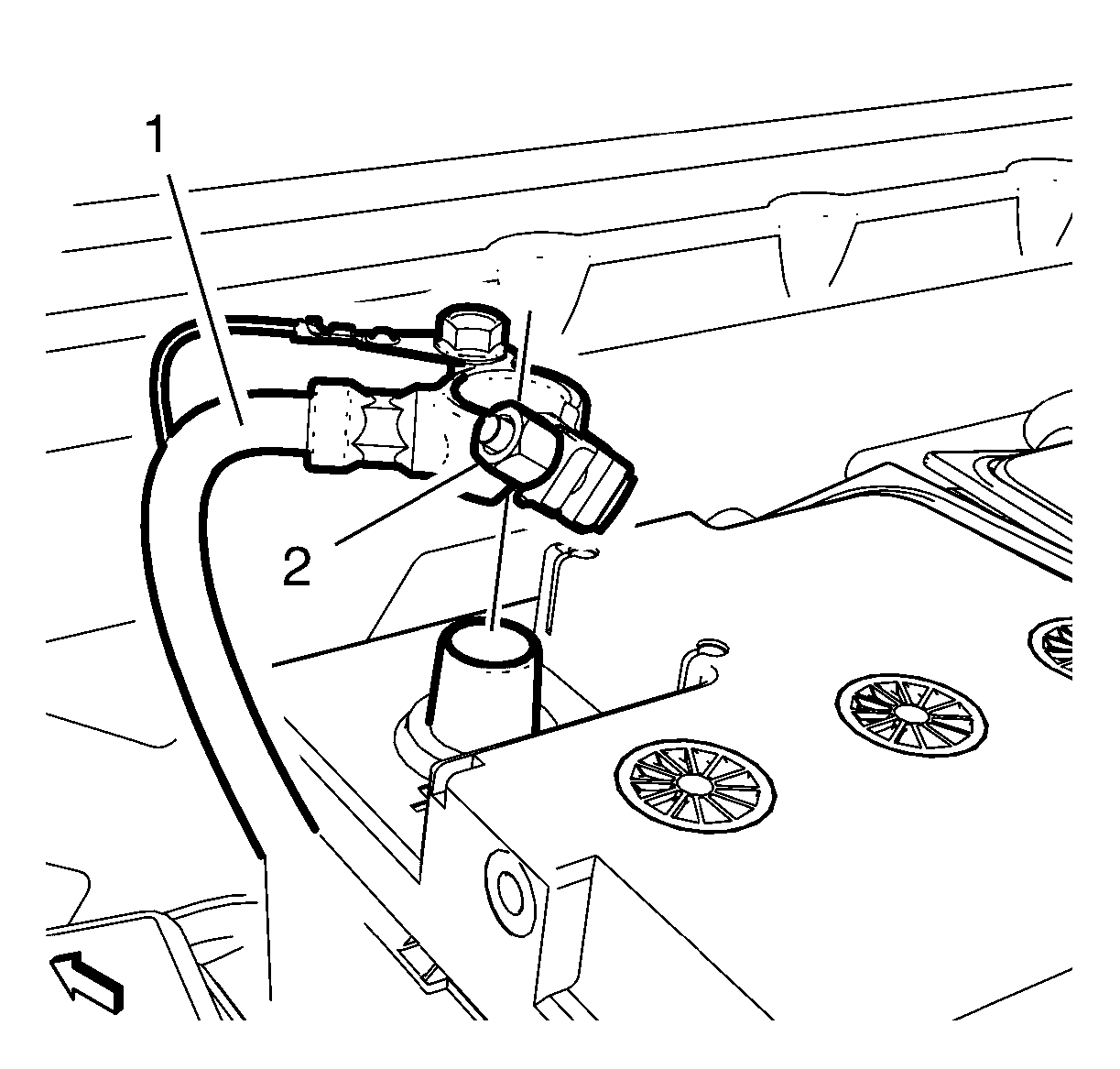

Fig 3: Battery Sensor, Battery Negative Cable And Nut

Courtesy of GENERAL MOTORS COMPANY

Install the battery negative cable (1) along with the battery sensor (2) to the battery.
Tighten the battery negative cable nut (2) to 4.5 N.m (40 lb in).
Fold the rear seat back cushion in original position.
Close the right rear door.
Install Rear Compartment Floor Panel Trim Replacement (Notchback)Rear Compartment Floor Panel Trim Replacement (Hatchback)
Close the rear compartment lid.
Insert the ignition key and turn the ignition to the ON position.
Program the volatile memory. Volatile Memory Programming .
