Turn Signal Switch Replacement

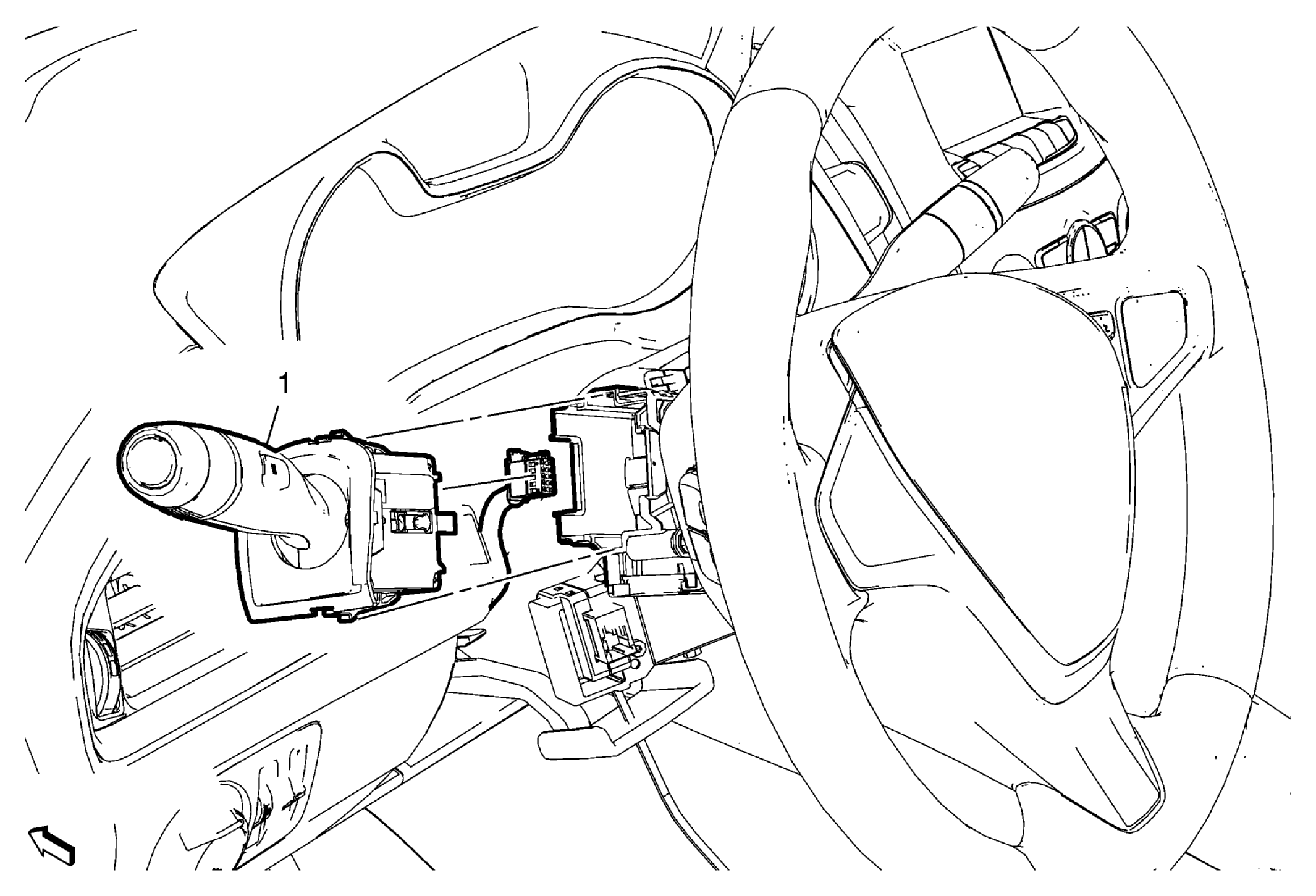

Fig 1: Turn Signal Switch
GM3701749Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Reposition Steering Column Upper Trim Cover Replacement
  2. Steering Column Lower Trim Cover Replacement
1 Turn Signal Switch

Procedure

  1. Release the tabs and remove the switch.
  2. Disconnect the electrical connector.
