Removal Procedure

  1. Disconnect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection
  2. Remove Front Compartment Fuse Block. Refer to Front Compartment Fuse Block Replacement

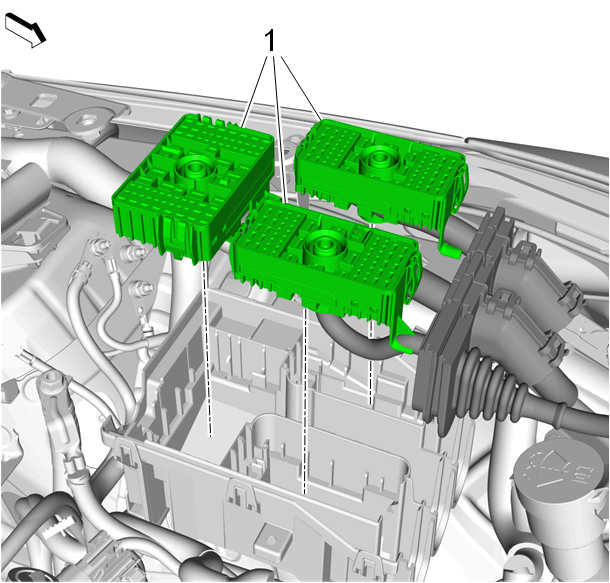

    3. Fig 1: Front Compartment Fuse Block Housing Electrical Connectors
    GM4675897Courtesy of GENERAL MOTORS COMPANY
  3. Remove the electrical connectors from the front compartment fuse block housing. (1)
  4. Unlock the retaining tabs.

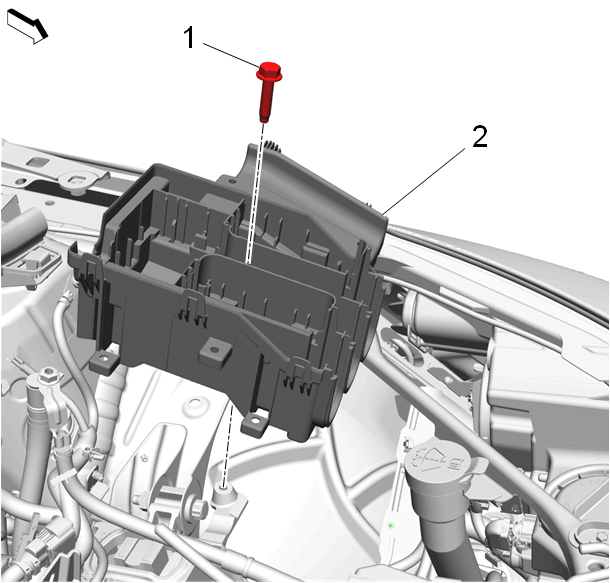

    5. Fig 2: Front Compartment Fuse Block Housing And Bolt
    GM4675899Courtesy of GENERAL MOTORS COMPANY
  5. Remove Front Compartment Fuse Block Housing Bolt (1)
  6. Remove Front Compartment Fuse Block Housing (2)
  7. Unlock the retaining tabs.
