Front Compartment Fuse Block Cover Replacement

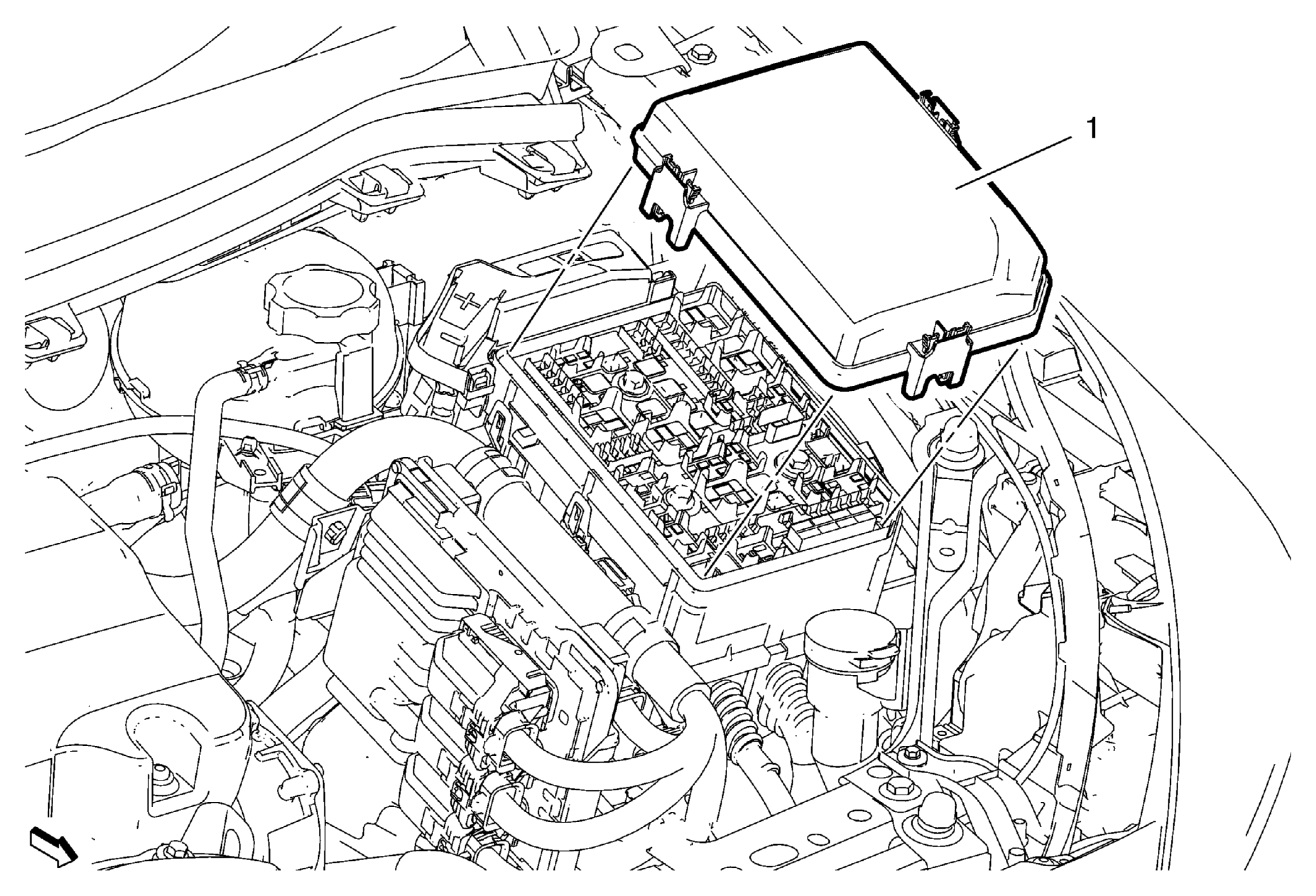

Fig 1: Front Compartment Fuse Block Cover
GM3684398Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Compartment Fuse Block Cover
Procedure
Squeeze the plastic quick connect fitting release tabs. (Qty: 3)
