Engine Stop/Start Mode Control Switch Replacement

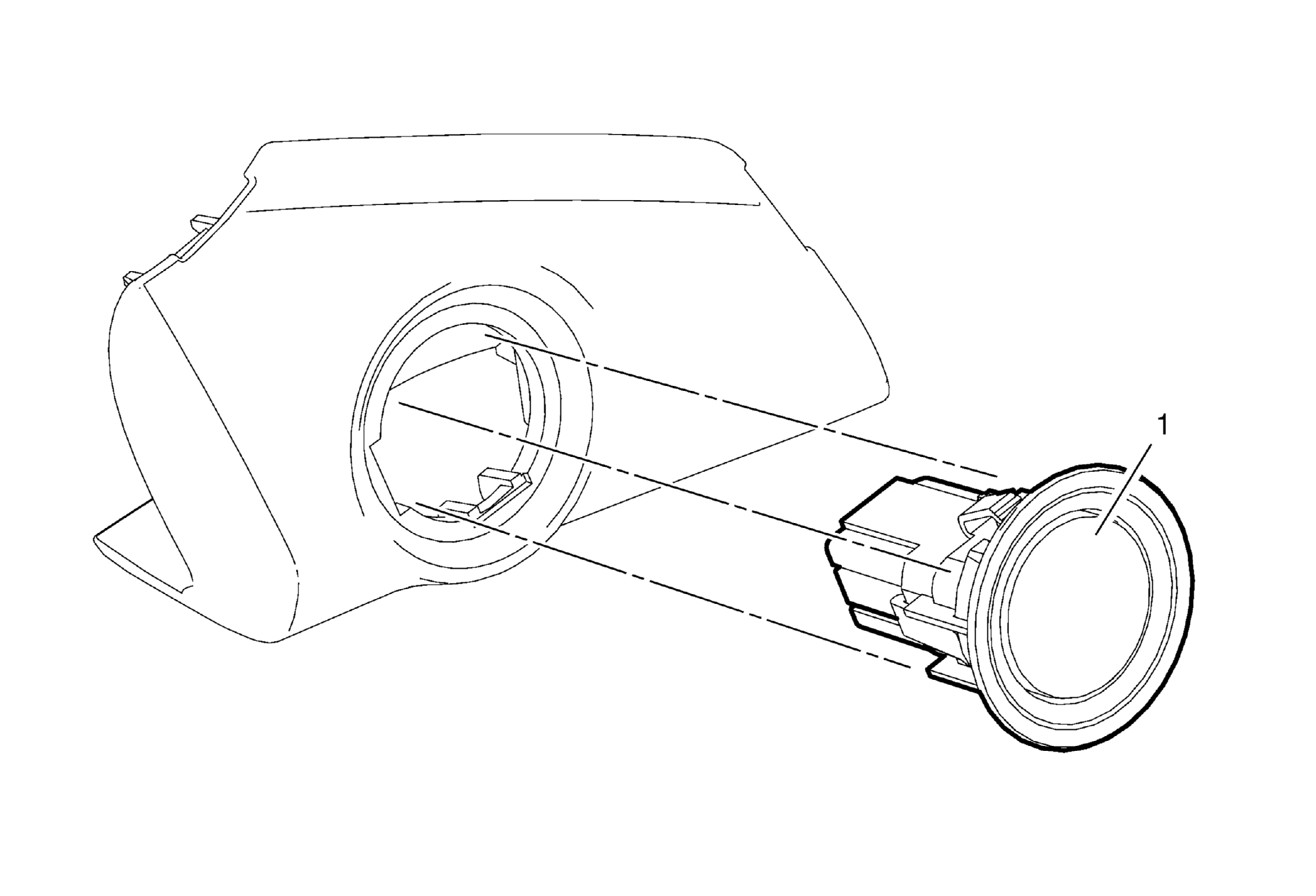

Fig 1: Engine Stop/Start Mode Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection Remove Instrument Panel Center Trim Pad. Refer to Instrument Panel Center Trim Pad Replacement
1	Engine Stop/Start Mode Control Switch Procedure Unlock the retaining tabs.

Callout

Component Name

Preliminary Procedures

Disconnect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection
Remove Instrument Panel Center Trim Pad. Refer to Instrument Panel Center Trim Pad Replacement

Engine Stop/Start Mode Control Switch
Procedure
Unlock the retaining tabs.
