Engine Coolant Temperature Sensor Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the left side wheelhouse splash shield. Refer to Wheelhouse Splash Shield Replacement (Left Side) . |
|

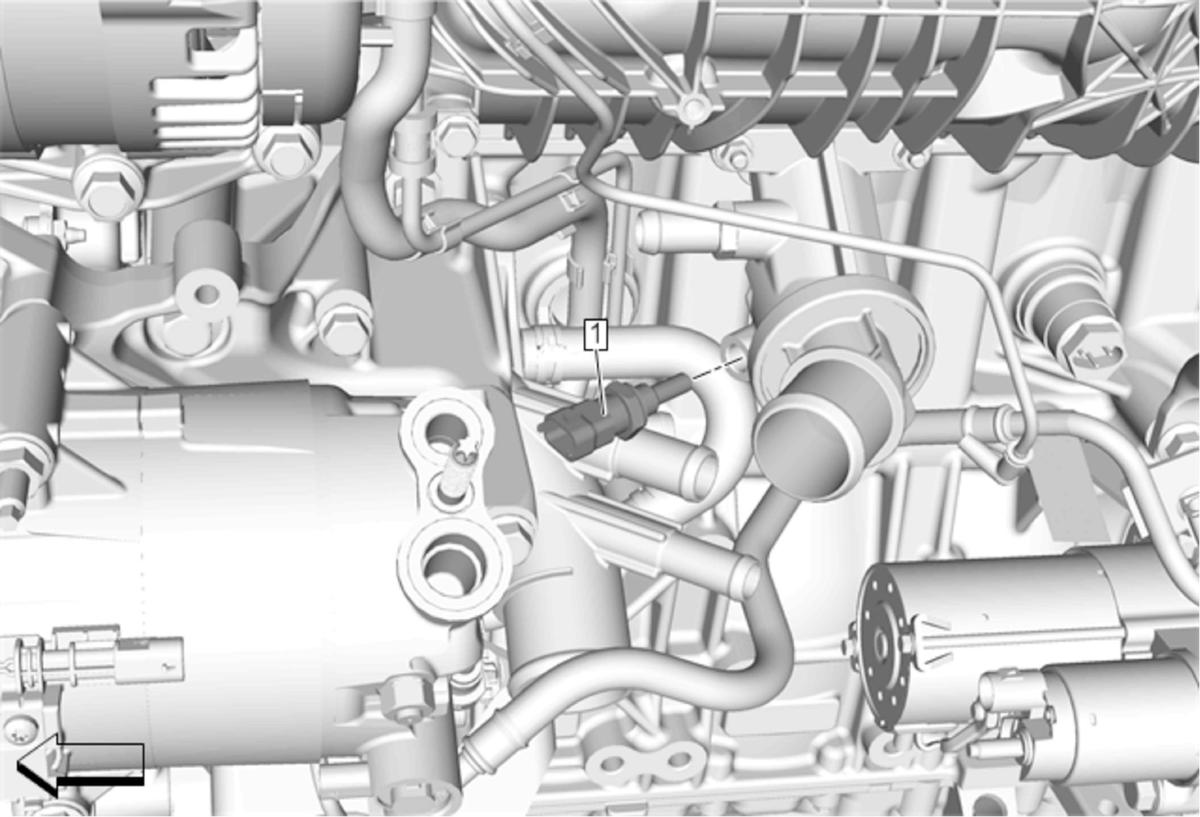

| 1 | Engine Coolant Temperature Sensor
CAUTION:
Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector from the engine coolant temperature sensor. tighten 15 N.m. (11 lb ft) |
