Electrical Component Locations
>>
Electrical Component Locator - Instrument Panel/Center Console Component Views
>>
Instrument Panel/Center Console Component Views
>>
HVAC Case Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
HVAC Case Components
HVAC Case Components
Items
1: M6 Air Temperature Door Actuator
M6 Air Temperature Door Actuator

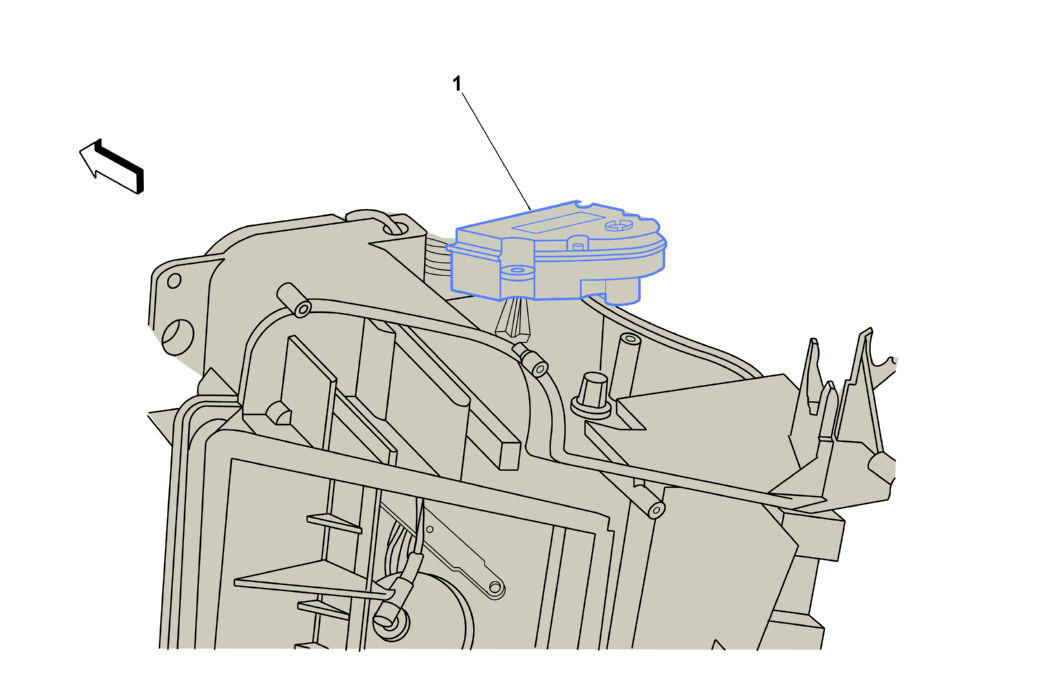

Fig 1: HVAC Case Components
Courtesy of GENERAL MOTORS COMPANY
