Installation Procedure

  1. Knock Sensor (3) - Install

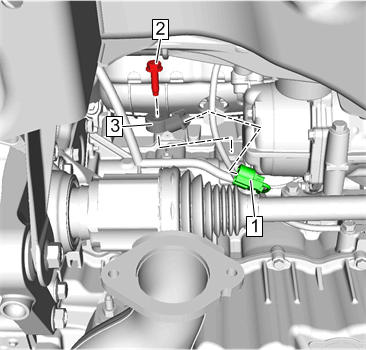

    Fig 1: Knock Sensor
    GM4331848Courtesy of GENERAL MOTORS COMPANY
  2. Knock Sensor Bolt (2) - Install and tighten 22 N.m (16 lb ft)
    CAUTION: Refer to Fastener Caution .
  3. Electrical Connector (1) - Connect
  4. Intake Manifold Brace (1) - Install
    Fig 2: Intake Manifold Brace Bolt
    GM4248348Courtesy of GENERAL MOTORS COMPANY
  5. Intake Manifold Brace Bolt (2) - Install and tighten [2x] 10 N.m (89 lb in)
  6. Exhaust Front Pipe - Install Exhaust Front Pipe Replacement (LKN)
