Oil Pump Flow Control Valve Replacement

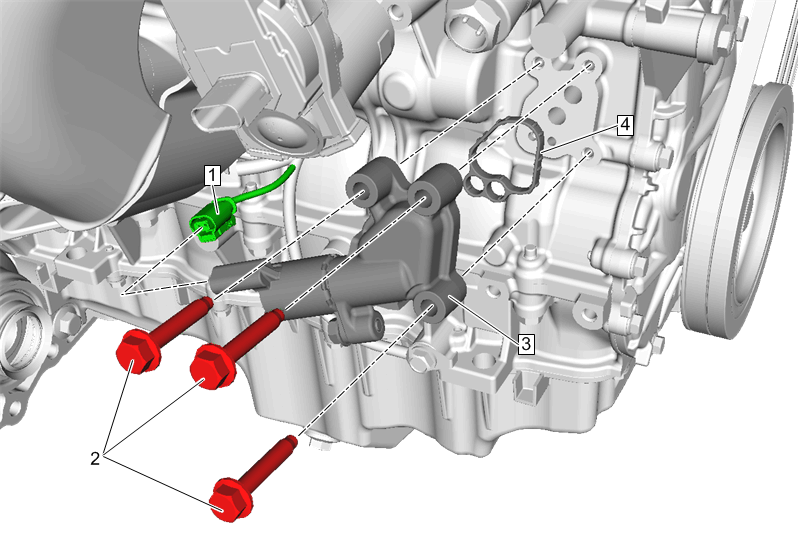

| Callout | Component Name |
|---|---|
| Preliminary Procedure Air Conditioning Compressor Bracket Replacement (LKN) |
|
| 1 | Electrical Connector |
| 2 | Oil Pump Flow Control Valve Bolt [3x]
CAUTION:
Refer to Fastener Caution
. Tighten 10 N.m (89 lb in) |
| 3 | Oil Pump Flow Control Valve |
| 4 | Oil Pump Housing Passage Outer Seal Procedure Install a NEW seal. |
