Low Frequency Console Antenna Replacement

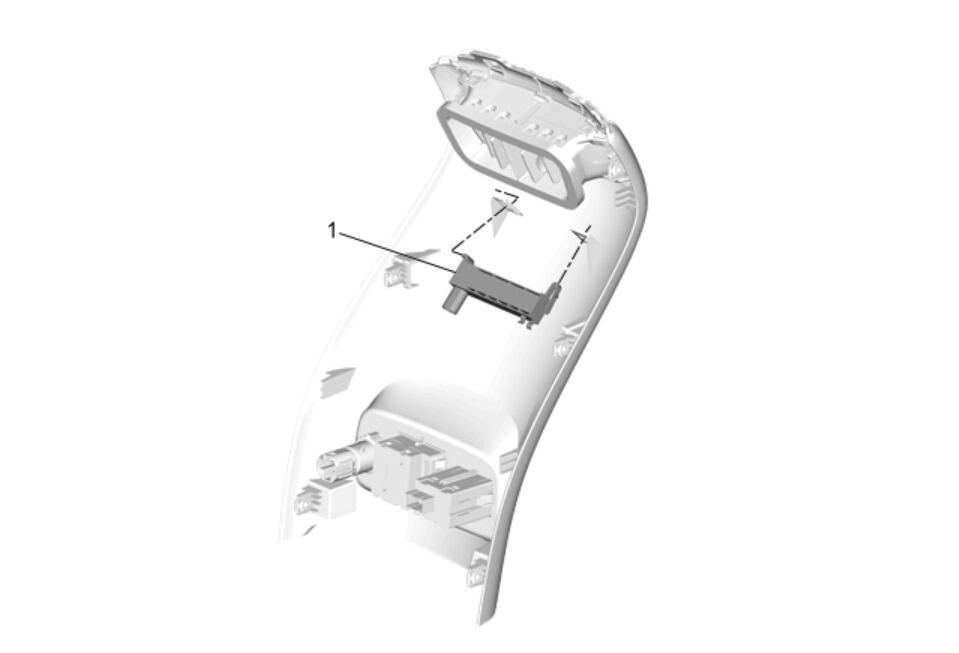

Fig 1: Low Frequency Console Antenna
GM4213739Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Rear Trim Panel Replacement
1 Low Frequency Console Antenna
Procedure
Unclip the antenna from the trim panel.
