Installation Procedure

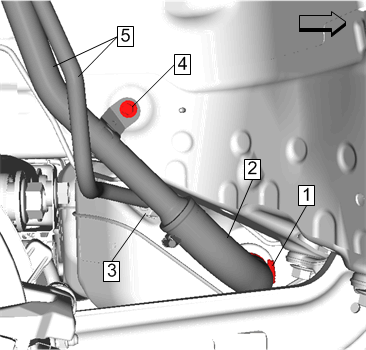

- Fuel Tank Filler Pipe (5) - Install
- Fuel Tank Filler Pipe Bolt (4) - Install 9 N.m (80 lb in)CAUTION: Refer to Fastener Caution .
- Fuel Tank Vent Pipe (3) - Connect Plastic Collar Quick Connect Fitting Service
- Fuel Tank Filler Hose (2) - Install
- Fuel Tank Filler Hose Clamp (1) - Install 4 N.m (35 lb in)

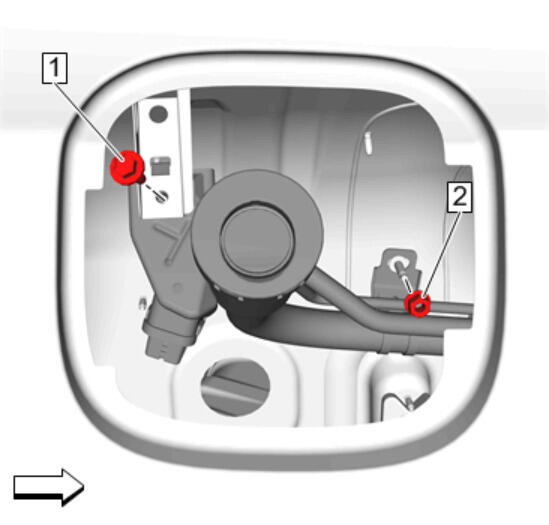

- Fuel Tank Filler Pipe Nut (2) - Install 9 N.m (80 lb in)
- Fuel Tank Filler Pipe Bolt (1) - Install 9 N.m (80 lb in)
- Evaporative Emission Canister Filter Pipe Replacement @ Evaporative Emission Canister - Connect
- Rear Wheelhouse Liner Replacement - Install
- Fuel Tank Filler Pipe Housing Replacement - Install
