Heated Oxygen Sensor Replacement - Sensor 2

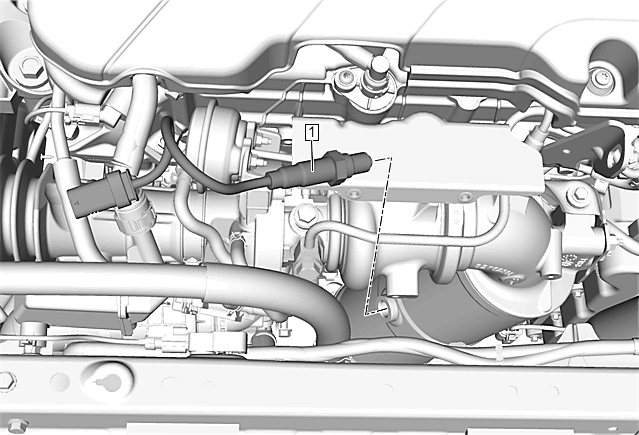

Fig 1: Heated Oxygen Sensor - Sensor 2

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9)Battery Negative Cable Disconnection and Connection (with KL9) Turbocharger Heat Shield Replacement
1	Heated Oxygen Sensor CAUTION: Refer to Component Fastener Tightening Caution . CAUTION: Refer to Heated Oxygen and Oxygen Sensor Caution . CAUTION: Refer to Silicon Contamination of Heated Oxygen Sensors Caution . CAUTION: Refer to Heated Oxygen Sensor Resistance Learn Reset Caution . CAUTION: A special anti-seize compound is used on the oxygen sensor threads. New service sensors should already have the compound applied to the threads. Coat the threads of a reused sensor with anti-seize compound P/N 5613695 or equivalent. Procedure Disconnect the electrical connector. When the replacement is completed, use a scan tool to perform the appropriate reset functions. Refer to K20 Engine Control Module: Programming and Setup Tighten 42 N.m (31 lb ft) Special Tools EN-48259 Heated Oxygen Sensor Remover/Installer Equivalent regional tools:Special Tools (Diagnostic Tools)Special Tools (Mechanical Tools)

Callout

Component Name

WARNING: Refer to Exhaust Service Warning .

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9)Battery Negative Cable Disconnection and Connection (with KL9)
Turbocharger Heat Shield Replacement

Heated Oxygen Sensor

CAUTION: Refer to Component Fastener Tightening Caution .

CAUTION: Refer to Heated Oxygen and Oxygen Sensor Caution .

CAUTION: Refer to Silicon Contamination of Heated Oxygen Sensors Caution .

CAUTION: Refer to Heated Oxygen Sensor Resistance Learn Reset Caution .

CAUTION: A special anti-seize compound is used on the oxygen sensor threads. New service sensors should already have the compound applied to the threads. Coat the threads of a reused sensor with anti-seize compound P/N 5613695 or equivalent.

Procedure

Disconnect the electrical connector.
When the replacement is completed, use a scan tool to perform the appropriate reset functions. Refer to K20 Engine Control Module: Programming and Setup

Tighten
42 N.m (31 lb ft)
Special Tools
EN-48259 Heated Oxygen Sensor Remover/Installer
Equivalent regional tools:Special Tools (Diagnostic Tools)Special Tools (Mechanical Tools)
