Engine Components - Right Rear (LKN)

Engine Components - Right Rear (LKN)

Items
1: G36 Auxiliary Heater Coolant Pump (KL9/HP4) G36 Auxiliary Heater Coolant Pump (LFV/LKN)
2: B1C A/C Low Side Pressure Sensor (LKN) B1C A/C Low Side Pressure Sensor

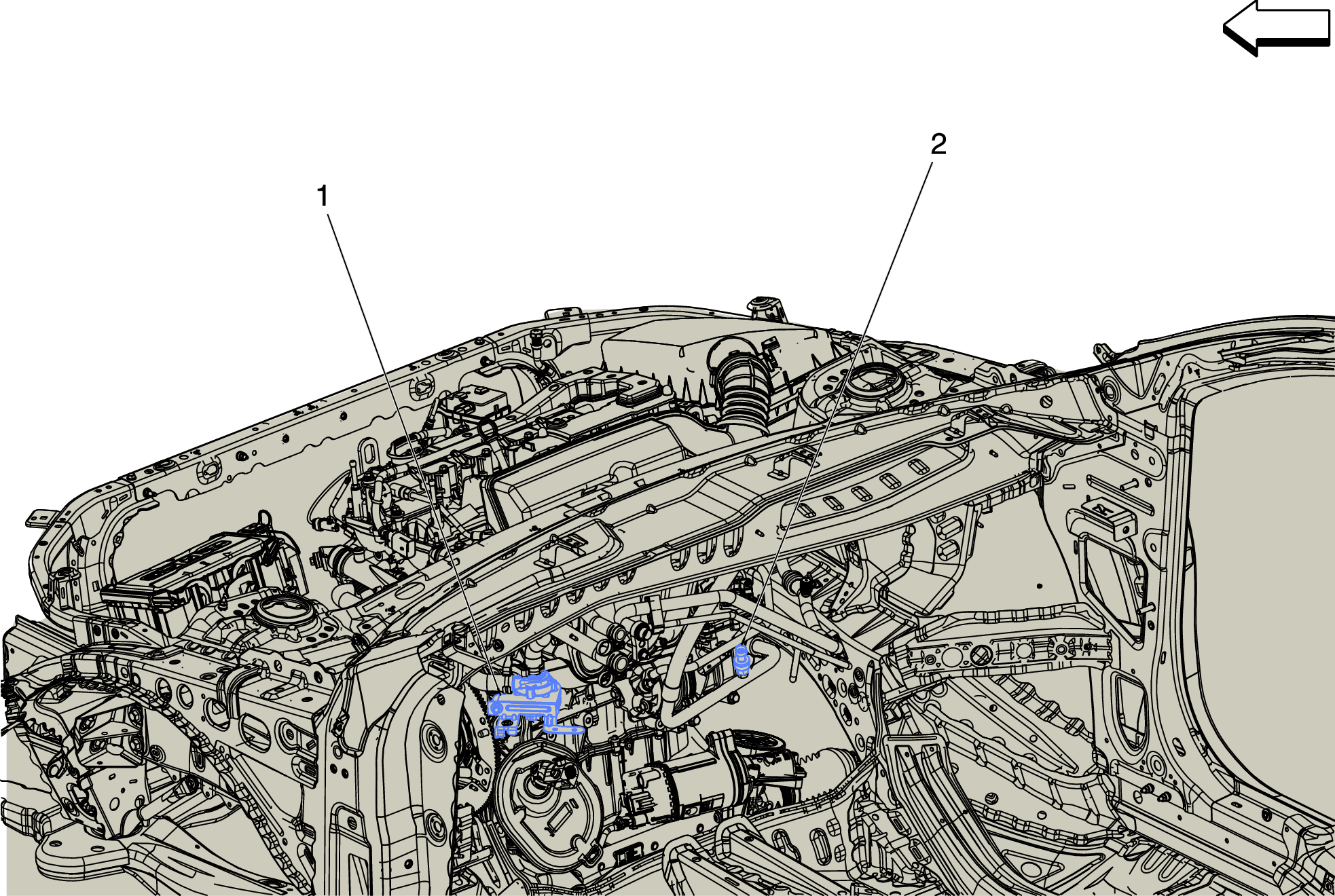

Fig 1: Engine Components - Right Rear (LKN)
GM4534693Courtesy of GENERAL MOTORS COMPANY
