Advanced Parking Assist Alarm Sensor Replacement (Rear)

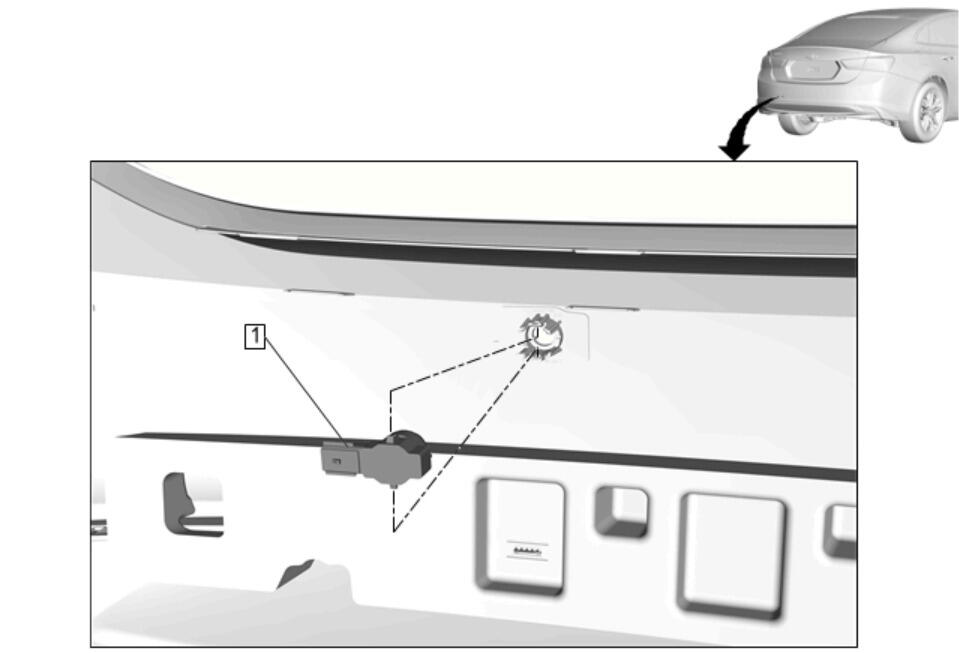

Fig 1: Advance Parking Assist Alarm Sensor (Rear)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Replacement (Single Tail Pipe)Rear Bumper Fascia Replacement (Dual Tail Pipe)
1	Advance Parking Assist Alarm Sensor [2x] Procedure Disconnect the electrical connector. Release the locking tab from the advance parking assist alarm sensor bracket. NOTE: Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative

Callout

Component Name

Advance Parking Assist Alarm Sensor [2x]

Procedure

NOTE: Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative
