Mobile Telephone Microphone Replacement

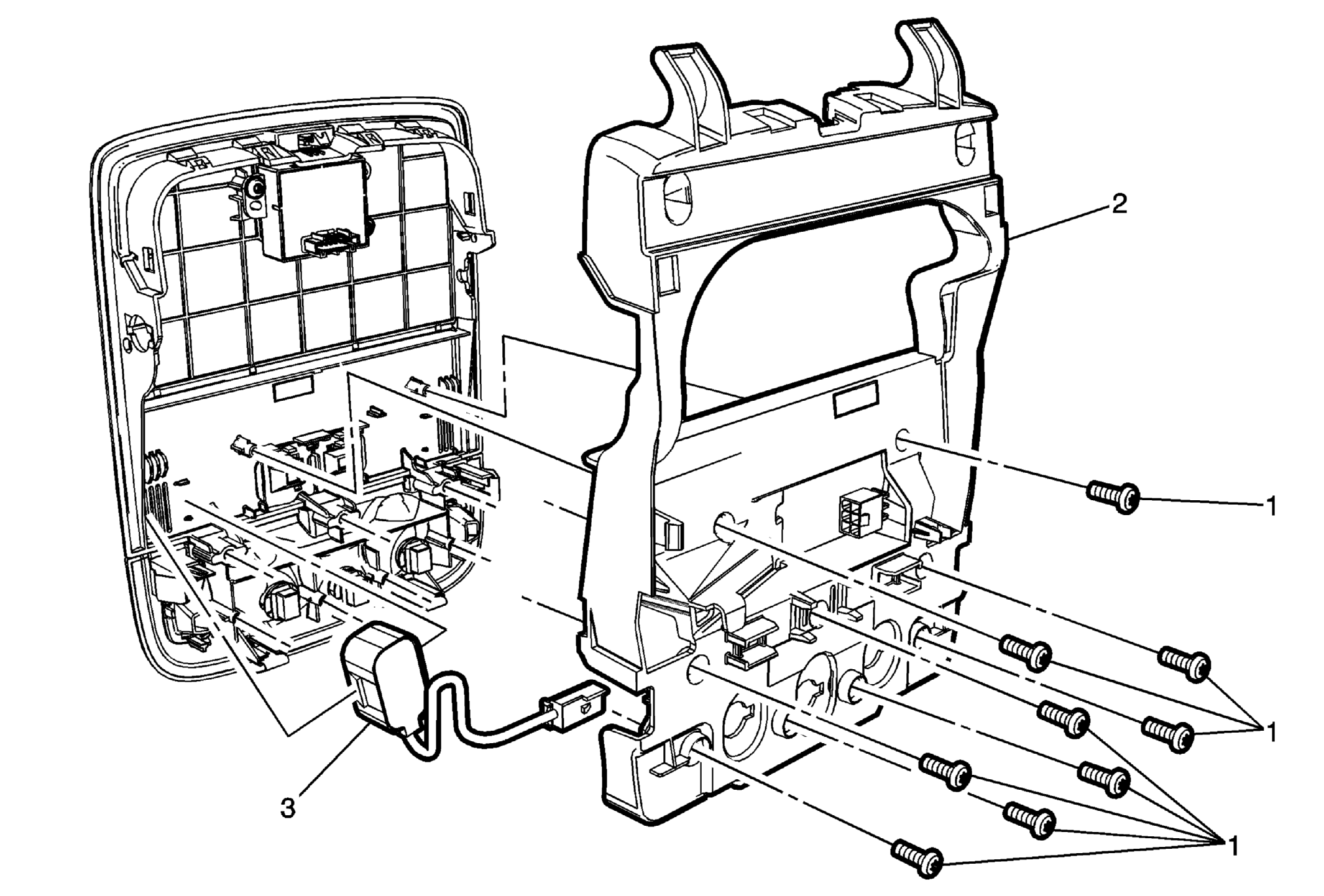

Fig 1: Mobile Telephone Microphone

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the roof console. Refer to Roof Console Replacement (Without Sunroof)Roof Console Replacement (With Sunroof) .
1	Roof Console Back Cover Fasteners (Qty: 9) CAUTION: Refer to Fastener Caution .
2	Roof Console Back Cover
3	Mobile Telephone Microphone
