Radio Antenna Cable Extension Cable Replacement

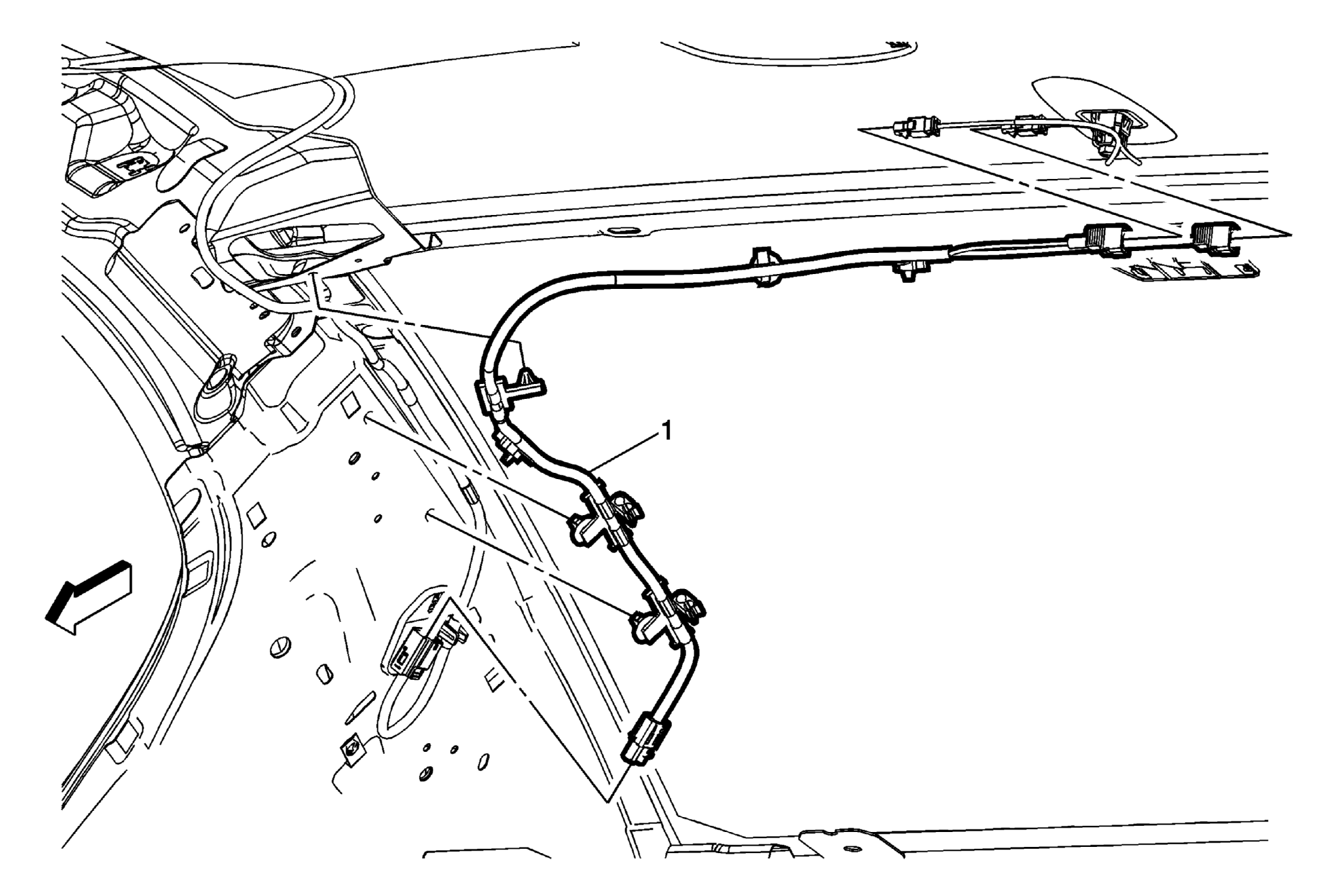

Fig 1: Radio Antenna Cable Extension Cable
GM3290461Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the body lock pillar upper trim panel. Refer to Body Lock Pillar Upper Trim Panel Replacement .
  2. Lower the rear of the headliner as needed. Refer to Headlining Trim Panel Replacement .
1 Radio Antenna Cable Extension Cable

Procedure

  1. Disconnect the electrical connectors at each end of the antenna and unclip cable tabs from structure.
  2. If the antenna cable is taped into the wiring harness then cut the ends off the old antenna and route the new antenna as close to the old one as possible using tie straps to secure the new cable.
