Radio Speaker Amplifier Replacement

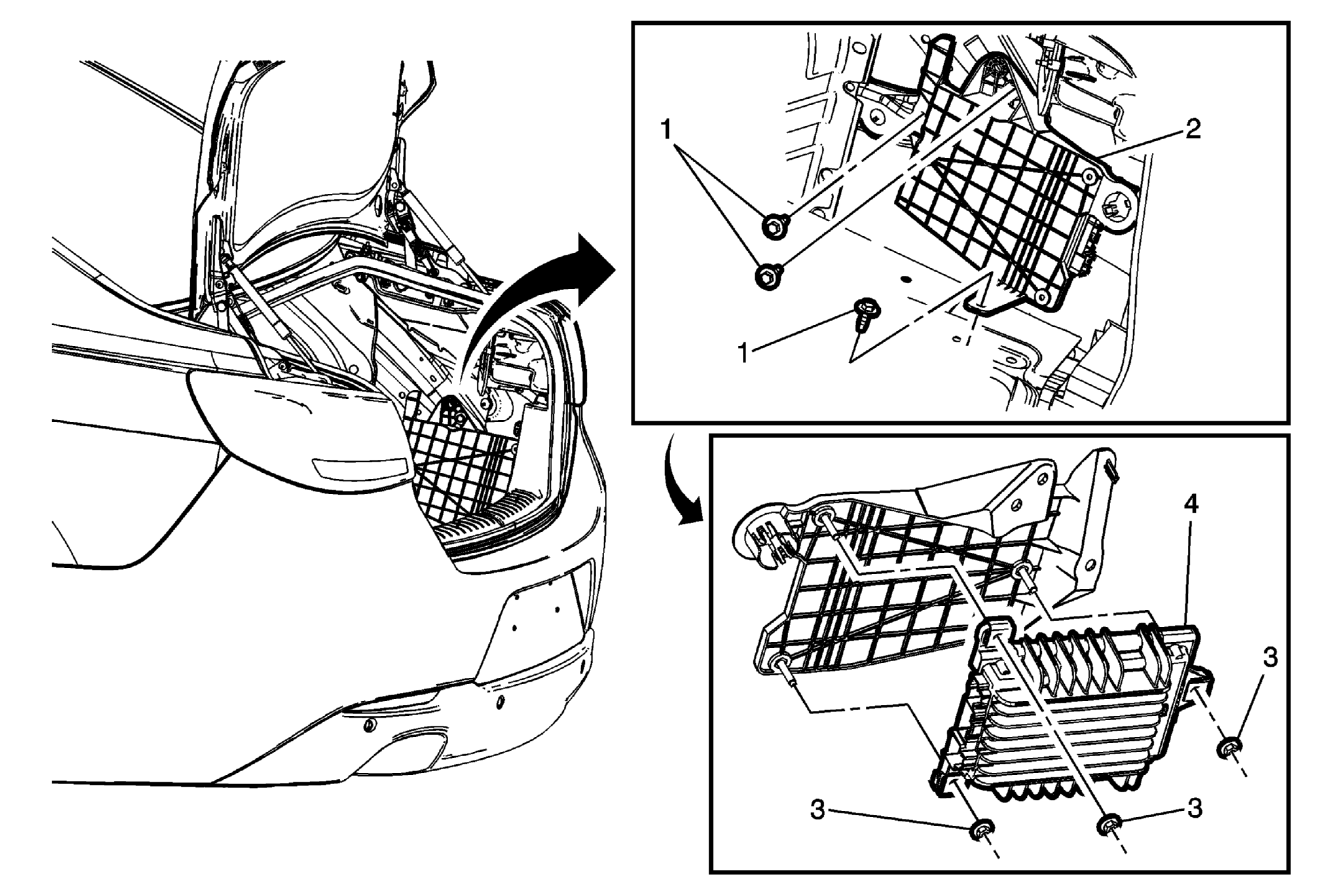

Fig 1: Radio Speaker Amplifier

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment side trim panel - right side. Refer to Rear Compartment Side Trim Panel Replacement (Left Side)Rear Compartment Side Trim Panel Replacement (Right Side) .
1	Radio Speaker Amplifier Bracket Bolts (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Radio Speaker Amplifier Bracket
3	Radio Speaker Amplifier Nuts (Qty: 3) Tighten 9 N.m (80 lb in)
4	Radio Speaker Amplifier Procedure Disconnect the electrical connectors. For programming and set up information, refer to Control Module References .
