Trailer Brake Control Switch Replacement

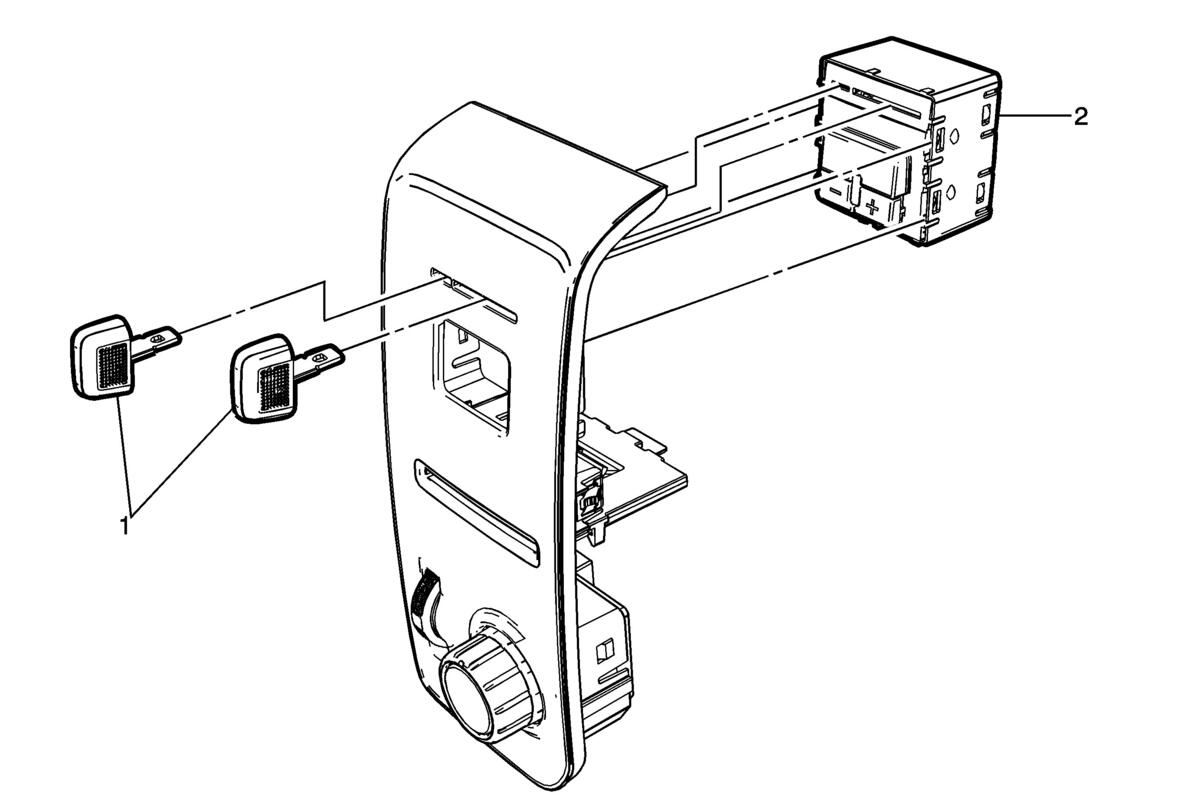

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement . |
|
| 1 | Trailer Brake Control Switch Levers Procedure Gently pull levers from switch assembly. |
| 2 | Trailer Brake Control Switch Procedure Using the appropriate tool gently depress tabs to remove the switch assembly from the instrument panel applique. |
