Installation Procedure

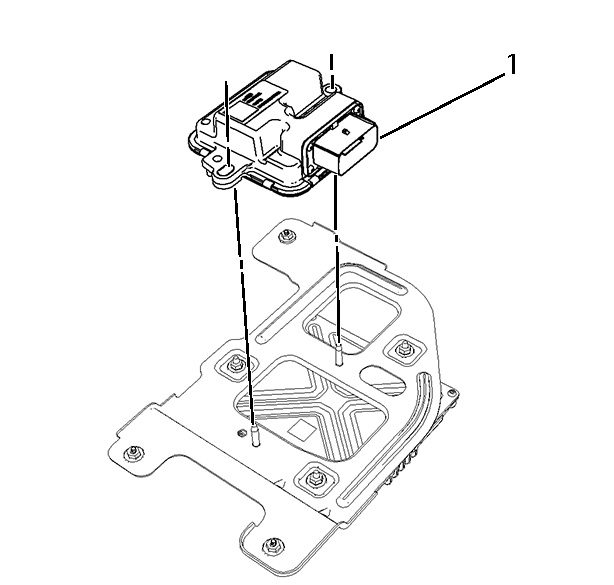

- Install the trailer brake power control module (1) to the bracket.

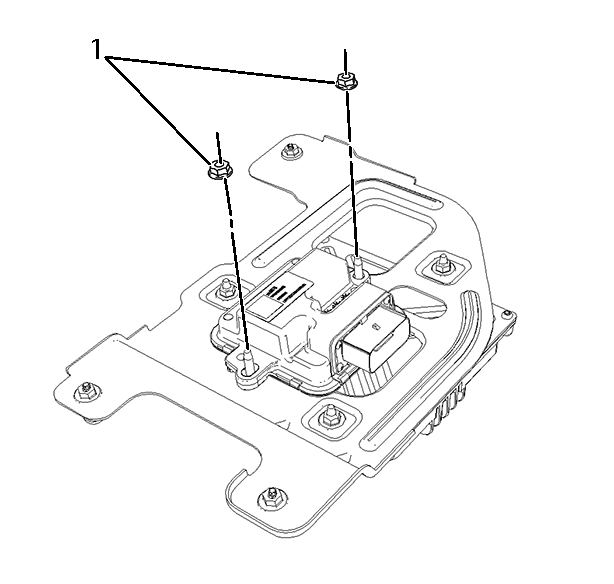

- Install the trailer brake power control module nuts (1) and tighten to 9 (80 lb in).
- Install the chassis control and trailer brake power control module bracket assembly to the frame.
- Slide the chassis control and trailer brake power control module bracket assembly fully into the slotted holes of the vehicle frame.
- Tighten the chassis control and trailer brake power control module bracket bolts (1) to 9 (80 lb in).
- Connect the chassis control and trailer brake power control module electrical connectors.
- Raise and secure the spare tire and wheel assembly.
- If installing a new trailer brake power control module, program the module. Control Module References
CAUTION:
Refer to Fastener Caution .
