Module Power, Ground, and Subsystem References

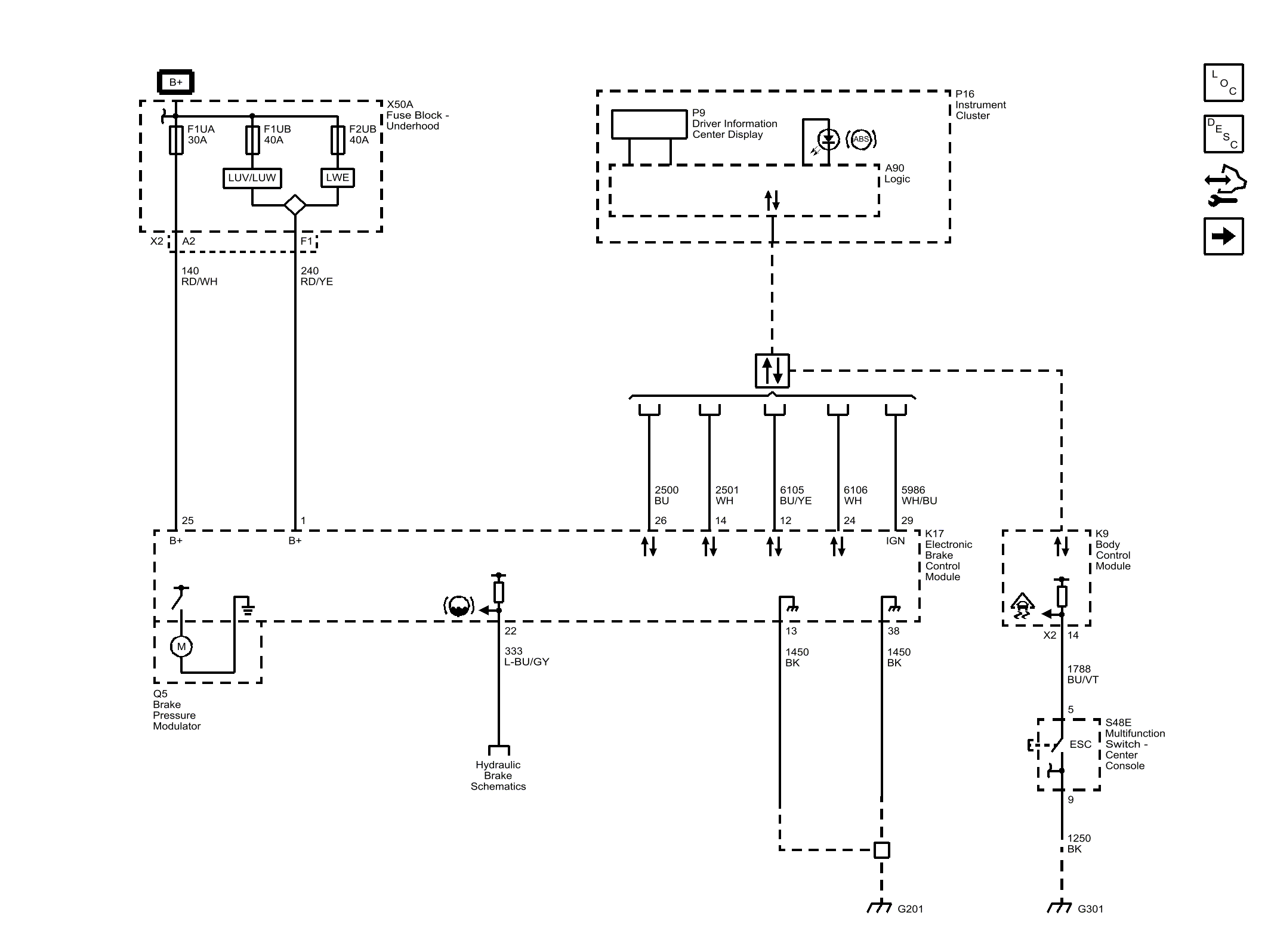

Fig 1: Module Power, Ground, and Subsystem References
GM4427154Courtesy of GENERAL MOTORS COMPANY
