Component Locator - Electrical Center Identification Views
>>
Electrical Center Identification Views
>>
X51A Fuse Block - Instrument Panel Label
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
X51A Fuse Block - Instrument Panel Label

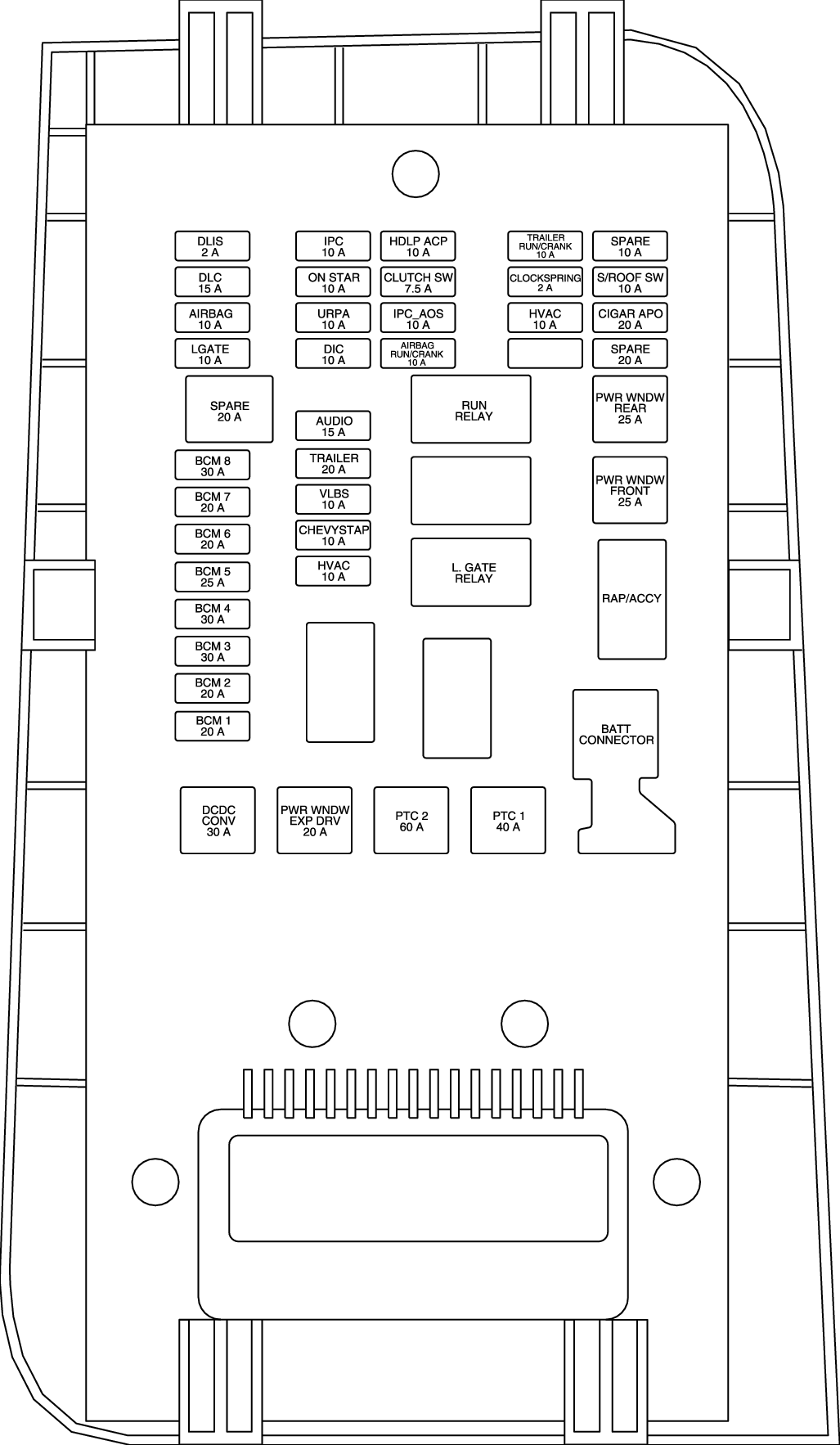

Fig 1: X51A Fuse Block -- Instrument Panel Label
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
