Folding 3rd Row Seat Module Replacement

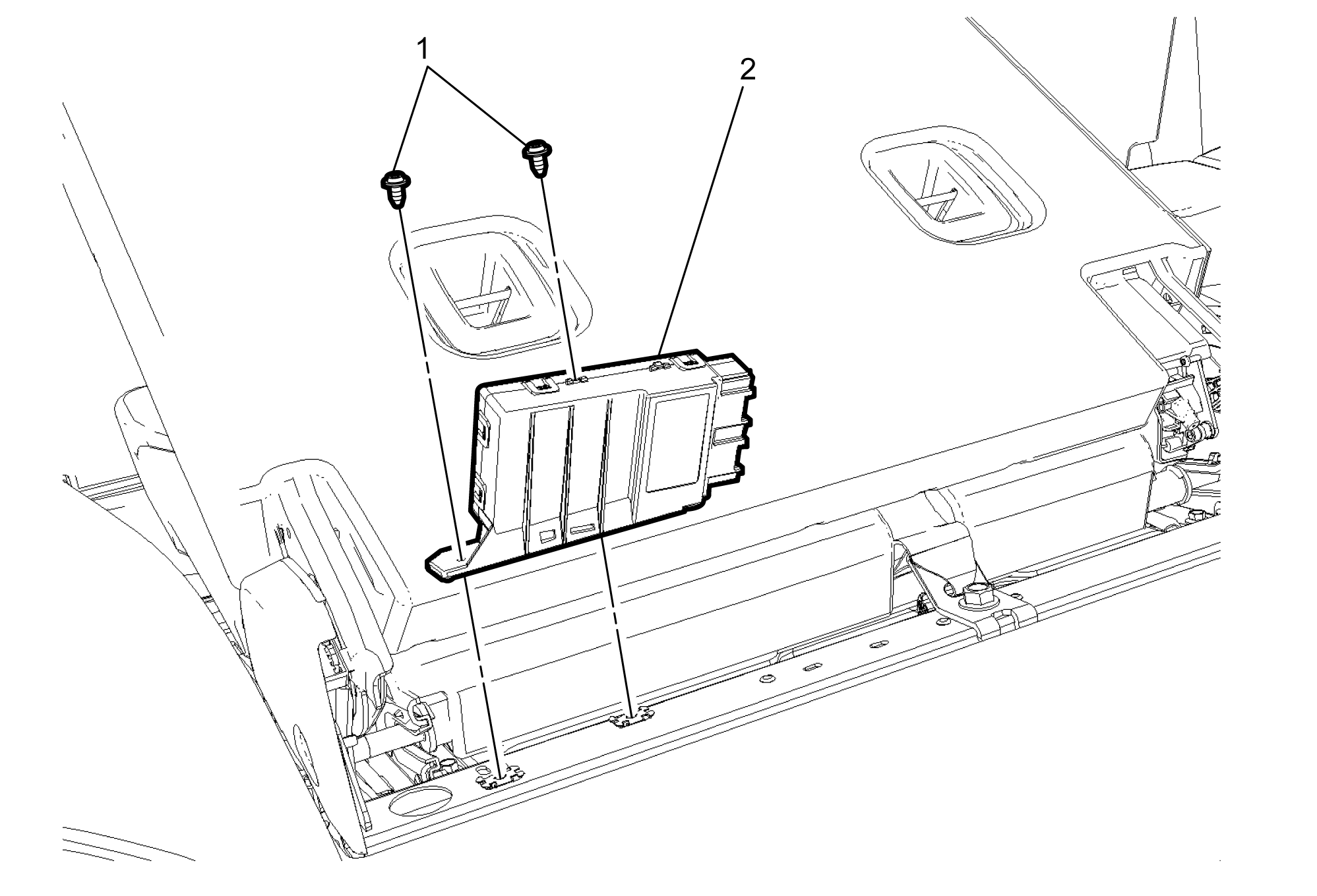

Fig 1: Folding 3rd Row Seat Module
GM3657612Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Fold the 3rd row 60% seat forward.
  2. Remove the rear compartment floor stowage trim compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement (Standard Wheelbase)Rear Compartment Floor Stowage Trim Compartment Replacement (Extended Wheelbase) .
1 Folding 3rd Row Seat Module Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Folding 3rd Row Seat Module

Procedure

  1. Disconnect the electrical connectors.
  2. After the installation is complete, perform the Diagnostic System Check - Vehicle .
