Liftgate Lock Striker Replacement

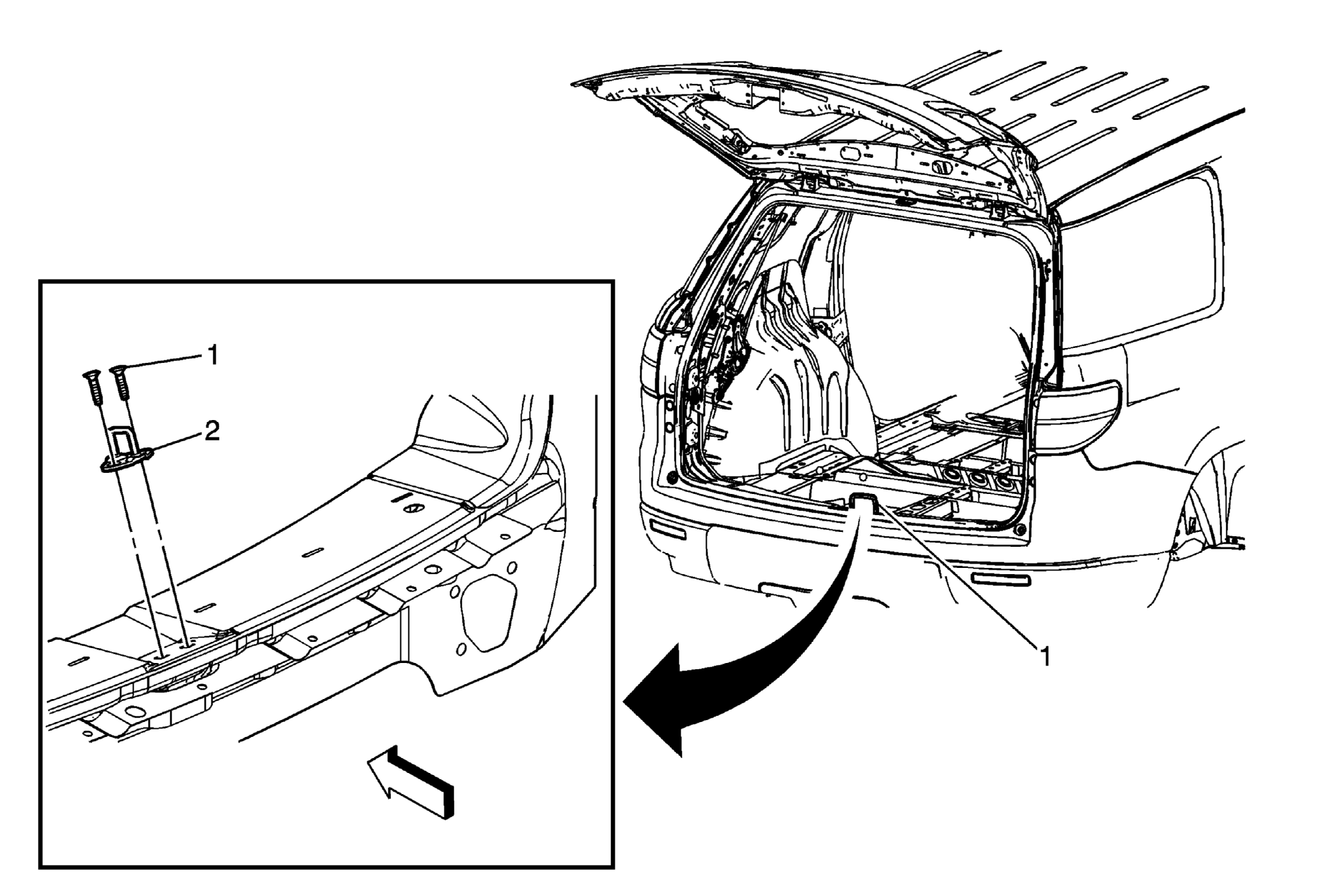

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove Liftgate Door Sill Plate. Refer to Liftgate Door Sill Plate Replacement (Enclave)Liftgate Door Sill Plate Replacement (Traverse)Liftgate Door Sill Plate Replacement (Acadia) |
|
| 1 | Liftgate Lock Striker Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 2 | Liftgate Lock Striker Procedure Mark the location of the striker with a grease pencil to ensure proper alignment during installation. |
