Frame Brace Replacement

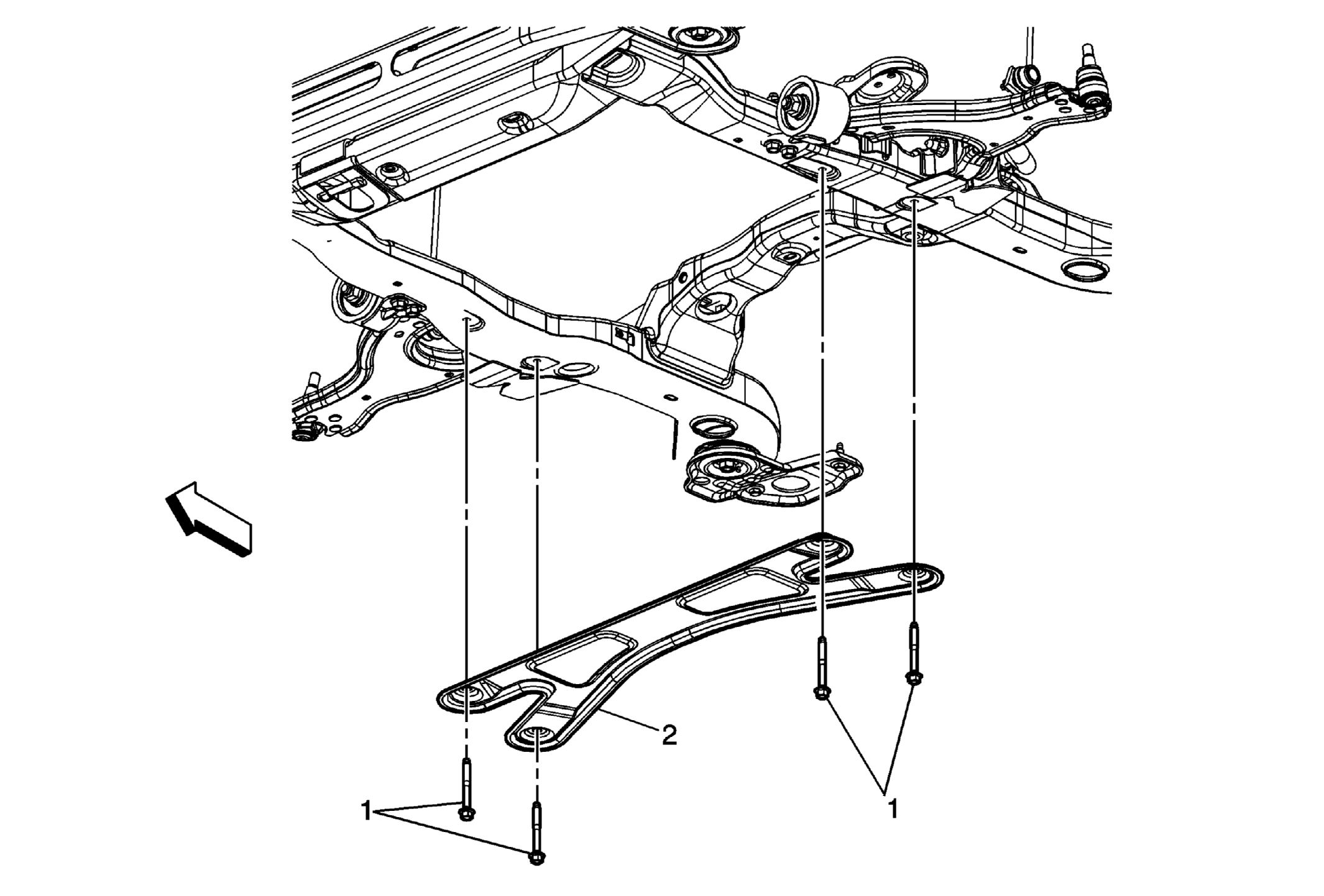

Fig 1: Frame Brace

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Frame Brace Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 60 N.m (44 lb ft)
2	Frame Brace
