Installation Procedure

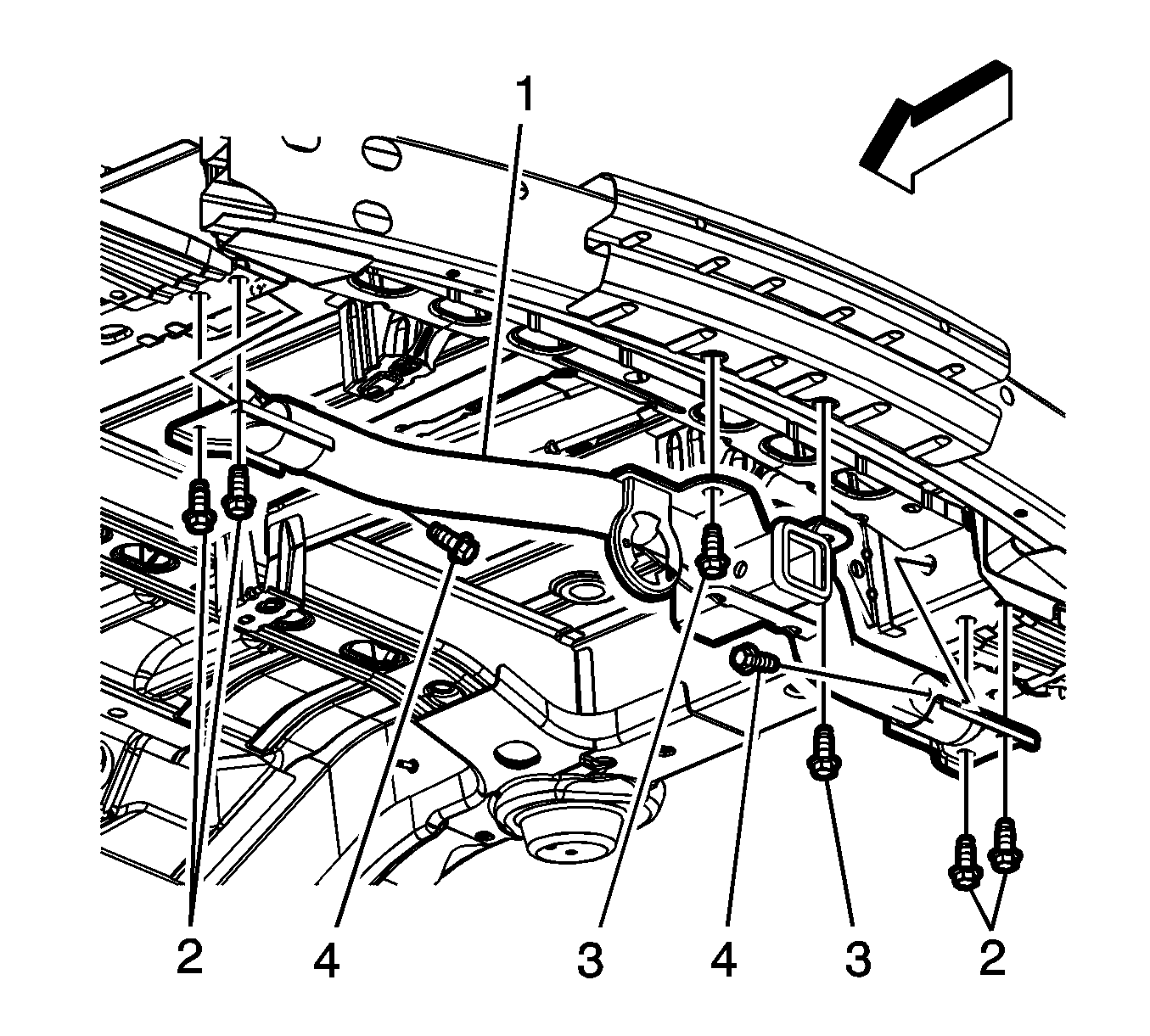

    Fig 1: Trailer Hitch Bolts & Trailer Hitch
    GM1852429Courtesy of GENERAL MOTORS COMPANY
  1. Install the trailer hitch (1).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the trailer hitch bolts (2 - 4).

    Tighten

    Tighten the bolts to 108 N.m (80 lb ft).

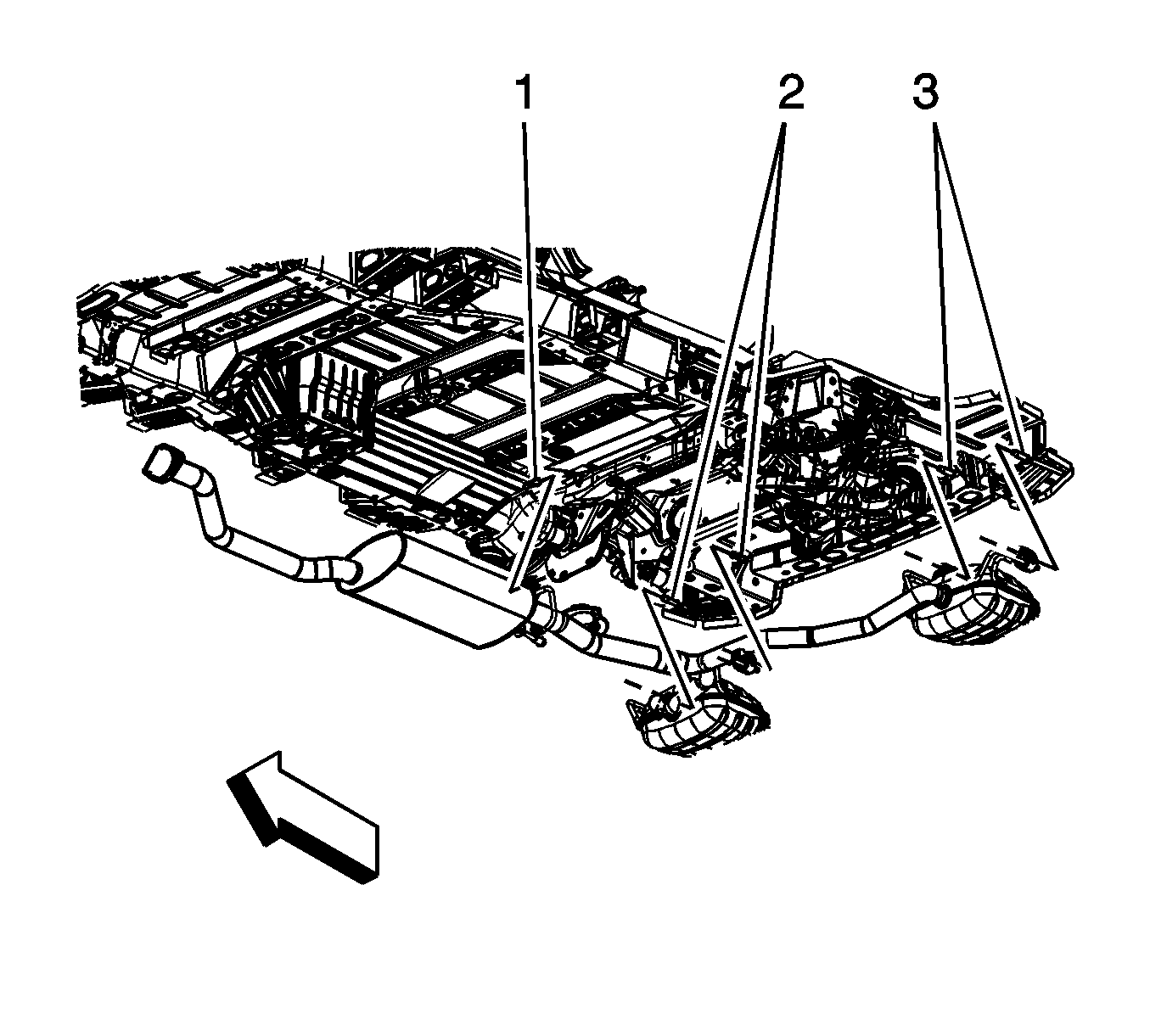

    3. Fig 2: Exhaust Underbody Hangers
    GM1861487Courtesy of GENERAL MOTORS COMPANY
  3. If necessary raise the exhaust system by installing the rubber insulators to the exhaust underbody hangers (1. 2, and 3).

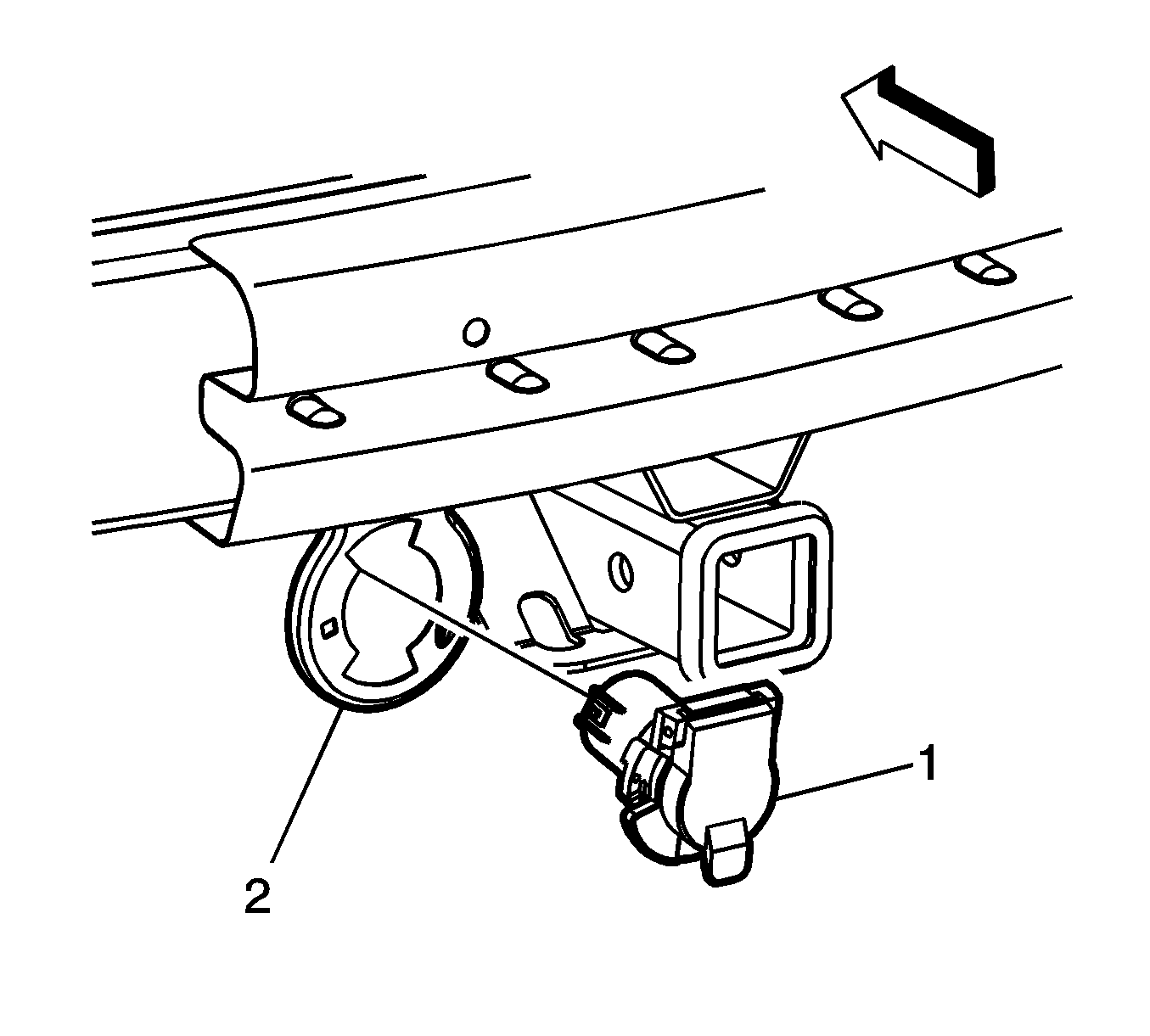

    4. Fig 3: Trailer Wire Harness Connector & Trailer Hitch
    GM1852428Courtesy of GENERAL MOTORS COMPANY
  4. If previously removed, install the trailer wire harness connector (1) to the trailer hitch (2).

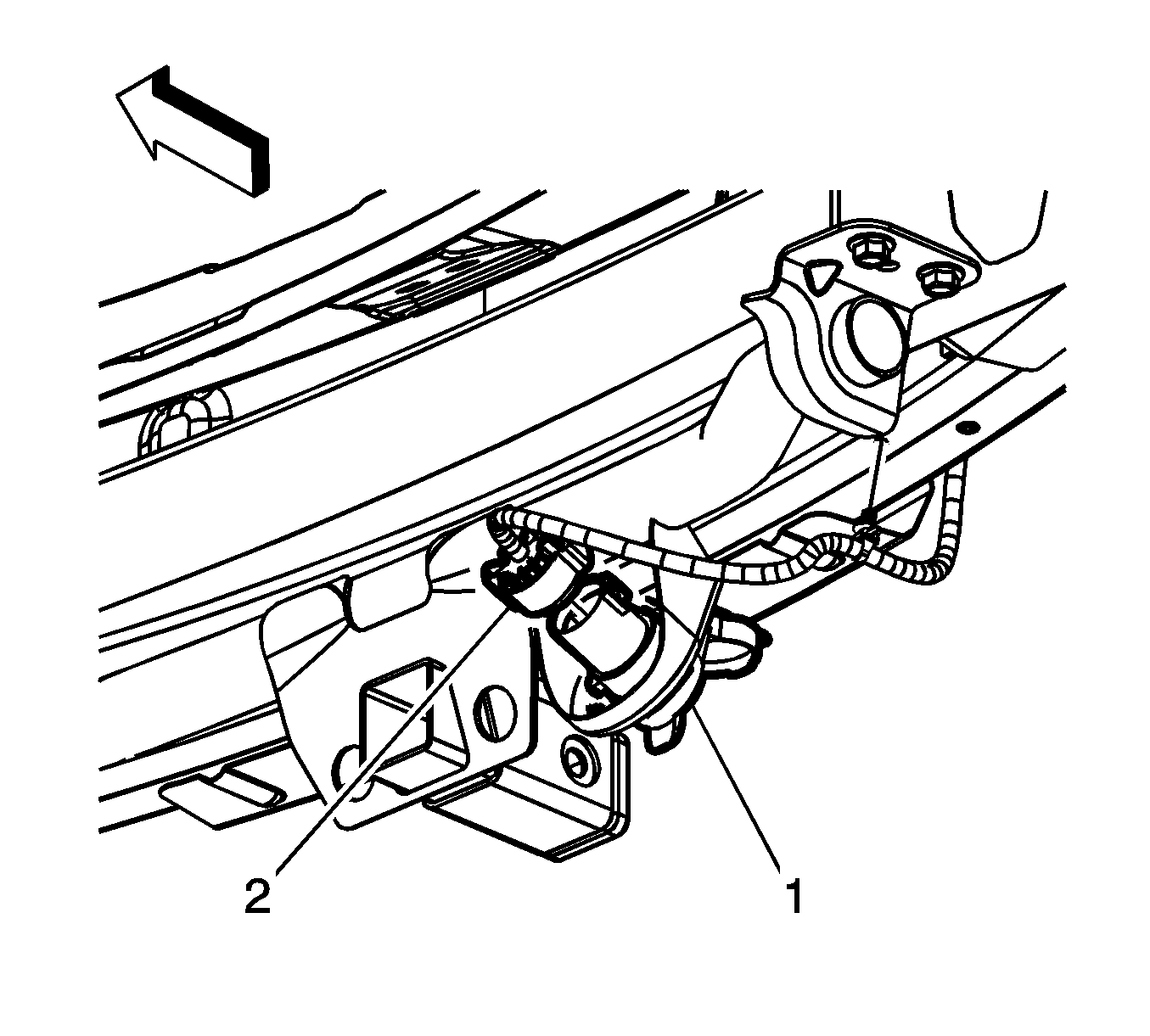

    5. Fig 4: Body Wire Harness & Trailer Wire Harness Connector
    GM1852427Courtesy of GENERAL MOTORS COMPANY
  5. Connect the body wire harness (2) to the trailer wire harness connector (1).
  6. lower the vehicle.
