Parking Brake Indicator Switch Replacement

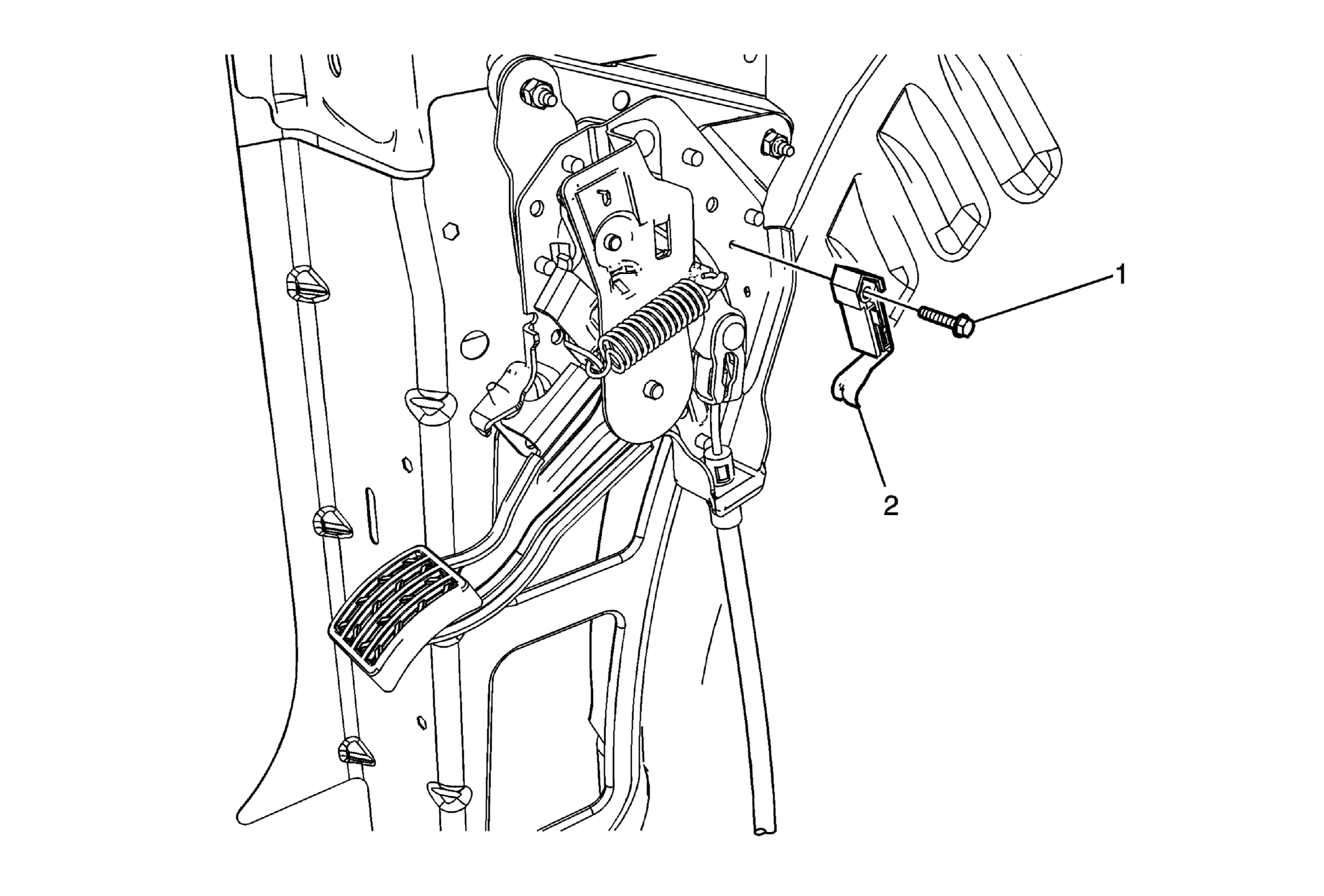

Fig 1: Parking Brake Indicator Switch

GM1862254

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the left side instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
Remove the driver side front carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement .
Disconnect the park brake warning indicator switch electrical connector.

1

Park Brake Warning Lamp Switch Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Park Brake Warning Lamp Switch
