120-Volt Accessory Power Receptacle Replacement

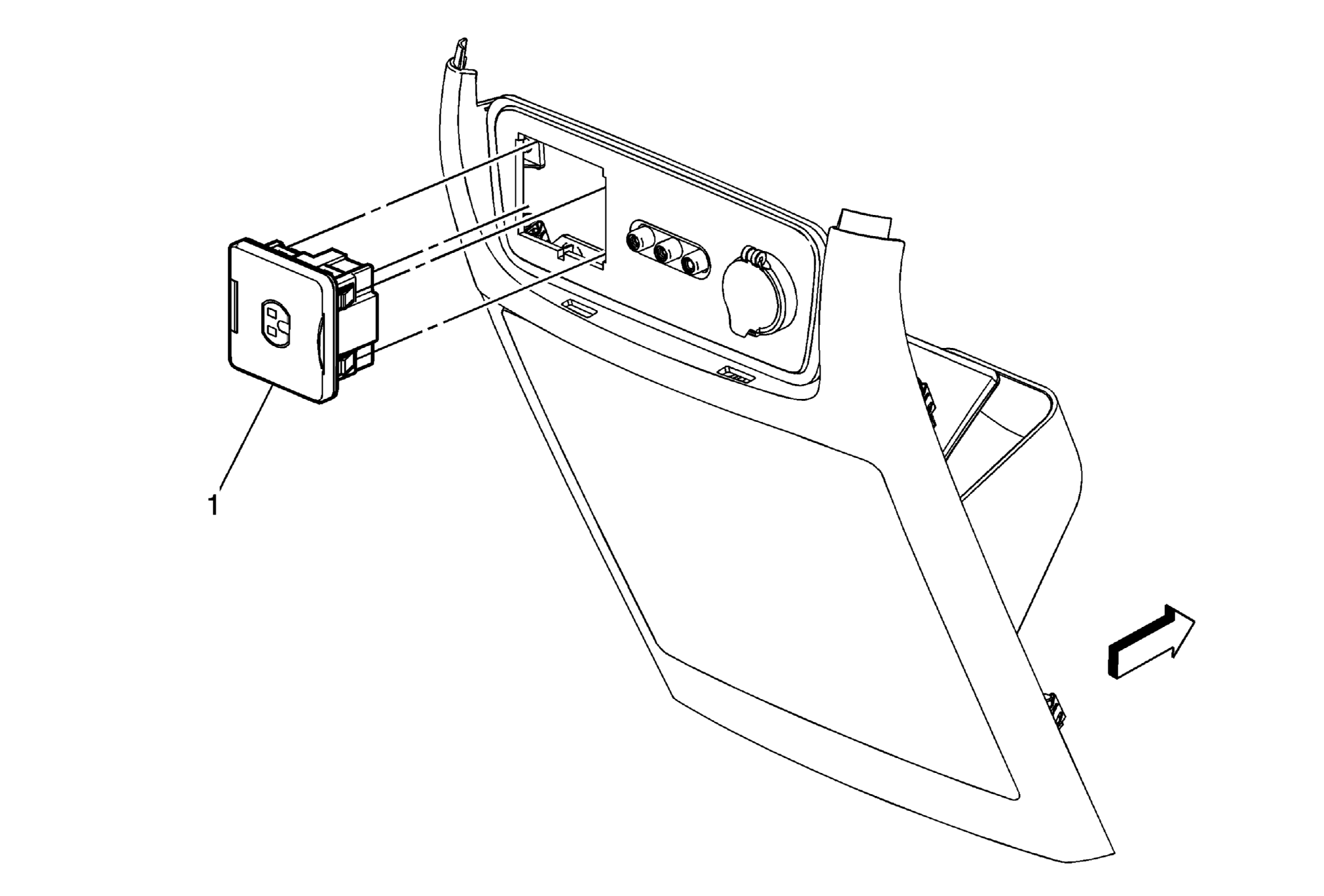

Fig 1: 120-Volt Accessory Power Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front floor console rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement .
1	Accessory Power Receptacle Assembly Procedure  Push in the 4 tabs to release the accessory power receptacle from the rear console trim plate.
