Installation Procedure

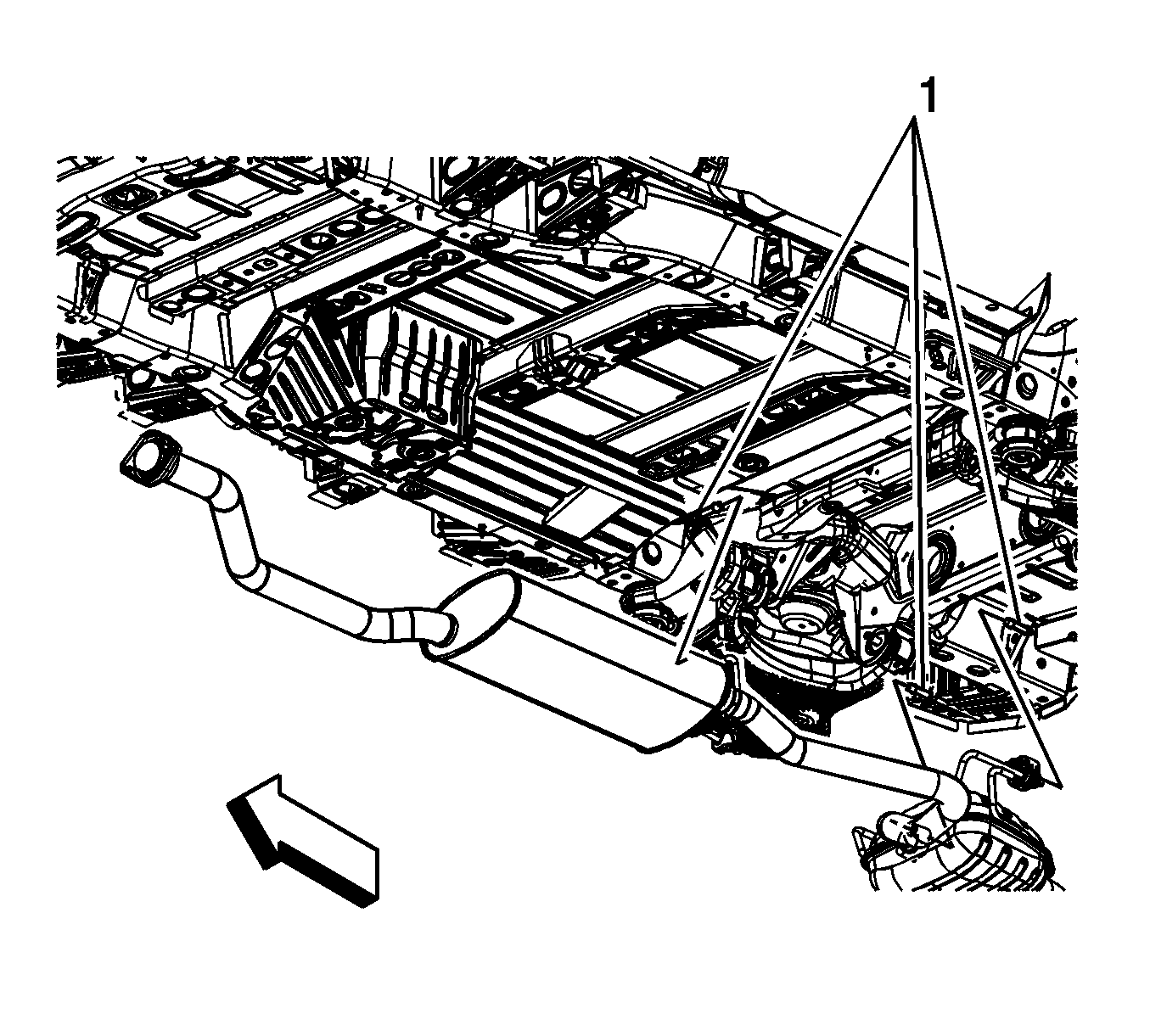

    Fig 1: Exhaust Underbody Hangers (NB5)
    GM1861484Courtesy of GENERAL MOTORS COMPANY
  1. With the aid of an assistant, install the muffler assembly to the vehicle and the exhaust flexible pipe.
  2. With the aid of an assistant, install the rubber insulators to the exhaust underbody hangers (1).

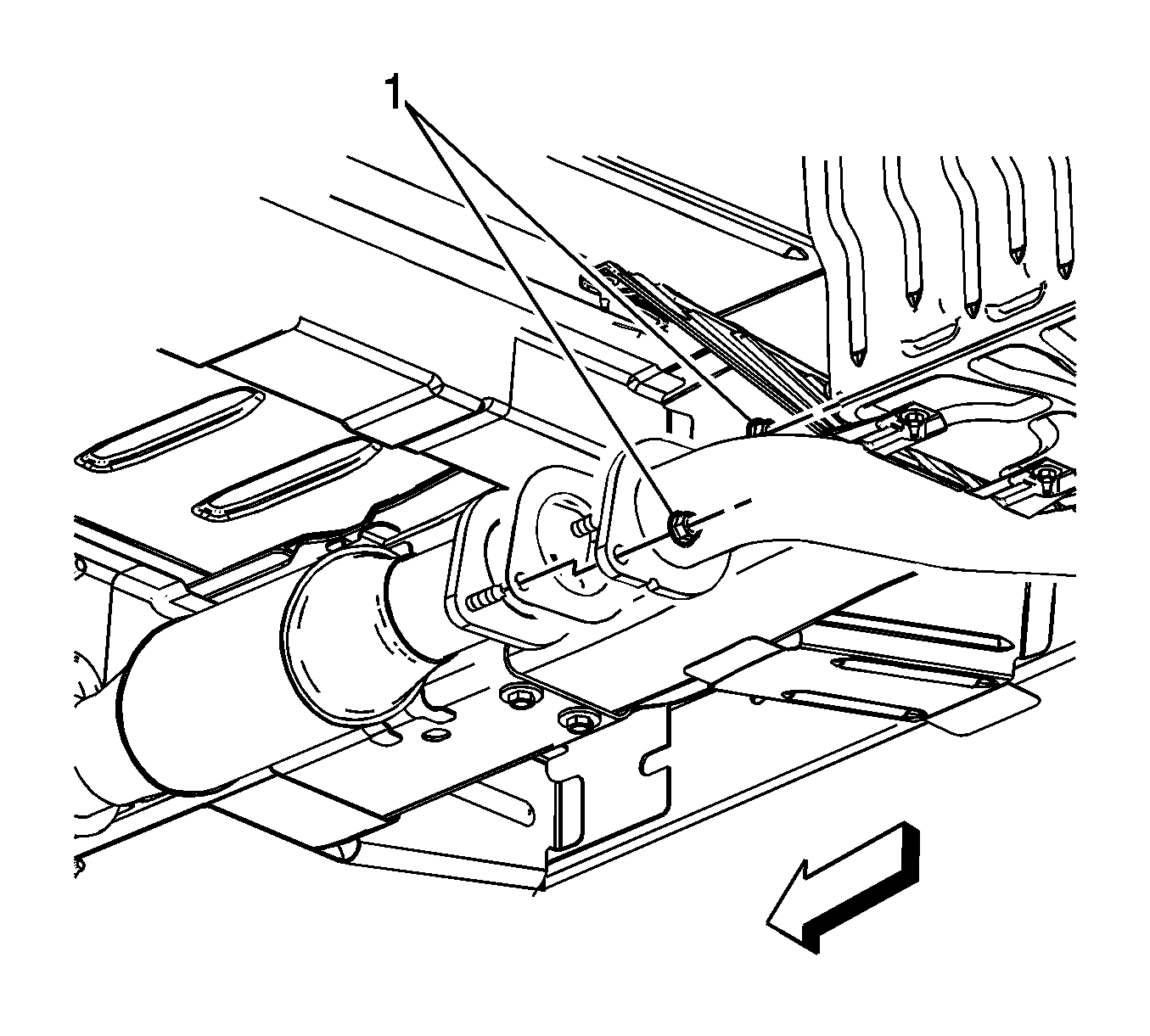

    3. Fig 2: Three Way Catalytic Converter-To-Muffler Pipe Nuts (NB5)
    GM2075491Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the three way catalytic converter to muffler piper nuts (1) and tighten to 50 N.m (37 lb ft).
  4. Lower the vehicle.
