Engine Controls And Fuel - 3.6L (LLT) - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Fuel Controls - EVAP Controls
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuel Controls - EVAP Controls

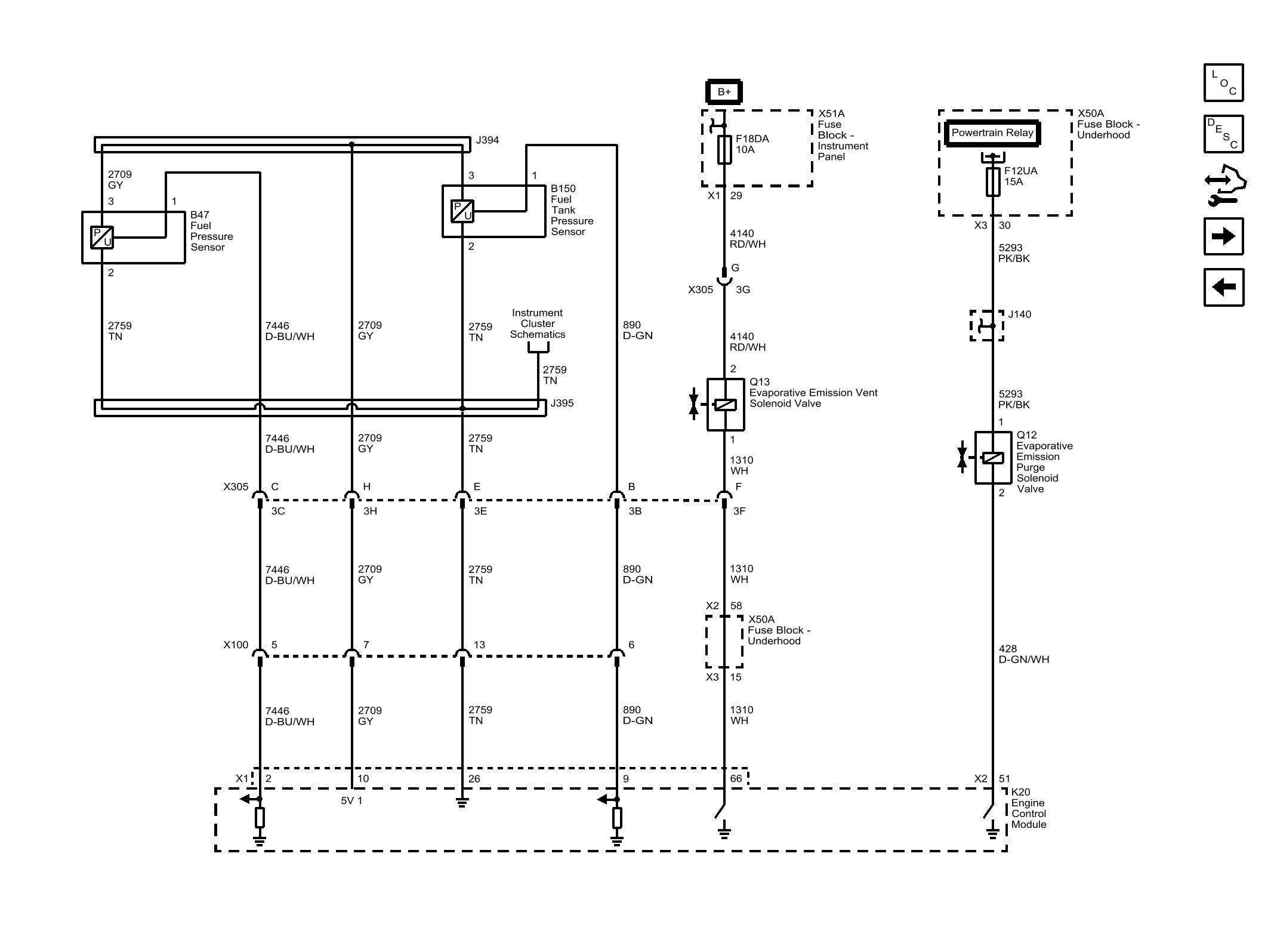

Fig 1: Fuel Controls - EVAP Controls
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
