Power Steering Fluid Reservoir Inlet Hose Replacement

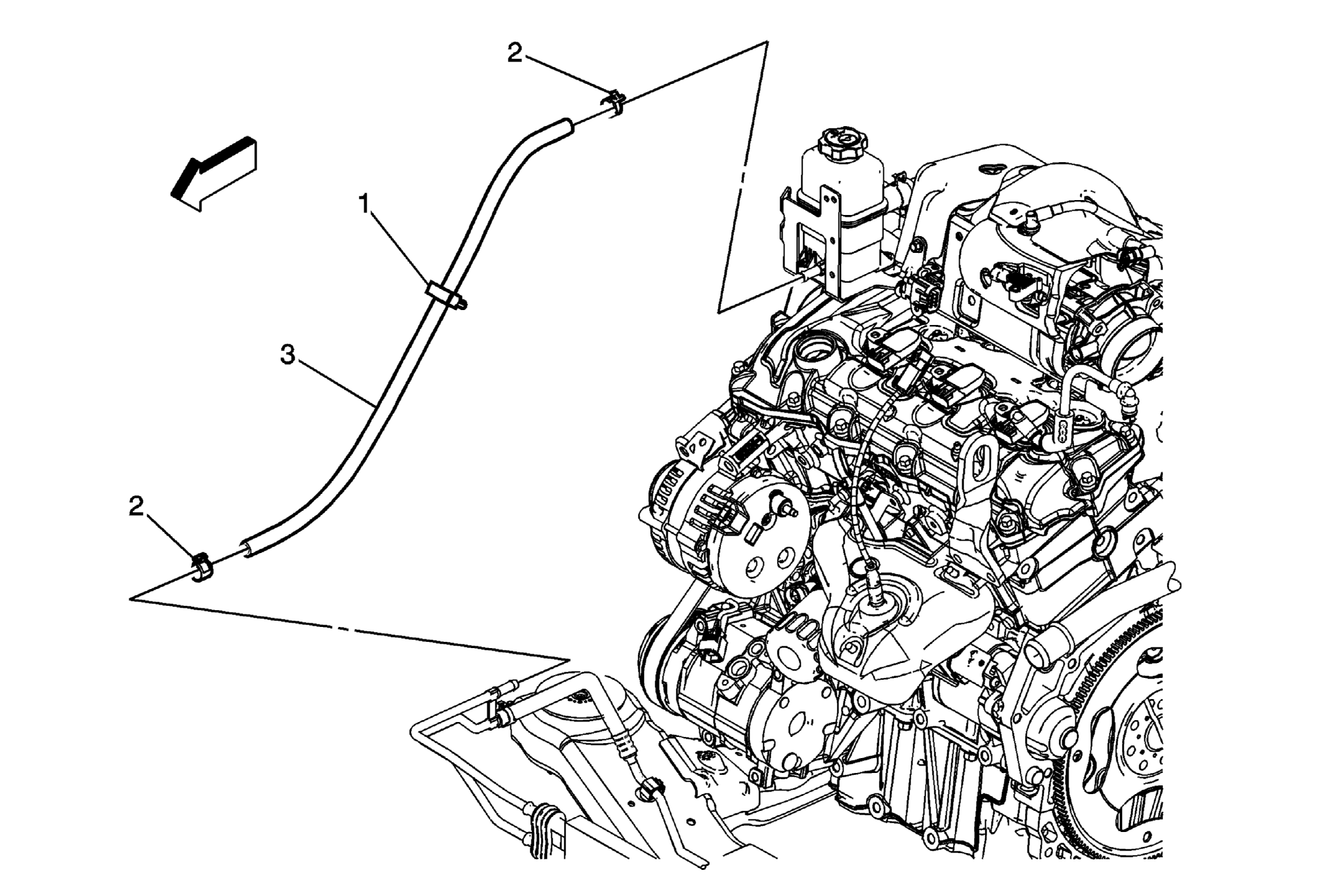

Fig 1: Power Steering Fluid Reservoir Inlet Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
1	Power Steering Reservoir Inlet Hose Clip
2	Power Steering Reservoir Inlet Hose Clamp (Qty: 2) Procedure Remove as much power steering fluid from the remote power steering fluid reservoir as possible. Place drain pans under the vehicle as needed.
3	Power Steering Reservoir Inlet Hose Procedure Clean any excess fluid from the vehicle and remove the drain pans. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
