Installation Procedure

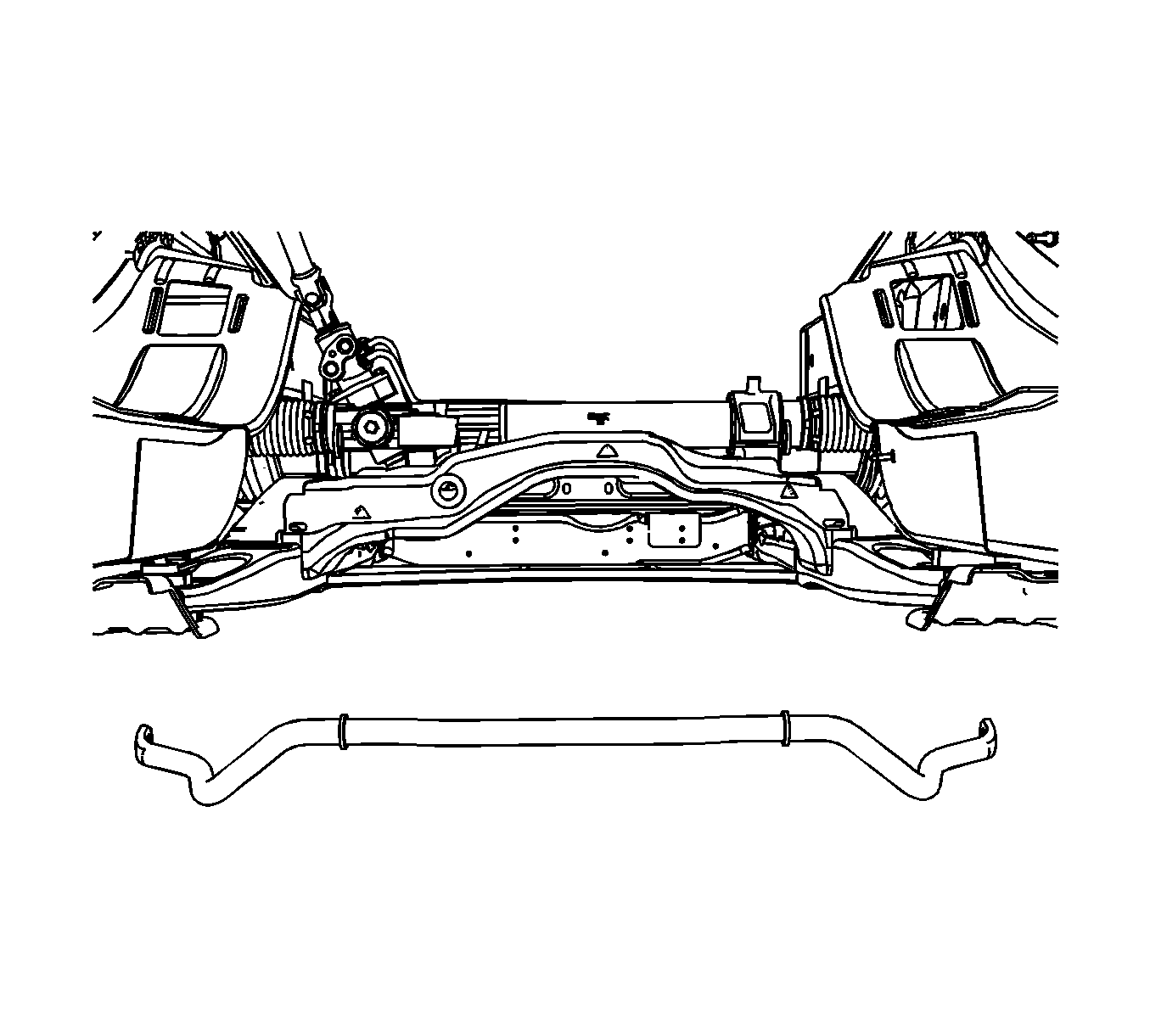

Fig 1: Positioning Stabilizer Shaft

Courtesy of GENERAL MOTORS COMPANY

NOTE:

If replacing the front stabilizer shaft, use NEW front stabilizer shaft insulators.

Install the front stabilizer shaft insulators and brackets. Stabilizer Shaft Insulator Replacement
Raise the drivetrain and front suspension frame to the vehicle body leaving a gap of approximately 12 mm (0.5 in).

Fig 2: Front Frame Mounting Bolts

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Install the front frame bolts (2). Drivetrain and Front Suspension Frame Replacement
Install the front frame reinforcement bolts (1). Drivetrain and Front Suspension Frame Replacement

Fig 3: Locating Rear Frame Mounting Bolts

Courtesy of GENERAL MOTORS COMPANY

Install the front frame rear bolts (1). Drivetrain and Front Suspension Frame Replacement

Fig 4: Frame Reinforcement Mounting Bolts

Courtesy of GENERAL MOTORS COMPANY

Install the left and right front frame reinforcement bolts. Drivetrain and Front Suspension Frame Replacement
Remove the adjustable stands.
Install the bolt for the intermediate shaft bracket to the front cradle. Front Wheel Drive Intermediate Shaft Replacement
{ If equipped } Install Propeller Shaft - Propeller Shaft Replacement
Install Front Stabilizer Shaft Link at Front Stabilizer Shaft - Stabilizer Shaft Link Replacement
Install Steering Linkage Outer Tie Rod at Steering Knuckle - Steering Linkage Outer Tie Rod Replacement
Install the front tire and wheel assemblies. Tire and Wheel Removal and Installation
Measure and adjust the wheel alignment. Wheel Alignment Measurement
