Installation Procedure

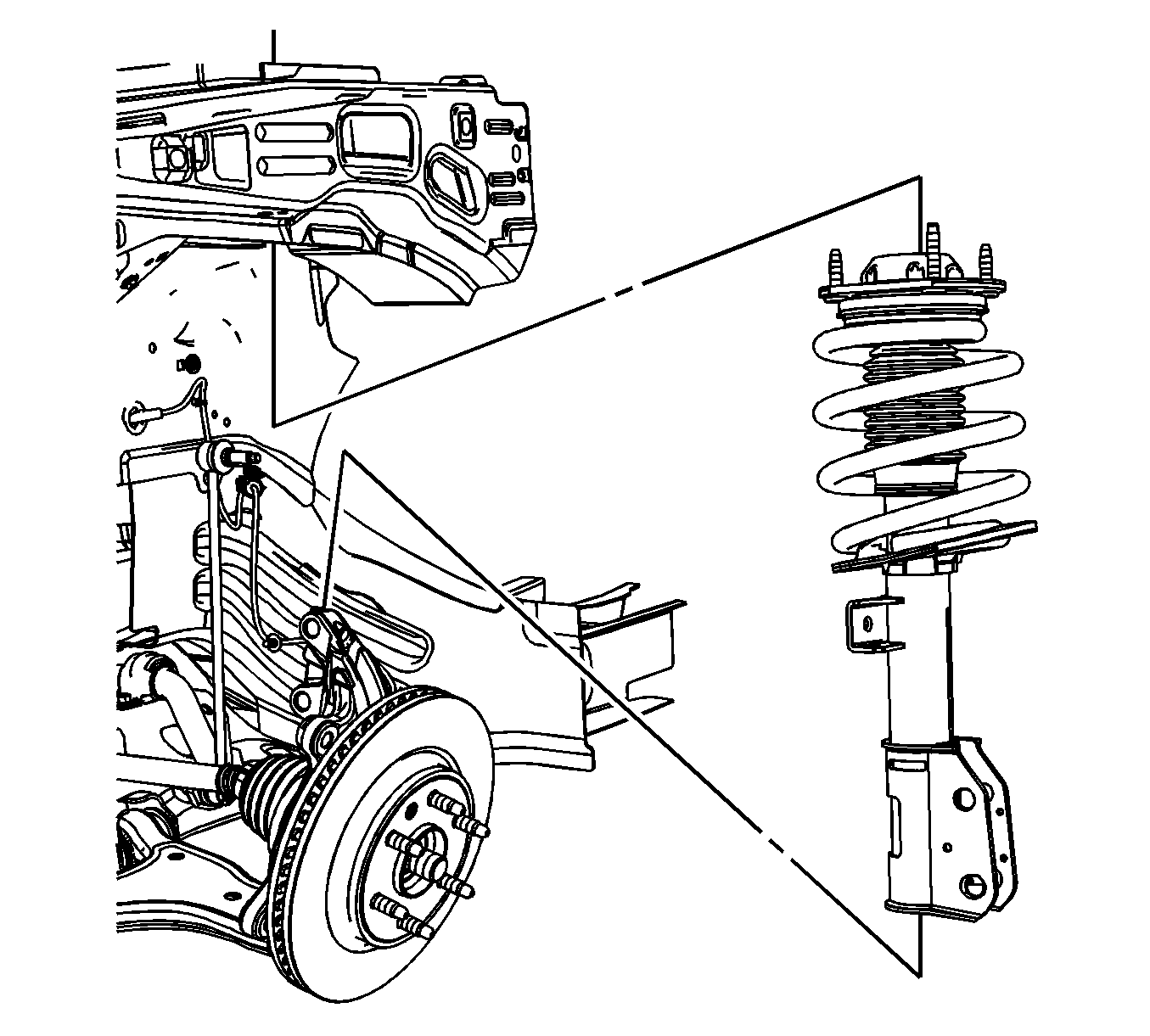

    Fig 1: Front Strut Assembly
    GM1852129Courtesy of GENERAL MOTORS COMPANY
  1. Position the front strut assembly on the vehicle.

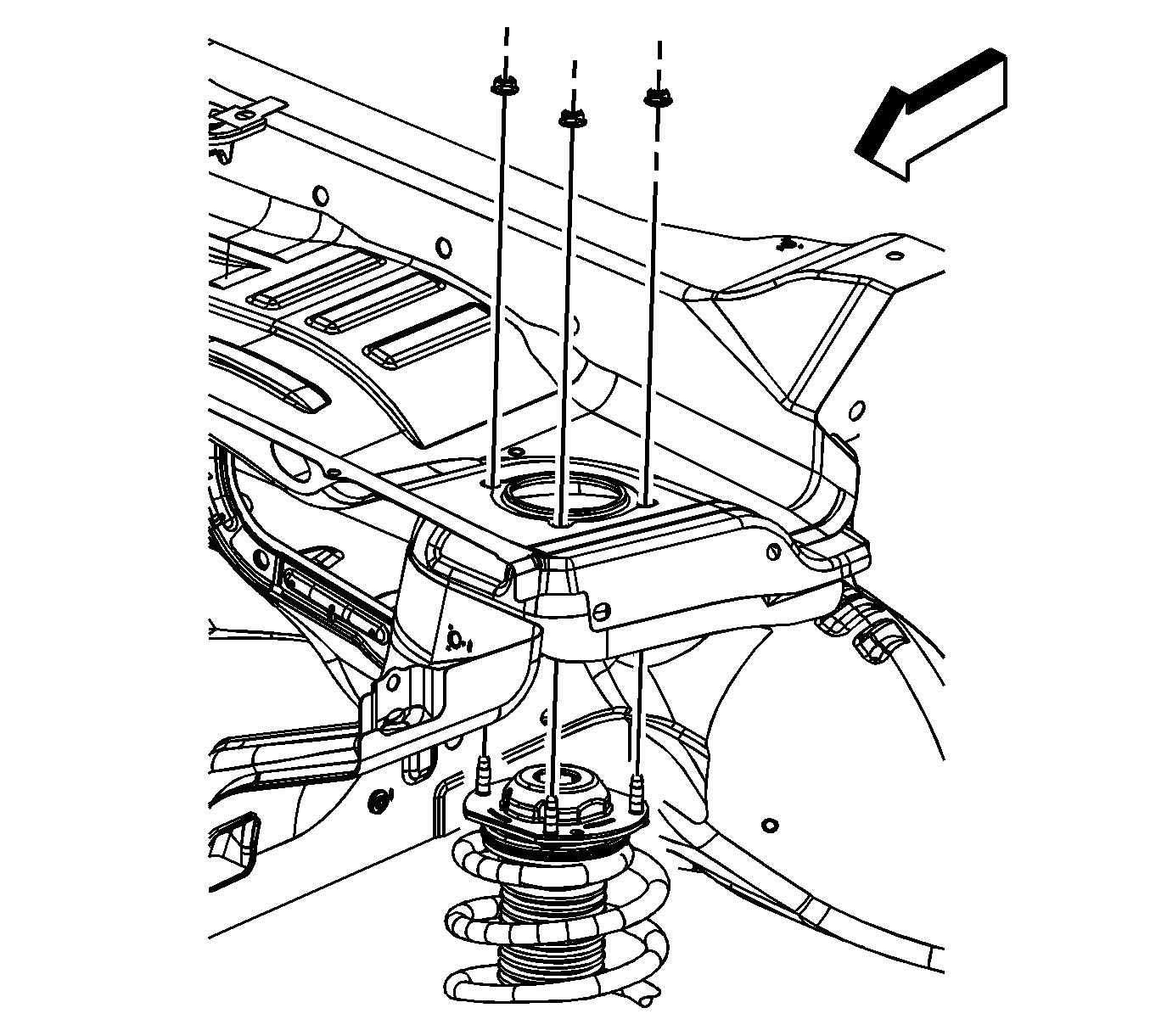

    2. Fig 2: Upper Strut Mounting Nuts
    GM1852028Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the front suspension shock absorber upper mounting nuts and tighten to 45 N.m (33 lb ft).
  3. Raise the vehicle.

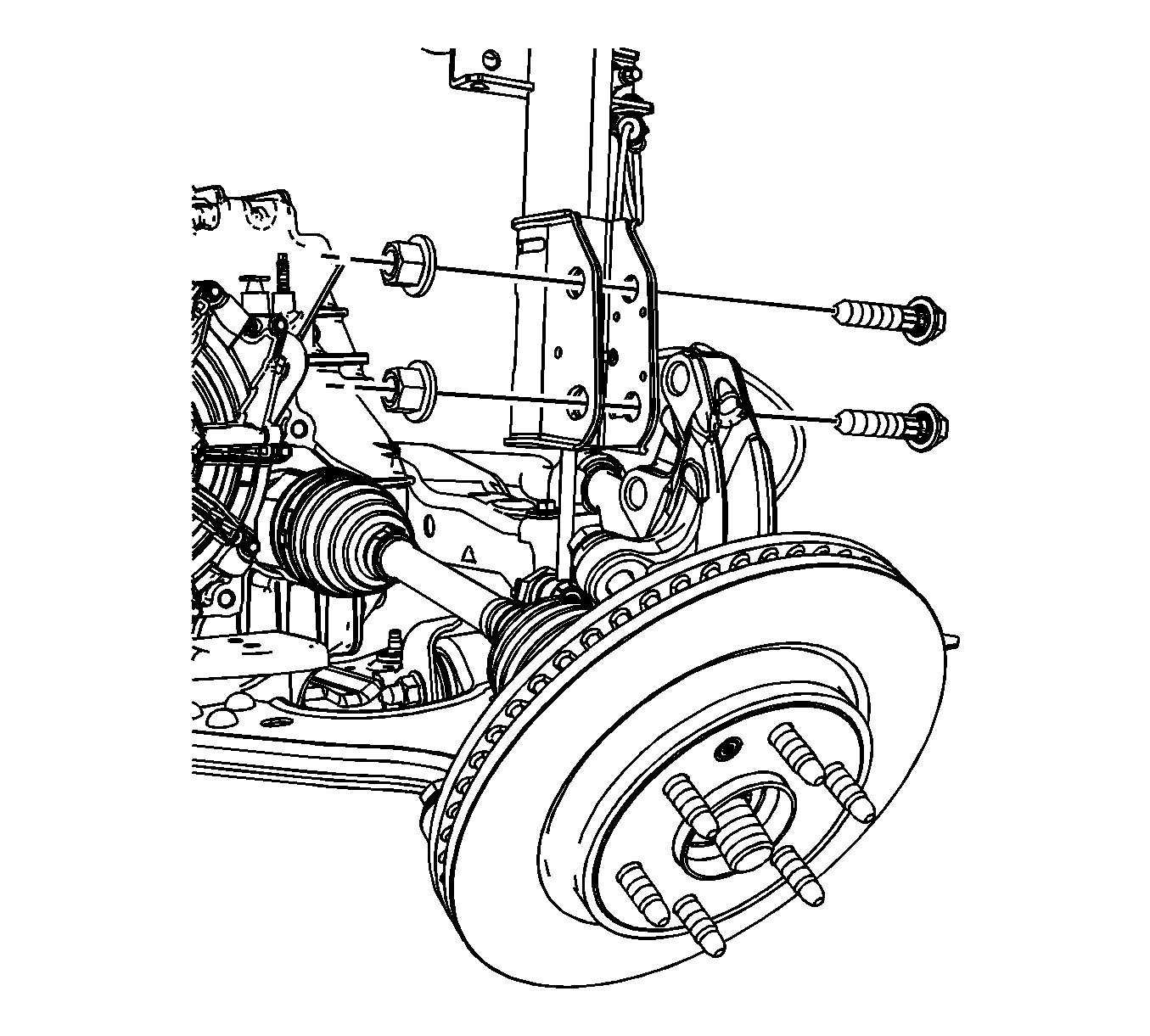

    4. Fig 3: Front Strut Mounting Bolts & Nuts
    GM1852014Courtesy of GENERAL MOTORS COMPANY
  4. Install the steering knuckle bolts and nuts and tighten the nuts to 195 N.m (144 lb ft).

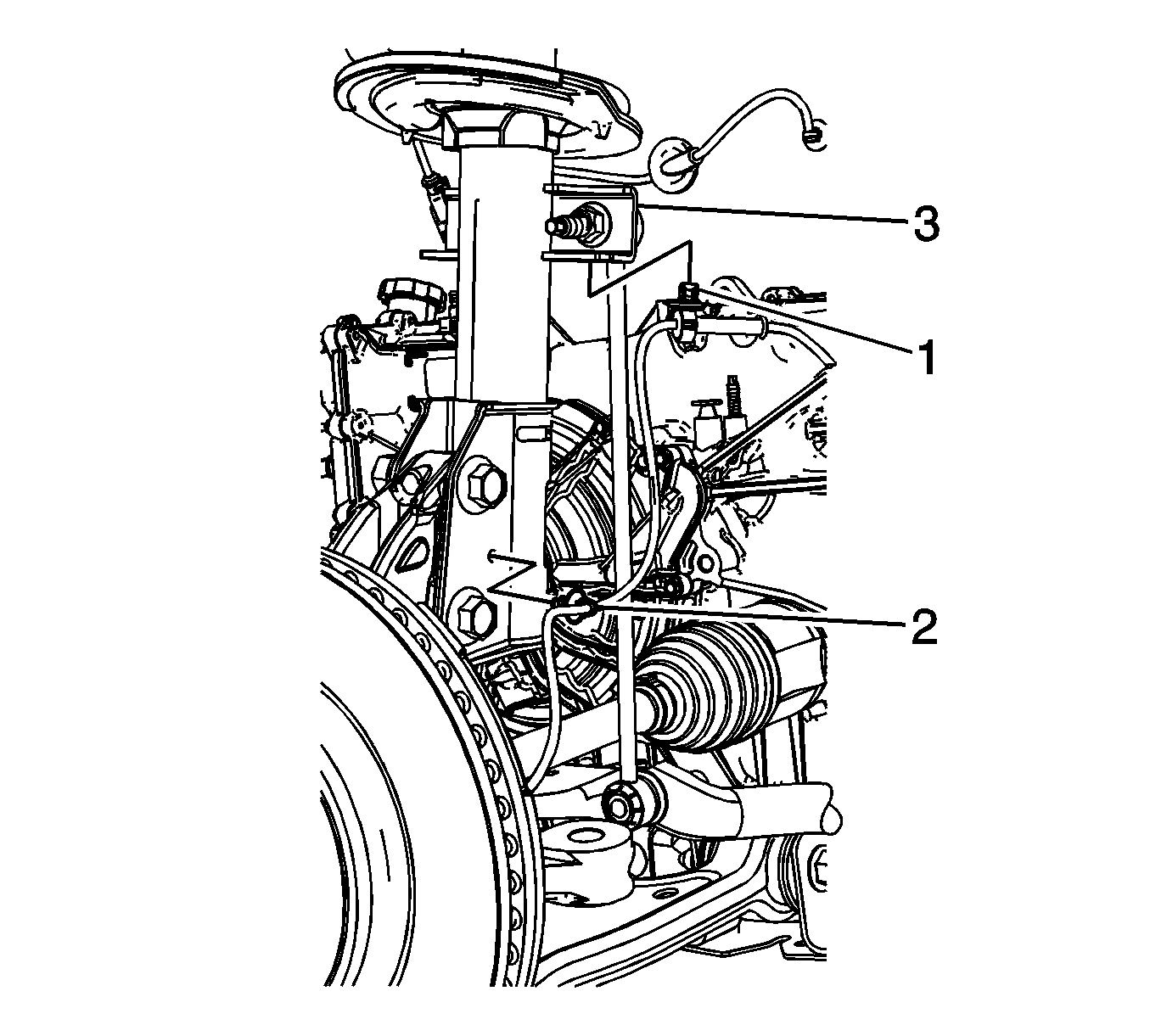

    5. Fig 4: Wheel Speed Sensor Wiring Harness & Front Strut
    GM1852040Courtesy of GENERAL MOTORS COMPANY
  5. Install the front wheel speed sensor wiring harness (1) and (2) to the front strut (3).
  6. Install Front Stabilizer Shaft Link at Strut Assembly - Stabilizer Shaft Link Replacement
  7. Lower the vehicle.
  8. Install Air Inlet Grille Panel - Air Inlet Grille Panel Replacement
  9. Measure and adjust the wheel alignment. Wheel Alignment Measurement
