Installation Procedure

    Fig 1: Washers, Wheel Stud & Hex Nut
    GM65317Courtesy of GENERAL MOTORS COMPANY
  1. Position a NEW wheel stud in the front wheel bearing and hub assembly flange (3).
  2. Install flat washers (1) and a suitable hex nut (2) on the wheel stud (3).

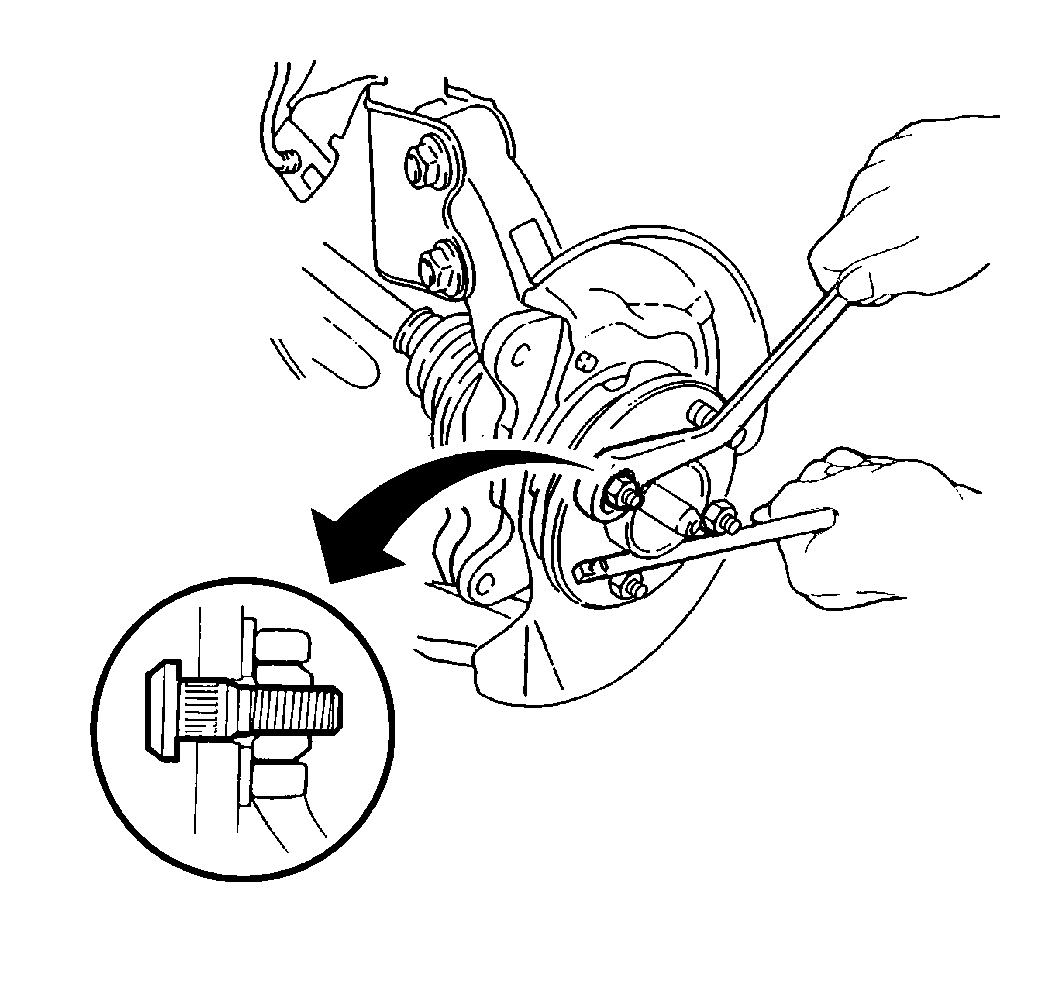

    3. Fig 2: Seating Stud Head Fully In Bearing/Hub Flange
    GM175950Courtesy of GENERAL MOTORS COMPANY
  3. Tighten the hex nut until the wheel stud head is fully seated in the front wheel bearing and hub assembly flange.
  4. Remove the hex nut and the washers from the wheel stud.
  5. Install Front Brake Rotor - Front Brake Rotor Replacement
