Installation Procedure

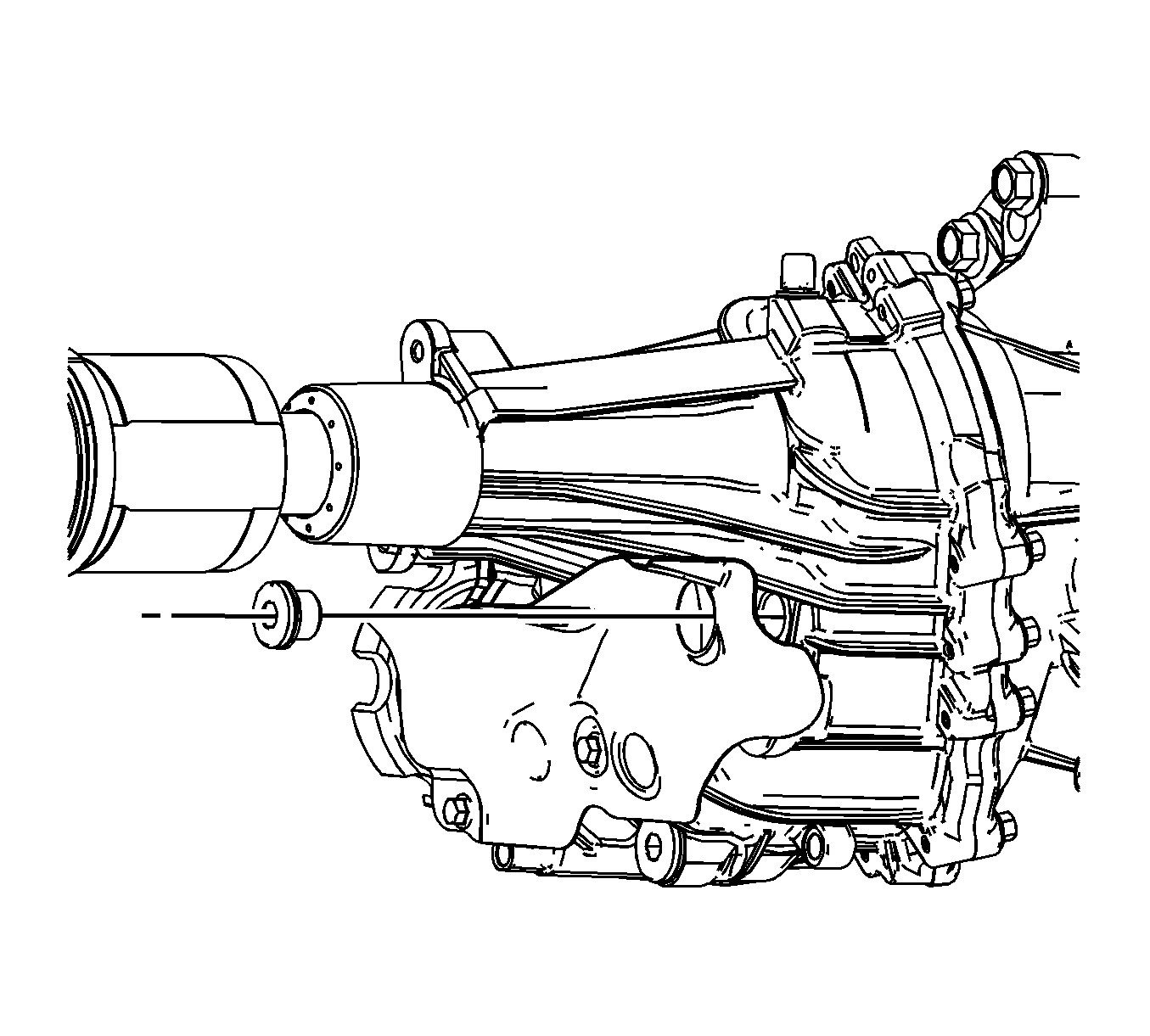

    Fig 1: Fill Plug
    GM1862826Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

  1. Install the fill plug and tighten to 39 N.m (29 lb ft).
