Ignition and Start Switch Replacement

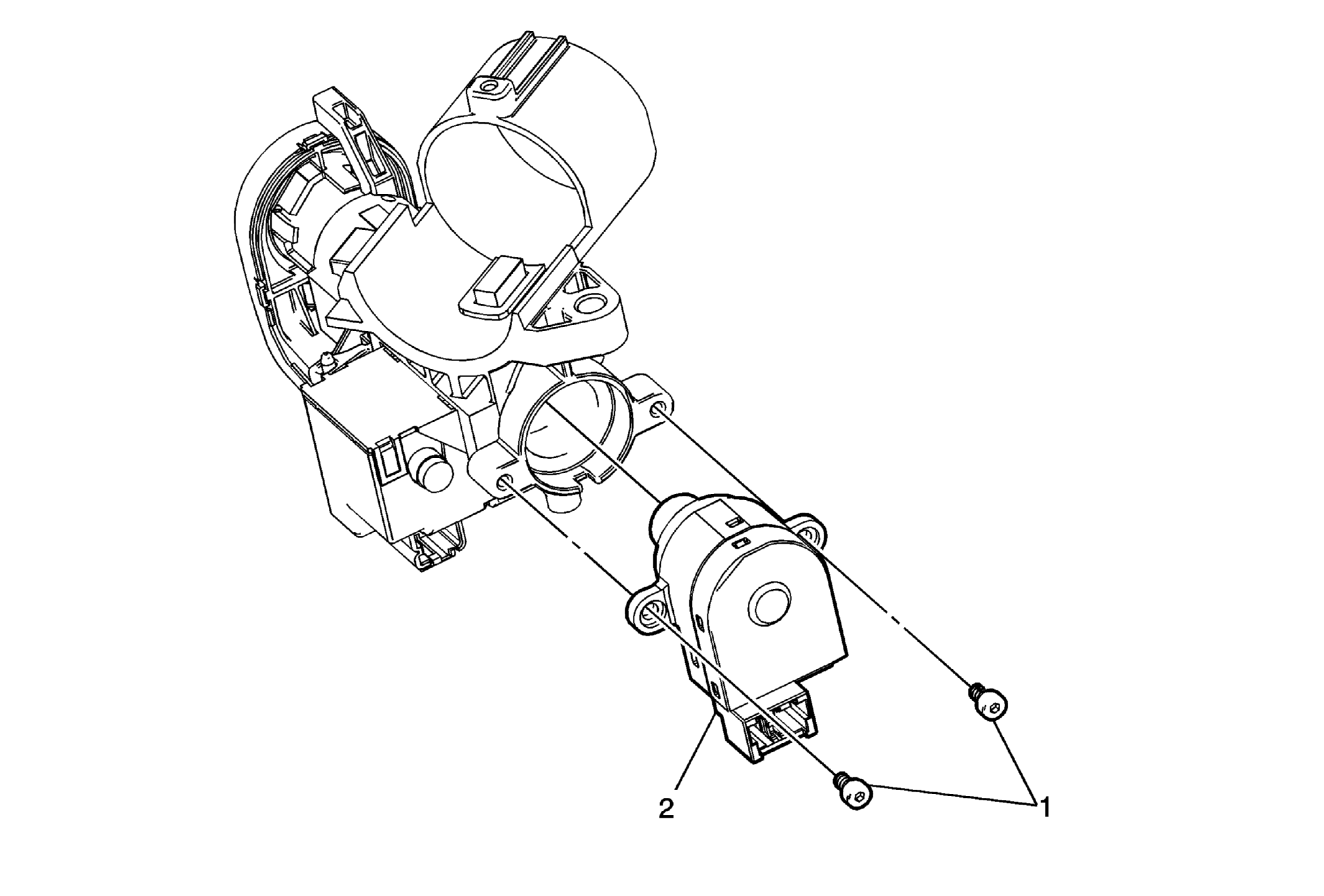

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the ignition and start switch housing. Refer to Ignition and Start Switch Housing Replacement . |
|
| 1 | Ignition and Start Switch Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Ignition and Start Switch |
