Low Frequency Rear Compartment Antenna Replacement

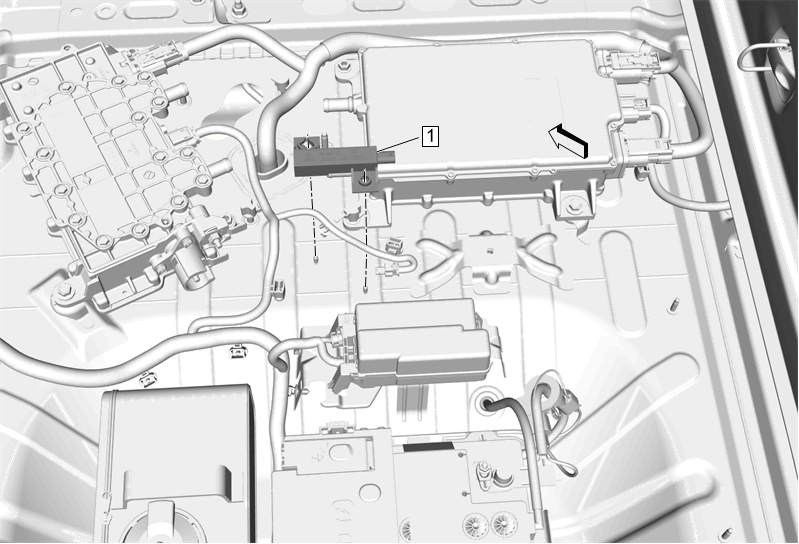

Fig 1: Low Frequency Rear Compartment Antenna
GM4116256Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Rear Compartment Floor Stowage Trim Compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement
1 Low Frequency Rear Compartment Antenna

Procedure

  1. Release the plastic retaining tabs.
  2. Disconnect the electrical connector.
