Installation Procedure

    Fig 1: Battery Negative Post Clamp And Nut
    GM4091057Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Clean any existing corrosion from the battery terminal and the battery cable end.

  1. Connect the battery negative post clamp (2).
    2. CAUTION:

    Fastener Caution

  2. Tighten the battery negative post clamp nut (1) to 9 N.m (80 lb in)

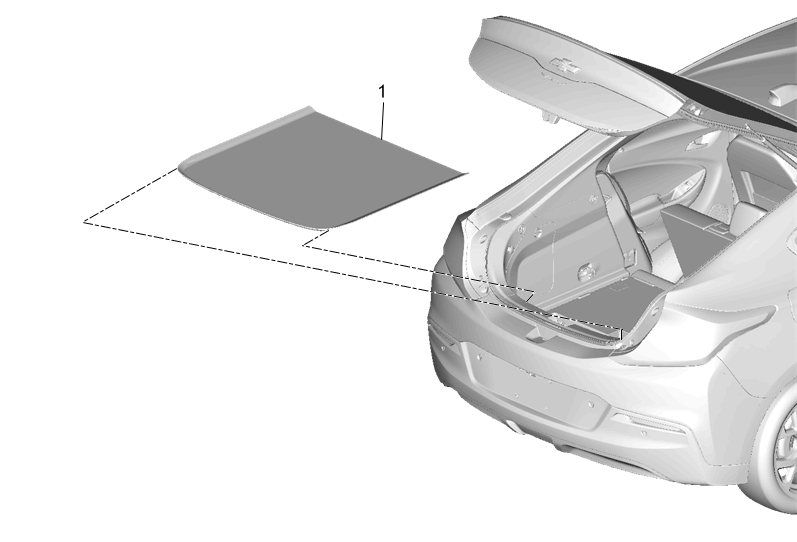

    3. Fig 2: Rear Compartment Floor Panel Trim
    GM4088948Courtesy of GENERAL MOTORS COMPANY
  3. Install Rear Compartment Floor Panel Trim (1)Rear Compartment Floor Panel Trim Replacement
