Battery State of Charge

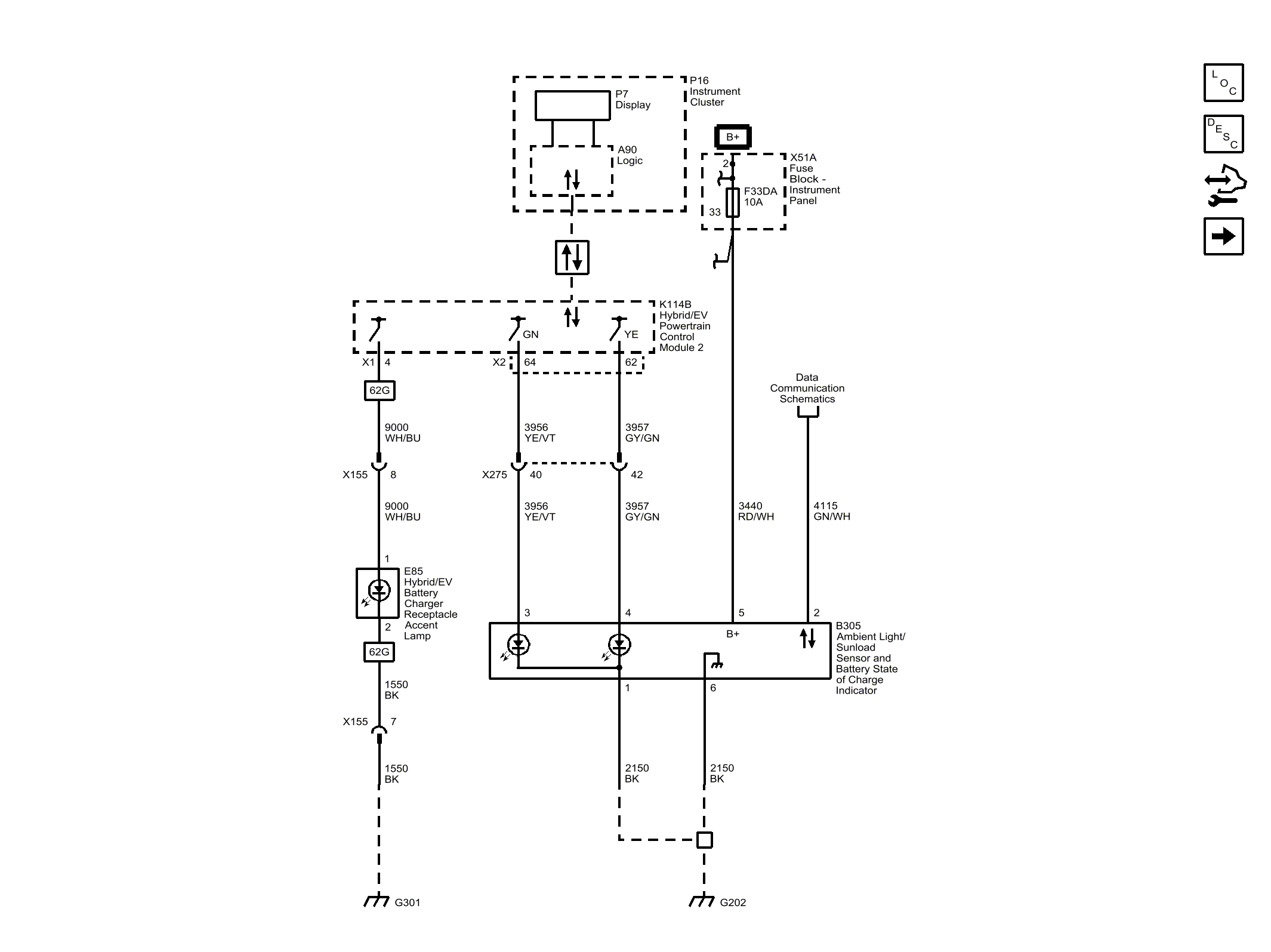

Fig 1: Battery State of Charge
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
