Rear Seat Shoulder Belt Guide Replacement

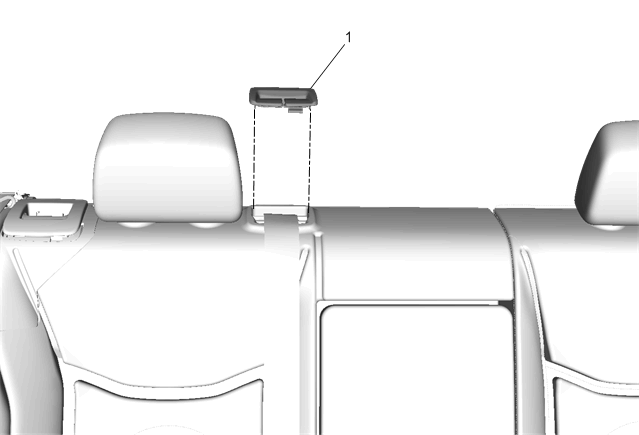

Fig 1: Rear Seat Shoulder Belt Guide
GM4088831Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Shoulder Belt Guide
Procedure
Position the belt through the slot in the guide.
