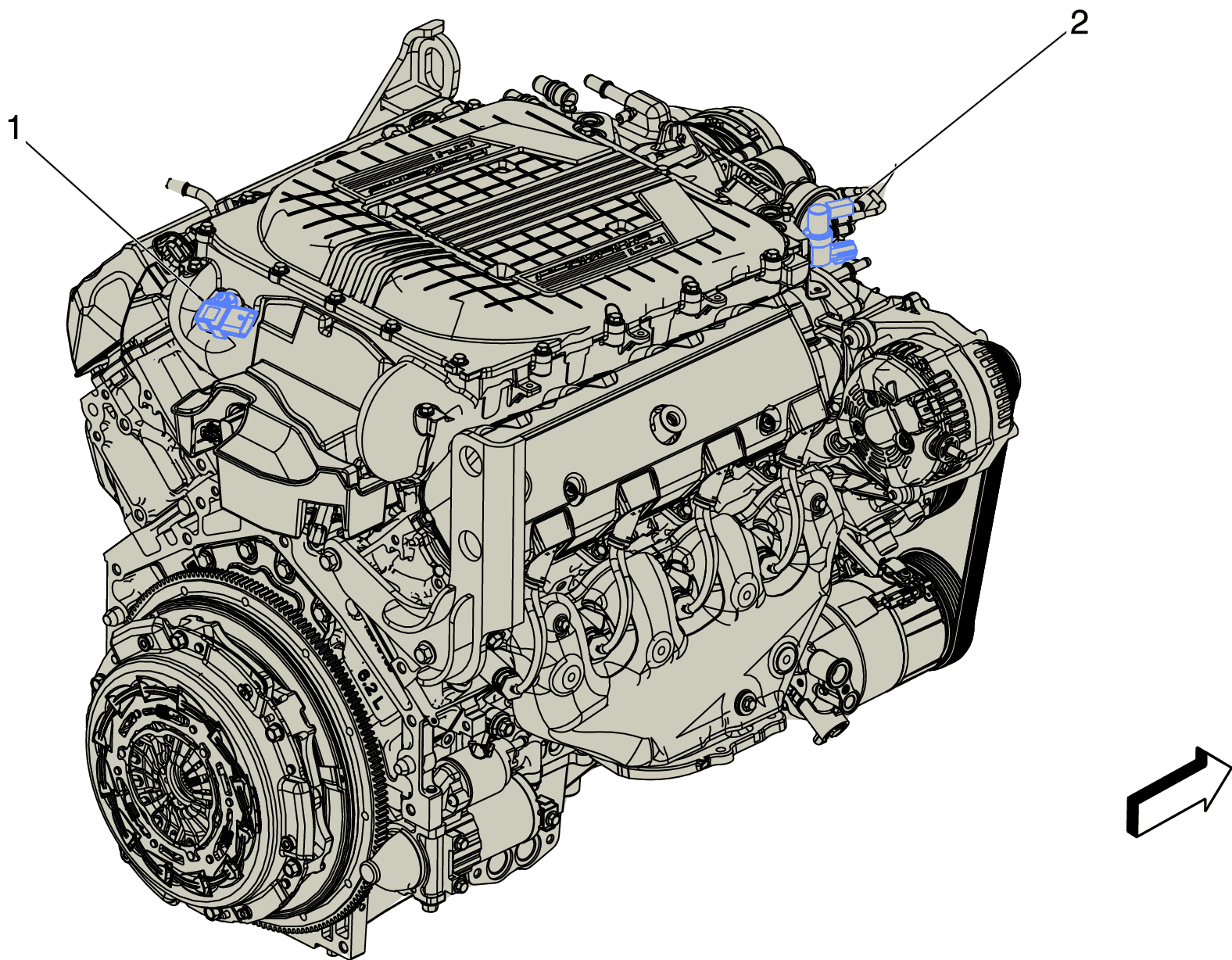

Engine Components - Right Side (LT4)

GM4745424Courtesy of GENERAL MOTORS COMPANY
Engine Components - Right Side (LT4)

Items
1. B65 Intake Manifold Pressure and Air Temperature Sensor (LT4) B65 Intake Manifold Pressure and Air Temperature Sensor (LT4)
2. Q36 Supercharger Bypass Solenoid Valve (LT4) Q36 Supercharger Bypass Solenoid Valve
