Front Side Door Window Inner Sealing Strip Replacement

Courtesy of GENERAL MOTORS COMPANY

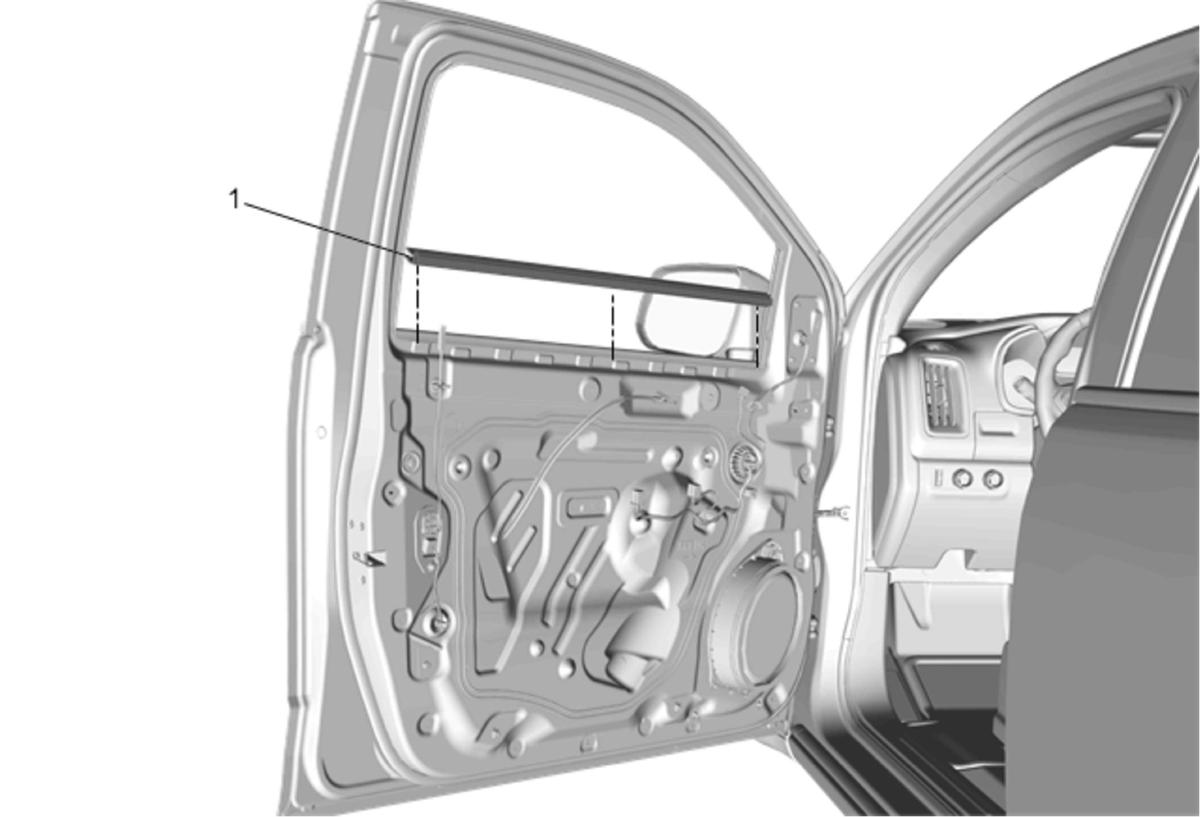

Callout	Component Name
Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .
1	Front Side Door Window Inner Sealing Strip Procedures Lift upward on the sealing strip end in order to unhook it from the door flange. Install the sealing strip to the flange of the door and push downward until fully seated. NOTE: Inspect the door window for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .

Front Side Door Window Inner Sealing Strip

Procedures

Lift upward on the sealing strip end in order to unhook it from the door flange.
Install the sealing strip to the flange of the door and push downward until fully seated.

NOTE:

Inspect the door window for proper operation before installing the door trim.
