Fuel Tank Heat Shield Replacement (LWN)

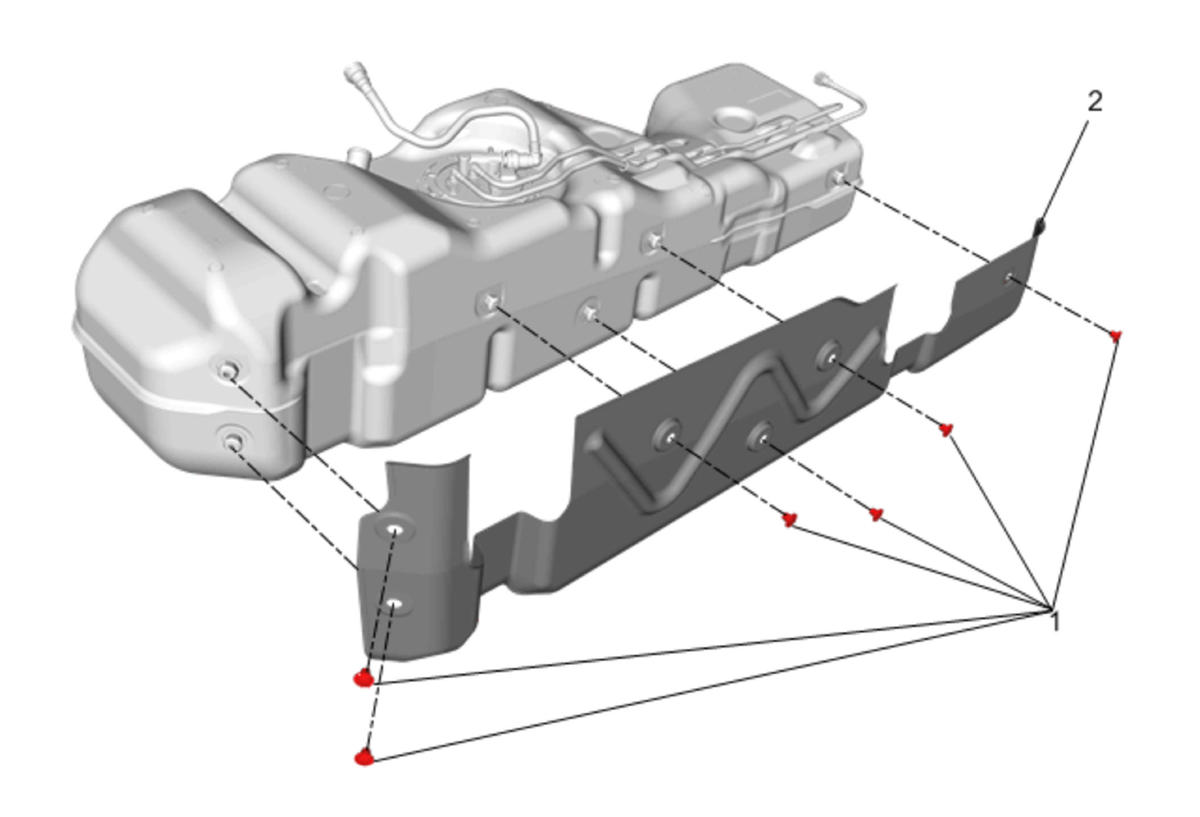

GM4121321Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Fuel Tank Replacement
1 Fuel Tank Heat Shield Retainer [6x]
CAUTION:

Refer to Fastener Caution
2 Fuel Tank Heat Shield
